TW Audio T20-90 passive speaker system

TW Audio T20-90

A compact, 30 cm slim 2 × 10"/1,4" horn top in an entirely symmetric construction, perfectly suitable for use in upright and in particular, crosswise applications.
Thanks to the sophisticated driver array and passive crossover the T20 reaches a constant direct dispersion, horizontally as vertically. Especially in cross operation, where conventional two-way loudspeakers are a mere compromise, the T20 shows its true potential. For example, when used lying down as front fill or drum fill, as
a center loudspeaker or even in club installations with particularly low ceilings.
The standard fitted 90 × 50 degree high range horn can easily be changed to a 60 × 40 degree variation, without the need for tools, when a more narrow, longer in distance application is required. If standing alone in full range operating mode with a subwoofer or together with vertical arrays, the T20 always finds its operational use thus proving to be a real multi talent.

Specifications:

• Drivers: 2 × 10" LF, 1 × 1,4" HF
• Frequency range: 60 – 18000 Hz
• Power capacity program / peak: 1000 / 2000 W
• Impedance: 8 Ohms (passive)
• Coverage (h x v): 90° × 50° oder 60° ×  40° HF-horn, exchangeable, rotatable
• Sensitivity 1 W / 1 m: 106 dB (passive)
• SPLmax / 1 m: 138 dB
• Connection: NL4 1±

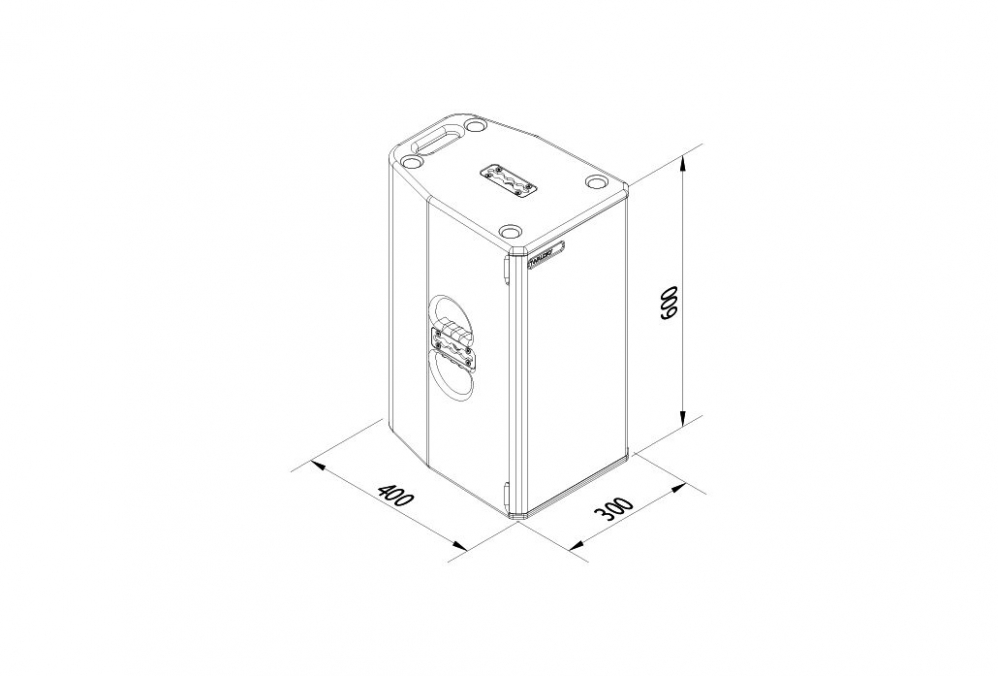

• Dimensions (H x W x D): 606 × 300 × 400 mm [23.86 × 11.81 × 15.75 in]
• Weight: 21,8 kg [48.06 lbs]
• Finish: Warnex texture paint
