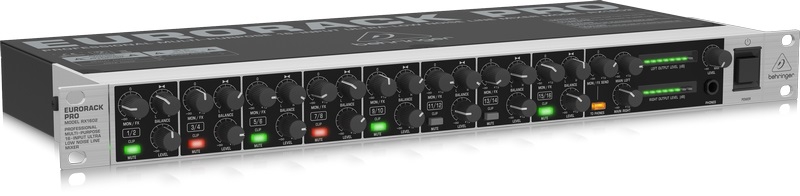

Behringer RX 1602 mixer

Behringer RX 1602

The rack-mountable RX1602 mixer enables you to effortlessly achieve premium-quality sound, thanks to 16 ultra-low noise, balanced, high-headroom line inputs, which can be used as 8 stereo inputs, 16 mono inputs – or any combination of both. This high level of versatility makes the RX1602 ideal for use as a multipurpose mixer for both your live performances and studio recording projects. The incredible RX1602 is perfect for sub-mixing multiple keyboards, sound modules and samplers – and is an absolute “must-have” for monitoring your multitrack recording projects! So easy to use and loaded with intuitive features, the EURORACK PRO RX1602 is an invaluable addition to any recording enthusiast’s or live performer’s toolkit.

Features:

• Extremely flexible multi-purpose sub-mixer, multi-track monitoring mixer and level translator
• 16 balanced high-headroom line inputs for individual stereo or mono use of each section
• Ultra-low noise ULN design, highest possible headroom, ultra-transparent audio
• Dedicated balance and level controls plus +4/-10 level selection per channel
• Monitor/FX Send control per section with global master send control for flexible monitoring, recording or effects applications
• Illuminated double-function “mute” button per section with additional “clip” indication provides comfortable input source/level information
• Monitor/FX signal assignable to phones output for added flexibility
• Highly accurate 2 x 7-segment LED level meters and individual level control for left and right main mix signal
• ¼ " TRS main mix outputs plus easily accessible headphones output on the front panel with dedicated level control
• High-quality detented rotary controls for long-term reliability
• Shielded toroidal power transformer for lowest noise interference
• High-quality component components and exceptionally rugged construction ensure long life

Specifications:

• 16 balanced inputs
• ULN technology
• LED display 2x7 characters
• output: linear, monitor, headphone
• Frequency response: 20 Hz - 20 kHz + 0 / -3 dB
• signal / noise ratio: <-97 dB
• Harmonic distortion: 0.0025% at 1kHz +4 dB
• Power supply: 230 VAC, 50 Hz
• Power consumption: up to 14 W
• Dimensions: 44.5 x 482 x 217 mm
• Weight: 2.3 kg
