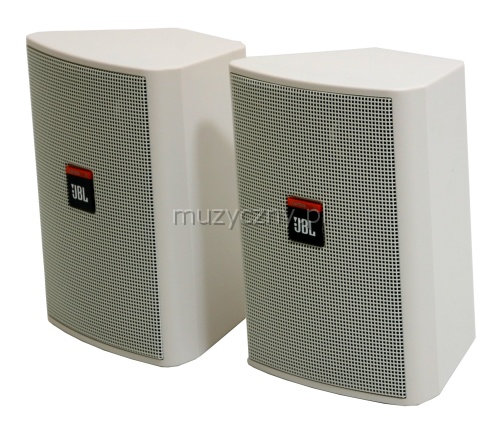

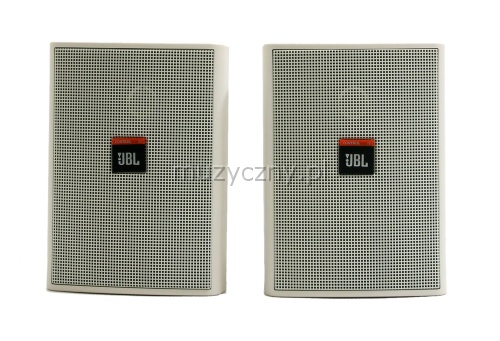

JBL Control 23 WH speaker

JBL Control 23 WH speaker
The Control 23 is the most compact of JBL Professional’s Control Contractor Series indoor/outdoor loudspeakers making it a perfect choice for patios, foyers, retail or other applications where foreground/background music and paging are required, with minimum aesthetic impact. The unique and global patent pending InvisiBall® mounting hardware is included in each system and makes short work of permanent installation. The InvisiBall mounting method adds the benefit of vertical rotation of up to 37° off-axis and horizontal rotation of up to 44° off-axis. Because InvisiBall adjustments are made through a hidden access behind the logo badge, the grill never needs to be removed and there exists a high degree of theft deterence as well. The Control 23 readily accepts a variety of paints and finishes to match any decor. Weather resistance is maximized by coating the woofer cone in polypropylene and terminating its circumference in JBL’s WeatherEdge™, a seamless, rubberized extension of the woofer surround that provides added protection to critical transducer elements. The polycarbonate tweeter diaphragm is reinforced with a thin film of titanium for added rigidity and endurance against sun, salt and moisture. Zinc plated grilles resist rusting.

Specifications:
• LF Driver: 88 mm (3.5 in) Polypropylene cone w/WeatherEdge
• HF Driver: 13 mm (.5 in) Titanium coated polycarbonate
• Nominal Impedance: 8 ohm
• Power Capacity: 50W Continuous Program
• Frequency Range: 85 Hz to 22 kHz (–10 dB)
• Sensitivity: 86 dB SPL*
• Crossover Frequency: 3.5 kHz
• Grille: 128-00153-60
• Low Frequency 88mm (3.5 in.) Cone
• DC Resistance: 6.4 ohm ±5% Copper Wire
