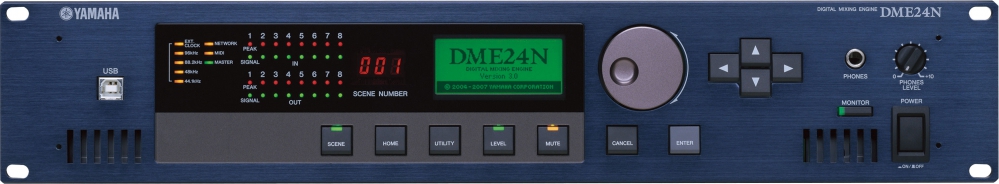

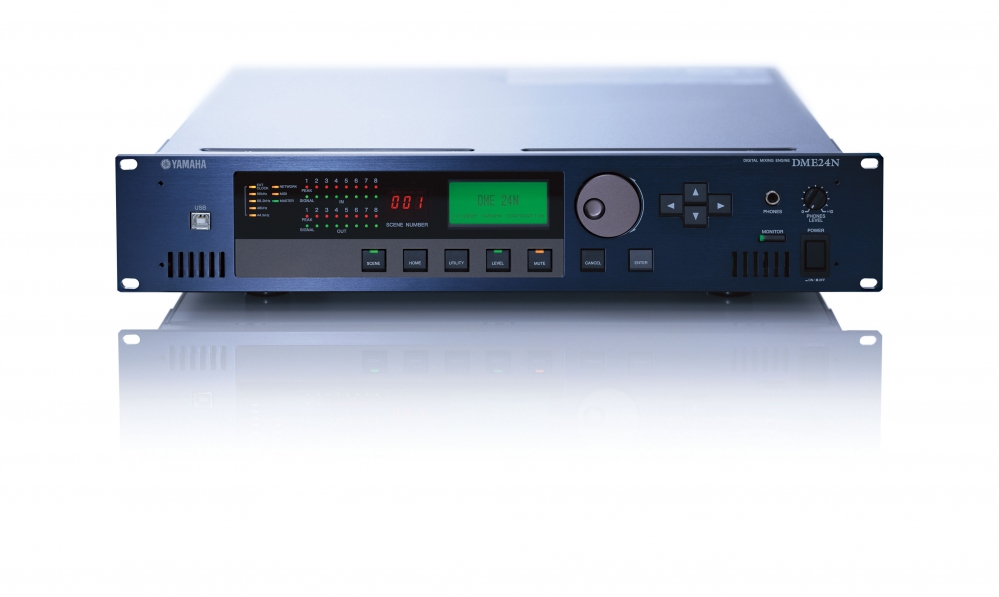

Yamaha DME24N

With unparalleled DSP power the Yamaha DME24N Digital Mixing Engines offer customizable audio system solution for a wide range of applications. This versatile mixing engine offer an impressive array of DSP components that can be combined and programmed to precisely accommodate just about any audio requirements - even in highly complex systems. Superior sound quality, generous DSP power, extensive scalability, and network capability - all supported by an intuitive interface - offer unprecedented freedom and efficiency for designing audio systems for installations and live sound.

• It's no secret that Yamaha digital mixing consoles are favored by leading professionals for live sound and studio recording applications. Yamaha DME mixing engines benefit from the same cutting-edge audio technology and attention to details that make a real difference in sound and performance. DME24N deliver faultless precision and reproduction fidelity with optimally-tuned 24-bit, 96-kHz digital processing, and the DME24N also features high-performance analog head amplifiers that equal the sound and quality of those found in top-line mixing consoles

• The DME24N has one expansion slot. Slot supports up to 8 analog inputs or outputs when fitted with precision A/D or D/A cards, or up to 16 channels of digital I/O in AES/EBU, ADAT, or TASCAM format. DME24N has a single slot plus 8 channels of built-in analog I/O for a total of 24 channels.
• Selected DME24N parameters can be directly controlled from the PM5D Digital Mixing Console for seamless, efficient operation. This capability is particularly useful in situations where the DME unit is located away from the optimum listening position, allowing parameters to be adjusted without having to leave the main console position

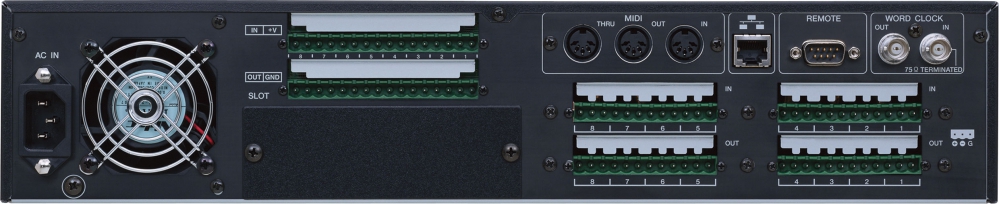

• The DME24N provides eight built-in analog inputs and outputs via Euroblock terminals on the rear panel. The analog inputs and outputs feature precision 24-bit, 96-kHz A/D and D/A converters that deliver top class audio performance

• DME24N offer a comprehensive selection of control interfaces for use with a wide variety of equipment. DME24N has eight to facilitate interfacing with other GPI-equipped devices. RS232C/RS422 ports allow direct connection to remote control units and computers, USB ports allow direct hookup with most modern computers, and MIDI terminals can be used for synchronization and control with musical instruments, sequencers, and lighting controllers
• Large, easy-to-read LCD display panels and a comprehensive selection of panel controls make the DME24N easy to operate. The front panel even includes a headphone jack and level control for convenient monitoring. The DME24N additionally provides signal and peak LEDs for its eight analog inputs and outputs

• The DME24N, as well as the ICP1 Intelligent Control Panel, can display scene and function names in 5 languages: English, Japanese, French, German, and Spanish. All three models offer a user-friendly interface for smooth operation regardless of the user's level of skill or experience
• A number of matrix mixers with up to 64 x 64 matrix mixing capability are included. There's also a Delay Matrix Mixer that provides delay parameters for each matrix point, enabling level control and time alignment in a single convenient component

• DME processors include everything needed for precision speaker tuning and room matching: versatile crossover processors with APF (All Pass Filter for phase control), horn EQ, delay, limiter functions and more

• The Program Ducker component features significantly longer attack and release times. Mono and stereo types can be flexibly configured to accommodate a wide range of applications. The Program Ducker offers all the versatility required for installations ranging from banquet halls to theme parks, while additionally providing camera tally link capability for broadcasting - a field in which the DME series is finding increasing acceptance

• The Ambient Noise Compensator component can be used to measure ambient noise levels and automatically and dynamically adjust the program level for optimum balance and intelligibility


Specification:

• Control parameters: via GPI connectors (8 inputs, outputs GPI) and the MIDI protocol
• Check with your PC via the RS, USB, Ethernet
• The number stored in your device configuration 16 (depending on the size of the configuration)
• The number of scenes for each configuration 990 (depending on the size of the configuration)
• Sampling frequency:
- Internal: 44.1 kHz, 48.0 kHz, 88.8 kHz, 96.0 kHz
- Outside: 39.69 ÷ 50.88 kHz , 79.39 kHz ÷ 101.76
• Signal delay < 0.5 ms @ fS = 96 kHz with a direct connection inputs and outputs
• GPI connector (IN, OUT + V, GND) 8 (DME24N) + V: max 6 mA
• BNC WORD CLOCK input activated, the output impedance of 75W
• 8 analog inputs mic - line connectors EURO
• Voltage gain of 60 dB
• Analog Outputs 8 line outputs on terminal EURO
• Total Harmonic Distortion 0.1% from input to output an analog signal +14 dBu
• Dynamics 106 dB
• TRS headphone jack located on the front panel
• Dimensions: 480x101x411
• Weight : 8kg
• Power: 230V, 75 W
