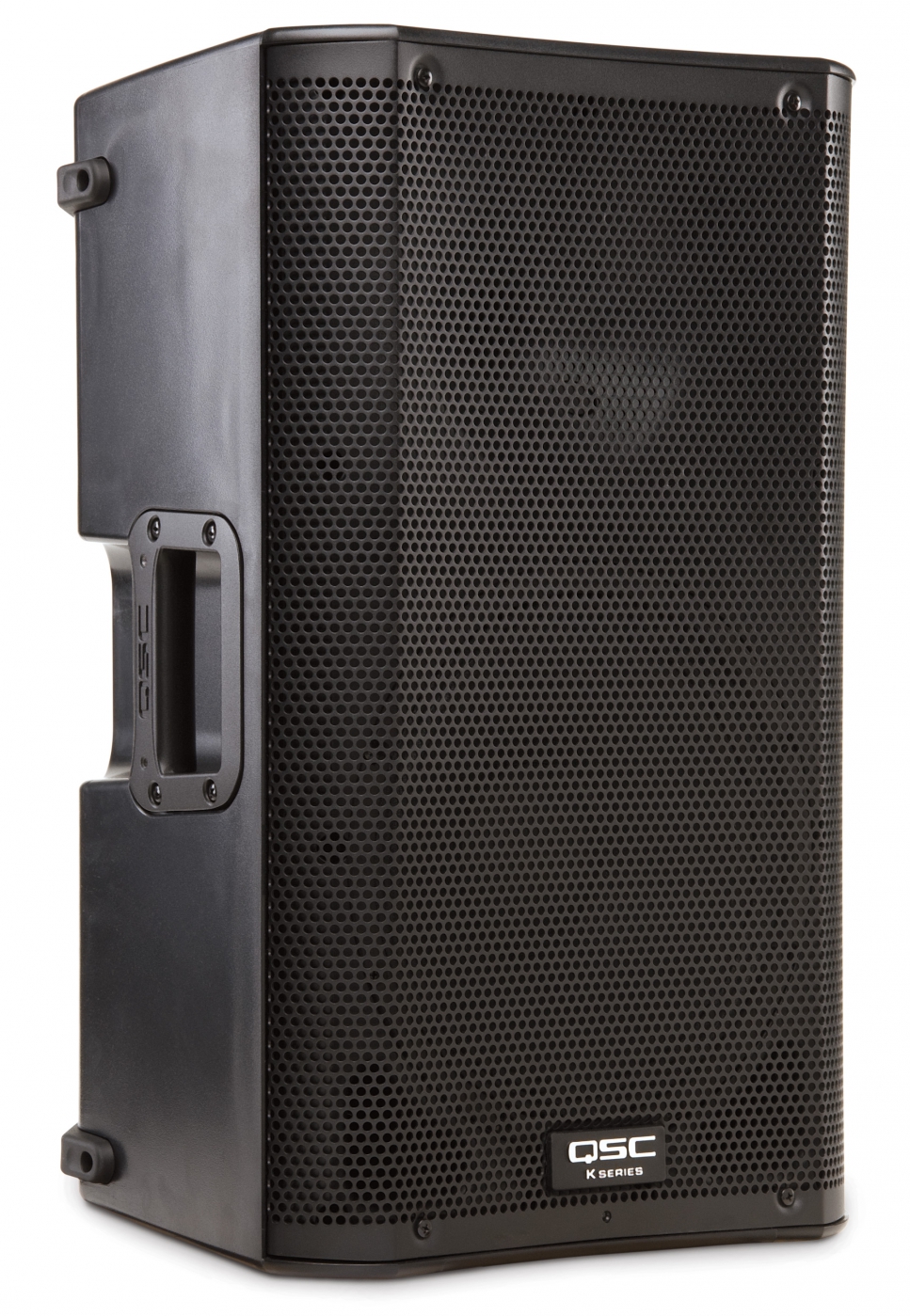

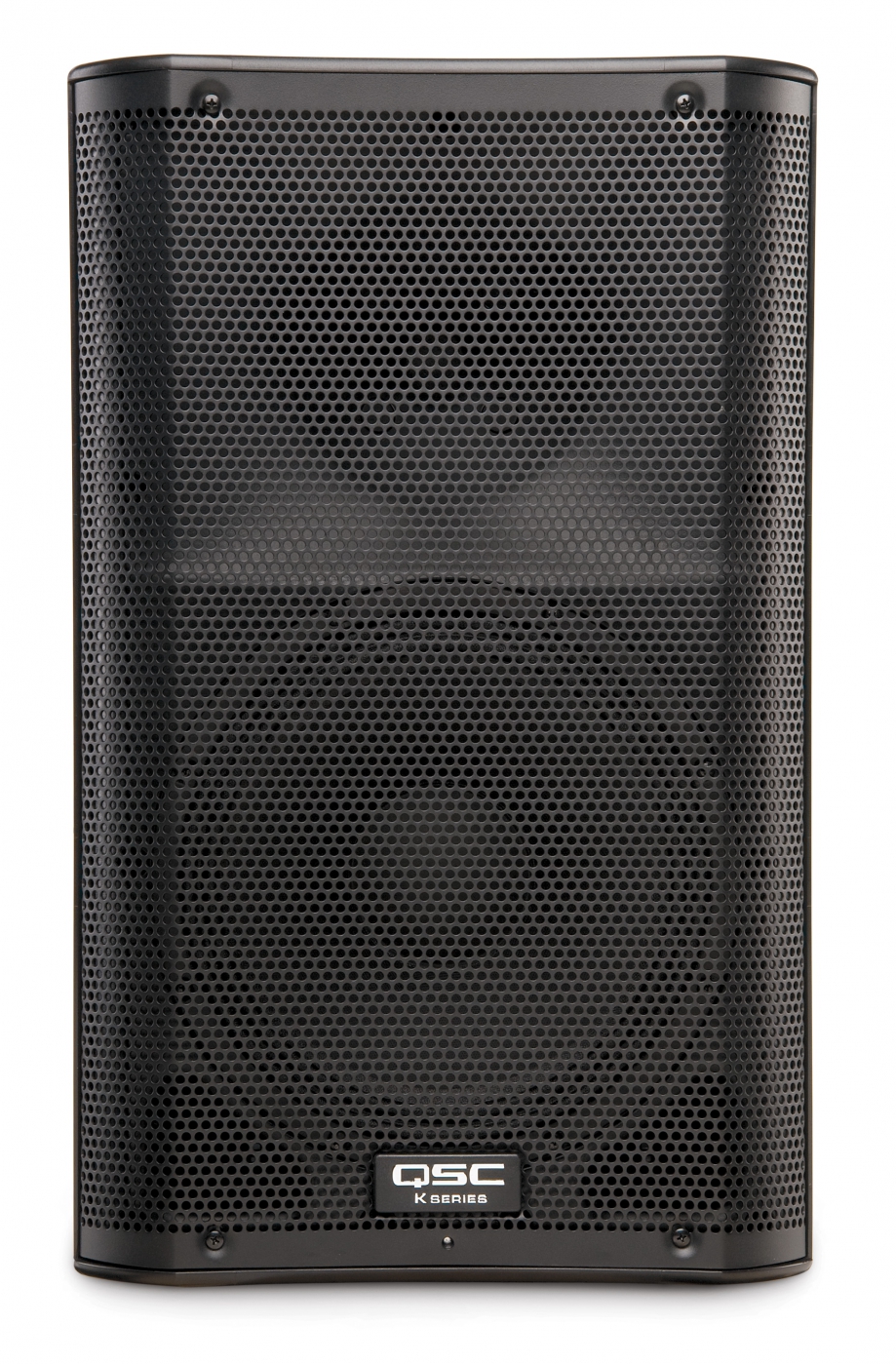

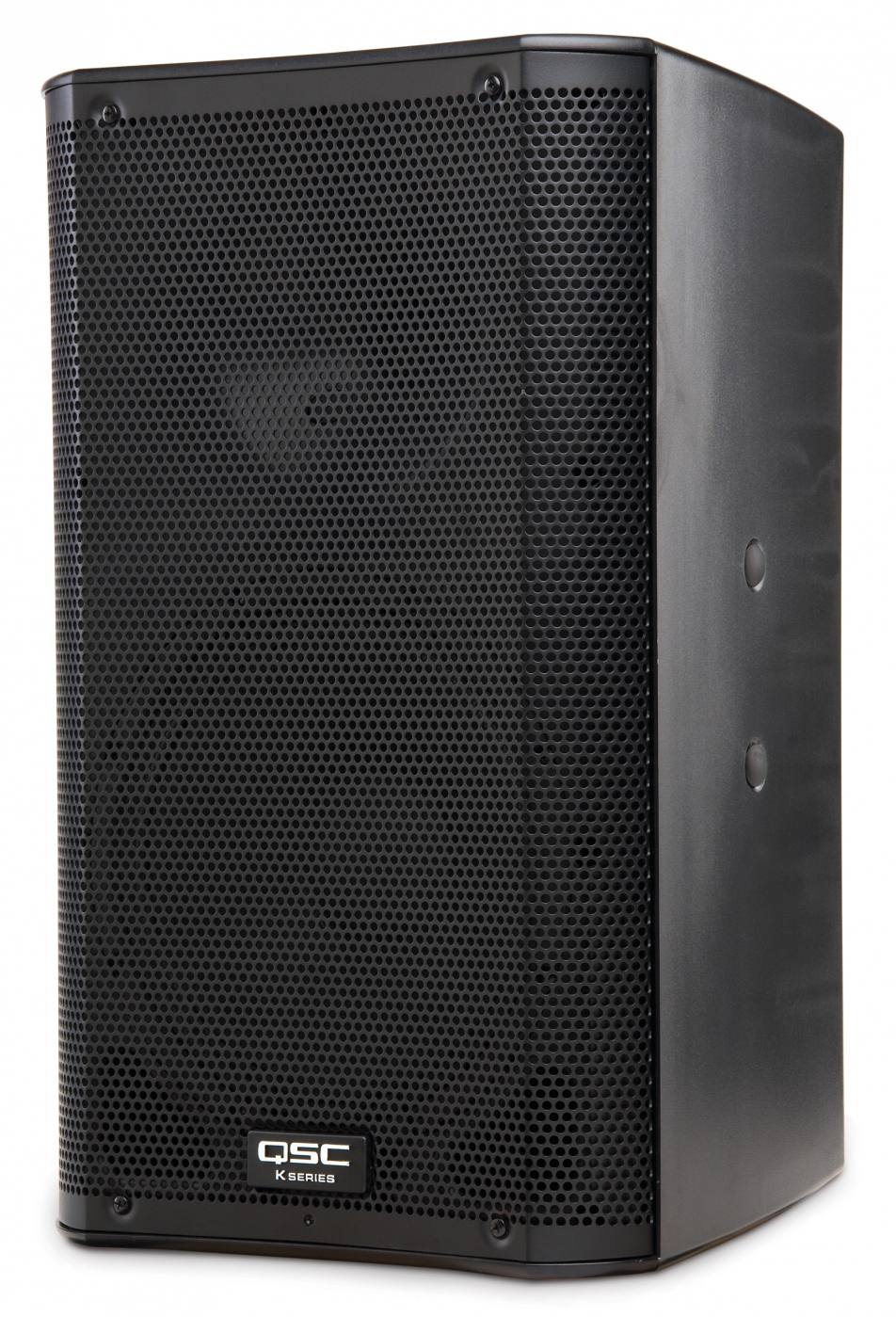

Qsc K10

QSC K10

Features:

• 0” Woofer; 1.75” diaphragm compression driver
• 90° conical DMT coverage
• Maximum SPL 129 dB peak
• Attractive and professional appearance
• Rugged ABS enclosures
• 16-gauge powder coated steel grille
• 1000-watt continuous Class D power modules in all models

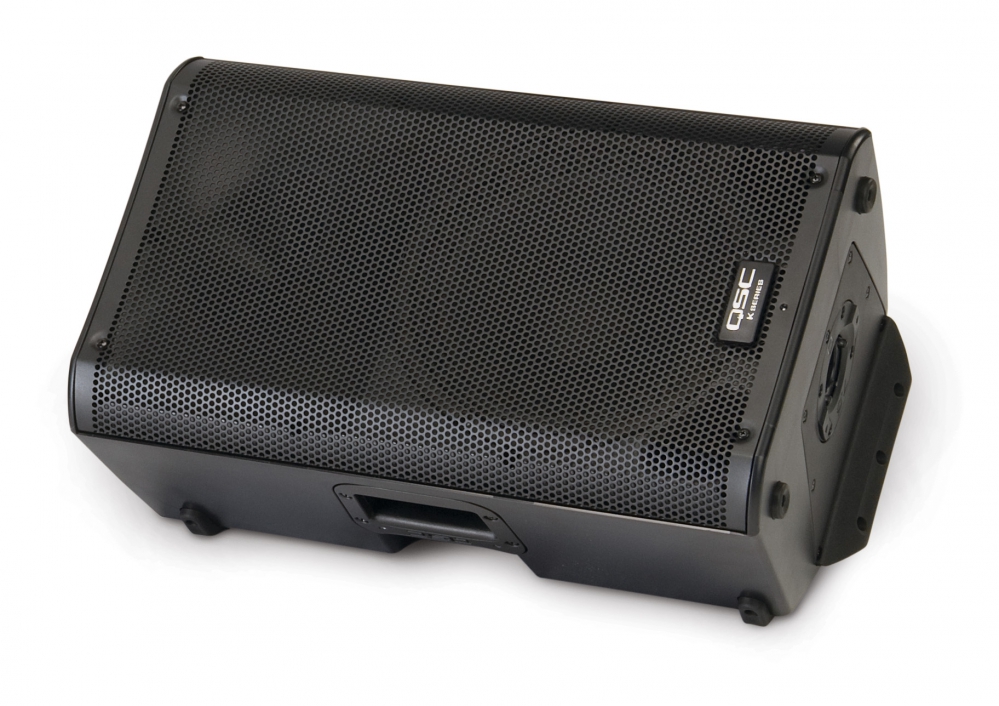

• Functions as a monitor wedge
• Comfortable ergonomic handles
• 35 mm pole sockets with Tilt-Direct
• M10 rigging points
• Eyebolt and yoke mount accessories available
• Onboard mixer with two combo XLR and ¼” inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output
• Extensive DSP enhances system performance:
- DMT (Directivity Matched Transition) provides for matched LF and HF coverage across the entire listening area, eliminating unnatural "dead" or "hot" frequency zones.
- Intrinsic Correction, first featured in our high-end line-array products maps 65–75 spatially-averaged measurements to IIR and FIR filters that actively adjust time, frequency and amplitude response to a maximally flat band pass target. The result is a speaker that behaves equally well across the entire sound field.
- DEEP and excursion limiting allow for extended low-frequency response by actively managing low-frequency transients without degradation of the underlying signal or adjacent frequencies.
- GuardRail protection protects both the amplifier module and your performance from unnatural and destructive clipping.

Specifications:

• Configuration: Multipurpose 2-way

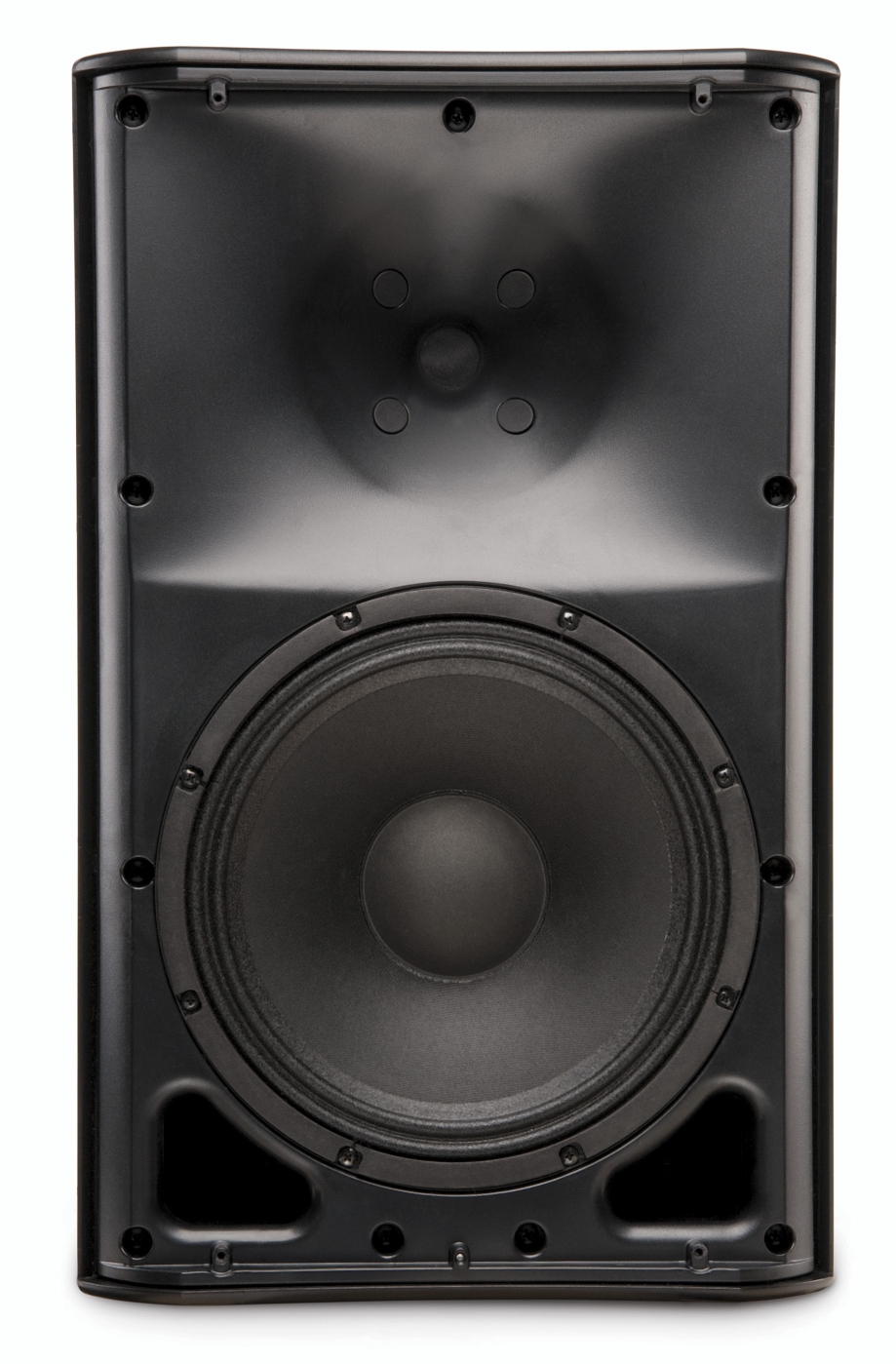

• Transducers:
- 10" cone transducer
- 1.75" diaphragm compression driver
• Frequency Response (-6 dB): 60 Hz - 18 kHz
• Frequency Range (-10 dB): 56 Hz - 20 kHz
• Nominal Coverage (-6 dB): 90° conical DMT
• Maximum SPL1: 129 dB peak
• Power Output2: 1000 W continuous Class D (500 W LF, 500 W HF / 2000 W peak
• Input Impedance: XLR / ¼": 40 kΩ balanced / 20 kΩ unbalanced
• XLR / ¼" MIC mode: 2260Ω balanced
• RCA: 10 kΩ
• Controls: Power, Gain A, Gain B, Mic/Line, LF Mode (Ext Sub/Norm/DEEP™), HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit)
• Indicators: Power, Signal A, Signal B, Standby, Limit, Mic

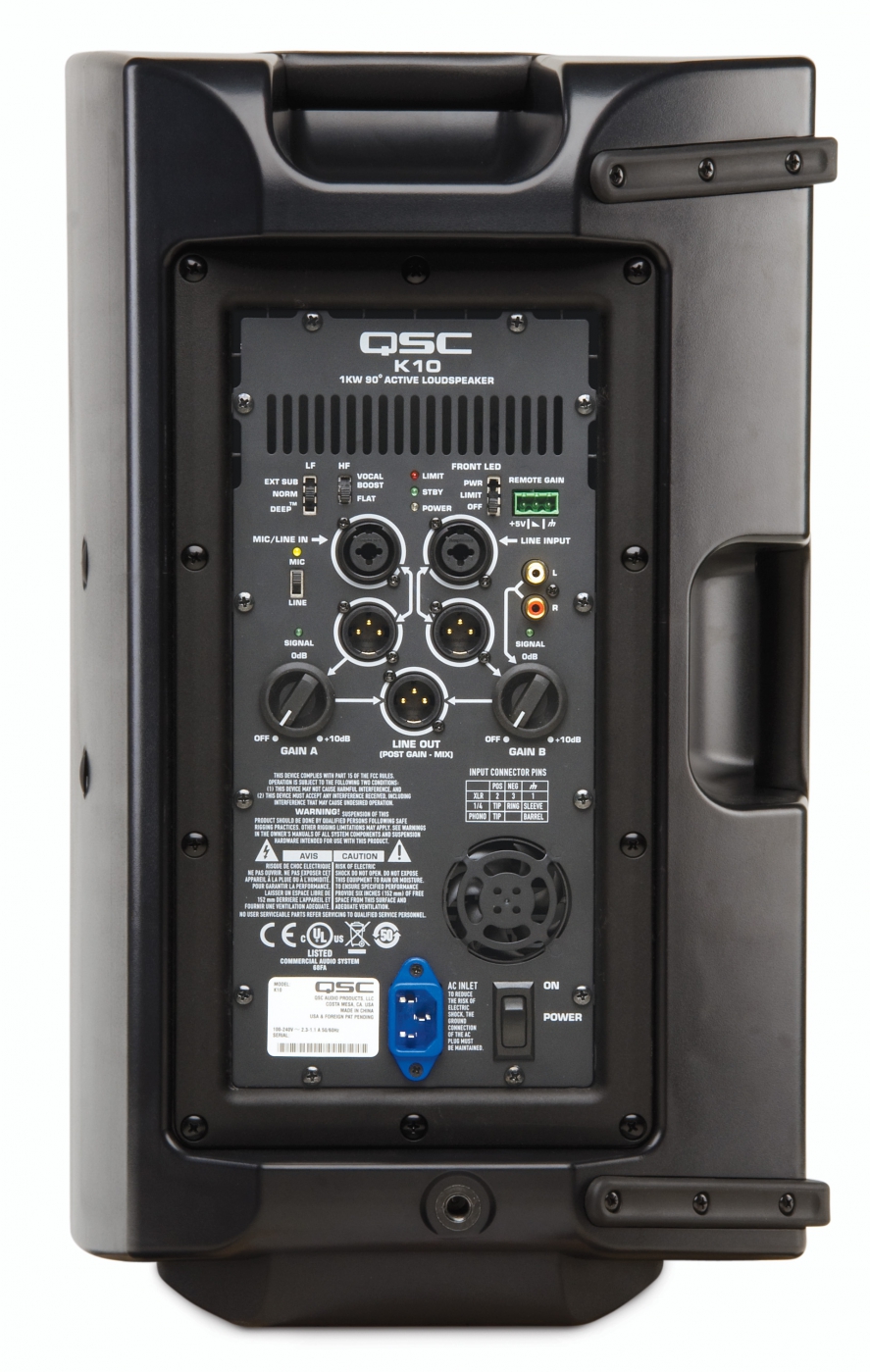

• Connectors: Balanced female XLR/¼" line/mic level input, Balanced female XLR/¼" line level input, Dual Balanced male XLR full range line level out , Balanced male XLR "mix" out, Stereo RCA line level input, Remote gain control, Locking IEC power connector
• Cooling: On demand, 50 mm variable speed fan
• Amplifier Protection: Thermal limiting, output overcurrent, overtemperature muting, GuardRail™
• Transducer Protection: Thermal limiting, excursion limiting
• AC Power Input: Universal power supply 100–240 VAC, 50 to 60 Hz
• AC Power Consumption:
- (1/8 of full power) 100 VAC, 2.3 A
- 120 VAC, 2.01 A
- 230 VAC, 1.13 A
• Material: Impact resistant ABS
• Finish: Black paint
• Grille: Rugged powder-coated steel
• Dimensions (HWD) inches: 20.4 × 12.6 × 11.8
• Dimensions (HWD) mm: 519 x 320 x 300
• Weight (Net): 32 lb / 14.5 kg
