Art MX622 6 Ch (1U) Stereo Mixer

Art MX622

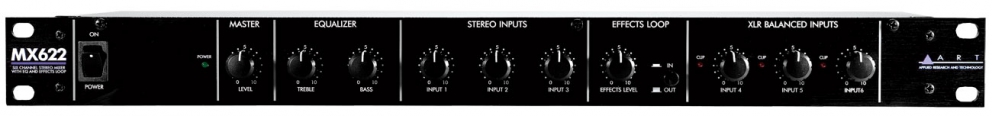

The MX622 is a versatile mixer combining three balanced microphone or line level inputs with three stereo line inputs into a single stereo line level mix. Essential features include external effects loop (mono send with stereo return), independent stereo record outputs, stereo TRS 1/4-inch balanced outputs and full range master two-band equalizer. The internal power supply and single rack-space 19-inch rack mount format allows for easy installation and reliable long-term operation.

Specifications:

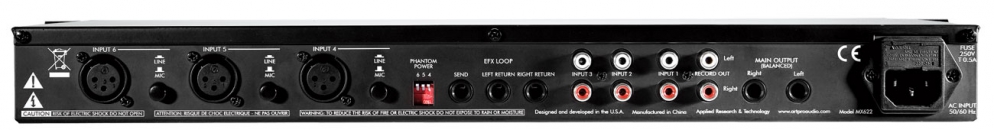

• Input Connections: XLR-F balanced (x3)
• 1/4-inch unbalanced (x2)
• 3 pairs stereo RCA (6 total)
• Output Connections: TRS balanced 1/4-inch (x2)
• 1/4-inch unbalanced (x1)
• RCA (x2)
• Input Impedance: 600/22K Ohms mic/line XLR inputs / 10K Ohms RCA inputs / 22K Ohms 1/4-inch effects returns
• Output Impedance: 50 Ohms 1/4-inch main outputs / 1K Ohms RCA record outputs / 100 Ohms effects output
• Total Harmonic Distortion: .01% Typical
• Signal to Noise Ratio: > 90dB typical
• Maximum Input Level: -10dBu/+20dBu mic/line XLR inputs / +20dBu RCA line inputs / +20dBu Effects inputs
• Maximum Output Level: +24dBu balanced main outputs / +20dBu RCA record outputs / +20dBu Effects output
• Maximum Gain: 56dB/26dB mic/line / 26dB RCA inputs
• Phantom Power: +15Volts DC (regulated / low noise)
• Equalizer Range: +/-12dB @ 100Hz & 10kHz
• Dimensions: 1.75"H x 19"W x 6.0"D (44.5mm x 483mm x 152mm)
• Weight; 6.2 lbs (2.8 kg)
