LD Systems LAX 8D analogue mixer

LD Systems LAX 8D analogue mixer


8 Channel Mixing Console with integrated DSP effects processor.
The LAX series mixers have a natural sound with outstanding parameters and optimal user-friendliness as well as maximum dependability in day-to-day operation on the road. This makes them the perfect, affordable solution for a broad range of applications. Whether live on stage, home/project recording or installations of all kinds such as community centers, churches, and bars/bistros, the LAX series offers the right solution for many applications. Continuous on-site quality control according to ISO9001 ensures high dependability and high quality.
The mixing console has a total of eight (8) input channels: 4 MIC inputs (mono) and 2 line inputs (stereo).

• Type: Live
• Channels: 8

Mono Channels
• Mono Mic and Line Input Channels: 4
• Mono Mic input connectors: 6.3 mm TRS, XLR
• Channel Inserts: 4
• Channel Insert Connectors: 6.3 mm TRS
• Mono Mic Input Type: electronically balanced
• Mono Mic Input Frequency Range: 10 - 45.000Hz
• Amplification Range mono Mic Input: 0 - +40dB
• Mono Mic Input Input THD-N: 0,005 %
• Mono Mic Input Impedance: 3.600Ohm(s)
• Mono Mic Input S/N Ratio: 102dB
• Mono Line Input Type: electronically balanced
• Mono Line Input Frequency Range: 10 - 45.000Hz
• Amplification Range mono Line Input: -25 - +15dB
• Mono Line Input Input THD-N: 0,005 %
• Mono Line Input Impedance: > 10000Ohm(s)
• Mono Line Input S/N Ratio: 102dB
• Mono Channel Equalizer Low: +/- 15 dB @ 80 Hz
• Controls Mono Mic and Line Input Channels: 3-band EQ (High, Mid, Low), Gain, Channel Fader, pan, Mute / Alt 3 - 4 Switch, AUX 1 switchable Pre/Post, Low Cut (75 Hz), PFL / Solo Switch, AUX 2 (DFX) Post
• Phantom power: 48 V DC switchable

Stereo Channels
• Stereo Line Input Channels: 4
• Stereo Line Input Connectors: 6.3 mm TS
• Stereo Line Input Type: unbalanced
• Stereo Line Input Frequency Range: 10 - 45.000Hz
• Stereo Line Input Input THD-N: 0,005 %
• Stereo Line Input Impedance: > 10000Ohm(s)
• Stereo Line Input S/N Ratio: 102dB
• Stereo channel equalizer bass: +/- 15 dB @ 80 Hz
• Controls Stereo Line Input Channels: Balance, Channel Fader, 3-band EQ (High, Mid, Low), AUX 2 (DFX) Post, AUX 1 Pre

Main Section:
• AUX / Effects Send Channels: 2
• AUX / Effects Send Connectors: 6.3 mm TS
• Stereo AUX Return Channels: 2
• Stereo AUX Return Connectors: 6.3 mm TS
• Stereo Tape Out Channel: 1
• Stereo Tape Out Connectors: RCA
• Stereo Tape In Channel: 1
• Stereo Tape In Connenctors: RCA

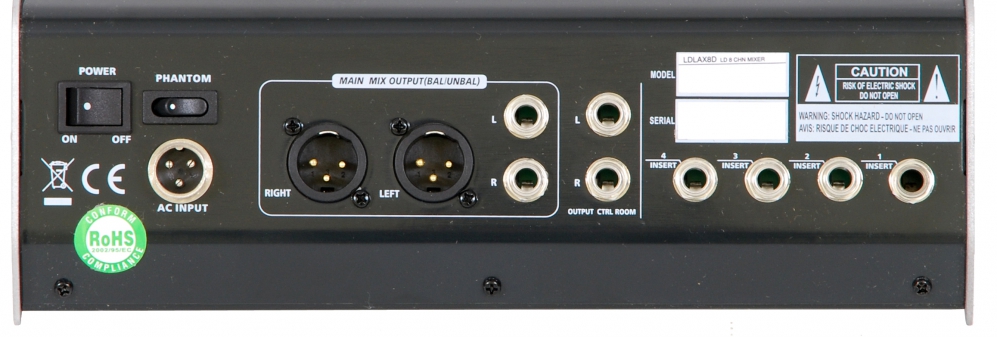

• Balanced Stereo Main Out: 1
• Balanced Stereo Main Out Connectors: XLR
• Balanced Stereo Main Out Impedance: 120Ohm(s)
• Max. Balanced Stereo Main Out Level: +22
• Unbalanced stereo Main Outputs: 1
• Unbalanced stereo Main Output Connections: 6.3 mm TS
• Unbalanced Stereo Main Out Impedance: 120Ohm(s)
• Max. Unbalanced Stereo Main Out Level: +22
• Stereo Control Room Out: 1
• Stereo Control Room Out Connectors: 6.3 mm TS
• Headphones ouput: 1
• Headphones outputs: 6.3 mm TRS
• Digital Effects Processor: yes
• Number of Presets: 100
• Footswitch Connector DFX Mute: 6.3 mm TS

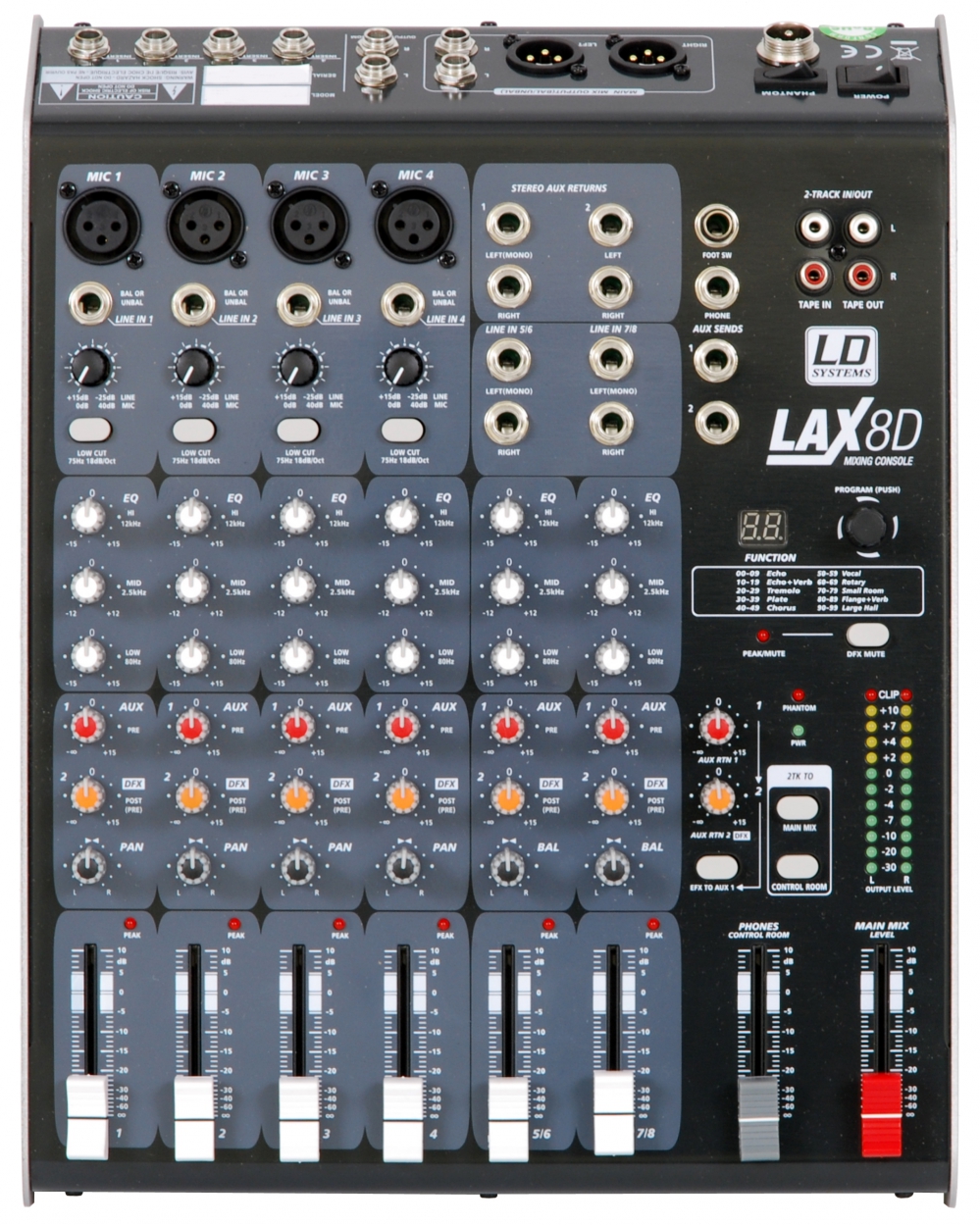

• Main section controls: Phantom Power, AUX 2 (DFX) Return Volume, master fader, 2-track Assignment (Main, Contr. Room), AUX 1 Return Volume, DFX Preset Alpha Dial, EFX to AUX 1 Switch, DFX Mute Schalter, mains switch (on/off), Phones / Control Room Volume
USB media player: no
• Display: DFX Peak / Mute, Channel Peak, Phantom Power, 12-segment Level Meter, Power

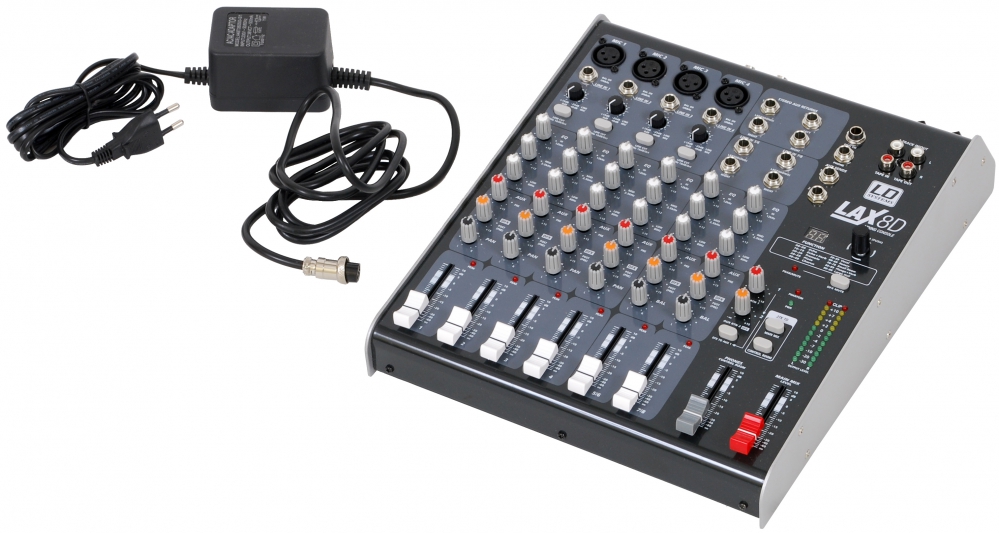

• Operating voltage: External Power Supply Prim. 230 V AC 50 Hz Sec. 2 x 18 V AC 2 x 500 mA
• Width: 275mm
• Height: 80mm
• Depth: 353mm
• Weight: 3,89kg
