Reloop IQ 2 MIDI DJ mixer

Reloop IQ 2 MIDI DJ mixer

2-channel-MIDI-mixer for scratch artists.

With the IQ2 MIDI Reloop presents the latest mixer from the trend-setting IQ series. Compared to its predecessors the IQ2 MIDI is completely digital with the best, noise-free sound characteristics and a 4x4 multichannel USB audio interface with 24 bit/96 kHz studio quality.

Features
• 2+1-channel pro DSP mixer with USB terminal
• Best, noise-free sound: internal signal processing is completely digital
• Integrated multichannel USB audio interface: Hi-speed 4x4 In/Out interface with 24 bit/96 kHz sound quality
• Full MIDI control: All elements are MIDI compatible
• MIDI flex: Crossfader and FX unit can be used in MIDI or audio mode
• Lowest latency: Incl. professional ASIO/CORE audio drivers
• Traktor Ready: Plug''n''Play compatible with Traktor DJ software
• Digital matrix input: All inputs, as well as all MIDI channels, can be flexibly routed to the channels
• Master cue: Cuts and scratches can be monitored via headphones
• XF flex: Reversible crossfader
• 2-battle-mode: Via loop-in a second mixer or DVS sytem can be looped in
• Full Duplex USB port for feeding and emitting digital sound signals
• USB signals can be played via mixer and recorded on a computer simultaneously
• 3 innovative crossfader effects (LoopX, PitchX, StutterX) with manual or automatic cross-fade
• Freely assignable DSP effect unit (Echo, Auto Pan, Flanger, Manual Filter, Auto Filter, Reverb, Trans, Pitch Shifter)
• Manual filter infinitely adjustable from LPF - HPF
• Time regulation for X parameter, dry/wet regulation for Y parameter (as mini fader)
• Manual beat and time assignment of effects with 5 buttons
• Automatic and manual beatcounter
• Effect send/return for both channels
• Excellent sound characteristics due to Premium Sound Architecture (PSA)
• Top panel with rubber paint finish, low panel made of brush-finished aluminum
• Freely assignable Long Life TCT crossfader (45 mm) with adjustable curve
• Long Life linefader (60 mm) with adjustable curve
• Fader-start play for linefaders or crossfader
• Large LC display for all effect and BPM parameters
• 3-band equalizer for channels 1 and 2
• 2-band equalizer and talkover for microphone
• Master volume with especially large vintage potentiometer

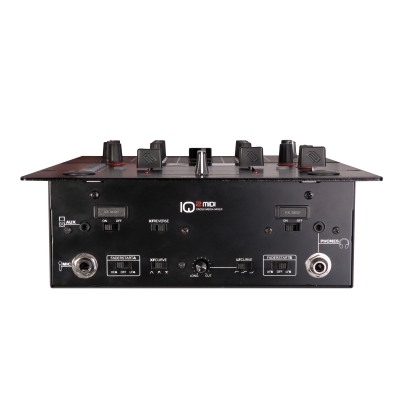

• iPod friendly aux input on the front side
• 2 headphones connections (3.5 and 6.3 mm)
• Symmetrical (6.3 mm jack) as well as asymmetrical (RCA) outputs
• PC & Mac compatible

Technical Data
Minimum system requirements PC:
• Windows XP (SP3), Win7 (32 bit/64 bit)
• At least Pentium III / Intel Core Duo, 1 GHz (NO AMD processors recommended!)
• At least 512 MB RAM

Minimum system requirements Mac:
• OS X 10.5/10.6
• Intel Core Duo family (only Intel MACs)
• at least 512 MB RAM

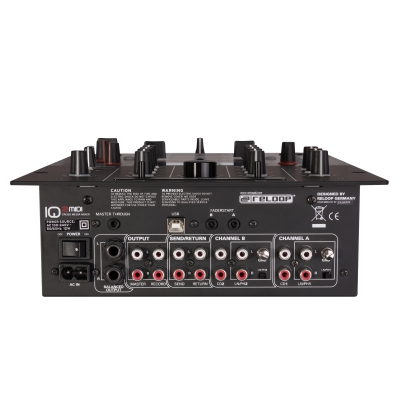

• Inputs: 2x phono, 2(+2)x line, 2x return, 1x mic, 2x USB
• Outputs: 1x master, 1x send, 1x rec, 2x USB
• EQ range: +10/-30 dB

• Dimensions: 250 x 355 x 104.9 mm
• Weight: 4.2 kg
• Incl. Traktor PRO demo DJ software
