Numark NS7FX digital controller

Numark NS7FX digital controller

Designed by Numark in collaboration with Serato, NS7FX represents the pinnacle of digital DJ performance. NS7FX combines a premium mixer with two motorized, adjustable-torque turntables, real vinyl, and a professional audio interface to deliver a complete performance solution that will satisfy the most hardcore turntablist. NS7FX also includes powerful effects controls for hands-on manipulation of the wide range of effects built into the included Serato ITCH software.

A full complement of premium faders, knobs, buttons, and our new Strip Search virtual needle-drop control integrates seamlessly with ITCH. NS7FX exchanges turntable and control information with your Mac or PC at more than ten times standard MIDI resolution, resulting in a rock-solid hardware/software system that feels and as good as it looks.

You want the feel of real decks and vinyl. You want the power and flexibility of a computer-based DJ system. You need NS7FX.

DEVELOPED IN PARTNERSHIP WITH SERATO
NS7FX was a collaborative development effort with Serato to develop the finest computer-DJ experience. It is a one-to-one hands-on control instrument for Serato ITCH.
Because it was designed for ITCH, NS7FX setup time is the bare minimum. No tweaking, no mapping; just plug and perform.

AUDIO QUALITY
We took extraordinary care in selecting the components of the audio signal chain. NS7FX contains a host of professional audio connectors and a multichannel, 24-bit USB digital-audio interface.

The high-definition post-mix analog audio output features a minimized circuit path with containing only one audiophile-grade bipolar capacitor. This optimized design maximizes phase coherence, ensuring that audio is tight and punchy.

PROFESSIONAL APPEARANCE

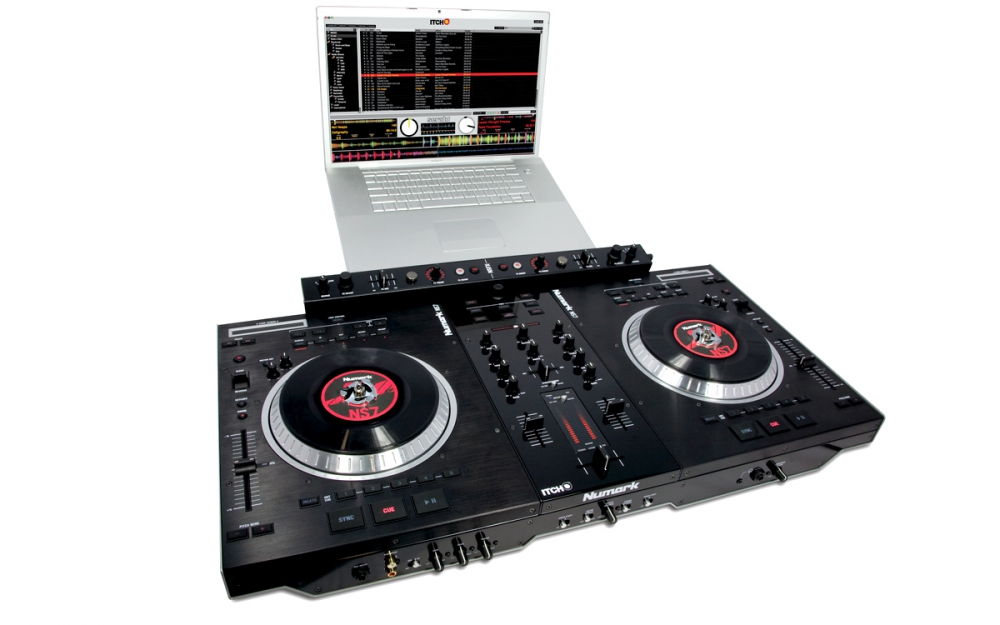

NS7FX’s dual decks flank the mixer section. Its recognizable, professional appearance is supported by clean design in matte and glossy black. The entire unit is housed in a heavy-gauge, industrial-strength metal casing that is ready for the torture of travel.

SERATO ITCH SOFTWARE
Serato ITCH is already familiar if you use Scratch LIVE. The new program builds on Scratch LIVE’s popularity and adds some key, new features. ITCH doesn’t require a timecode interface, so the system can be as simple as, say, NS7FX and your computer! Since ITCH makes timecode a thing of the past, you won’t need to worry about needles skipping or vinyl wearing out. You can load your Scratch LIVE crates, loops, presets, and cue points seamlessly in ITCH. NS7FX also works with most other MIDI DJ software and supports iTunes.

ITCH is a high-performance portable music system with internal mixing and platter-style playback control. Because it is designed specifically for use with hardware control, ITCH has a clean information display.

ITCH handles audio processing and mixing including channel fading, EQ, crossfading and track trim are processed for outstanding control and management of your tracks, ease of recording your set, clip-proof gain management, and BPM calculation using the power of your computer’s processor.

Serato's unique color waveforms provide an easy identification of sound and changes in the track. ITCH can set and store cue-points. It offers three-range pitch control: ±8%, ±16%, and ±50% with Key Lock for manipulation of pitch and tempo independently.

ITCH has library management tools for backup and restoring your music. Advanced input and mix recording capabilities include recording your mix or just the aux input for sampling. The software supports AIFF, WAV, MP3, and AAC audio files.

The History function in ITCH keeps a comprehensive record of every track played and exports sessions from your history to 'txt', 'csv', or 'm3u'. ITCH also has a Loop Roll function that provides a looping effect where the playhead jumps back to normal time when you release the loop. Built-in key support ensures that ITCH reads key tags from MP3 files and displays them in the 'key' column in your library.

Specs:
Audio Inputs
• Mic (1/4" balanced)
• Stereo line (RCA)

Audio Outputs
• Master (Stereo XLRs)
• Master (Stereo RCAs)
• Booth (Stereo RCAs)
• Headphone (Stereo 1/4" and Stereo 1/8")

ANALOG
SNR (Full Signal Path)
• Balanced Outputs (Stereo XLR: Master): > 98 dB (A-weighted)
• Unbalanced Outputs (Stereo RCA: Master and Booth): > 98 dB (A-weighted)
• Headphone Outputs (Stereo: 1/4" and 1/8"): > 93 dB (A-weighted)
THD + N
• Balanced Outputs (Stereo XLR: Master): < 0.01% (A-weighted)
• Unbalanced Outputs (Stereo RCA: Master and Booth): < 0.01% (A-weighted)
• Headphone Outputs (Stereo: 1/4" and 1/8"): < 0.01% (A-weighted)
Maximum Output
• Balanced Outputs (Stereo XLR: Master): +26.3 dBu into > 1kO
• Unbalanced Outputs (Stereo RCA: Master and Booth): +14.25 dBu into > 1kO
• Headphone Output (Stereo: 1/4" and 1/8"): + 19 dBu into > 32O
• Frequency Response: 22 Hz – 22kHz (+0/-0.5 dB)

DIGITAL
• Sample Rate: 44.1 kHz
• Bit Depth: 24-bit

HARDWARE
• Dimensions: (W x D x H): 762 mm x 403.2 mm x 98.4 mm
• Weight: 16.1 kg

MINIMUM SYSTEM REQUIREMENTS
All Systems
• 1024 x 768 screen resolution
• Available USB 2.0 port
• Available Hard disk space for music

Windows
• 32-bit Windows 7 / Vista
-Intel* processor - 1.8GHz Core 2 Duo
-2MB L2 cache
-2GB RAM
• 32-bit Windows XP
-Intel* processor - 1.8GHz Core 2 Duo
-2MB L2 cache
-1GB RAM
• 64-bit Windows XP / Vista
-Intel* processor - 2.2Ghz Core 2 Duo
-2MB L2 cache
-4GB RAM
• 64-bit Windows 7
-Intel* processor - 2.4GHz Core 2 Duo
-3MB L2 cache
-4GB RAM

Macintosh
• Mac OS X 10.6 32-bit
-Intel processor, 1.8GHz Core Duo
-1GB RAM
• Mac OS X 10.6 64-bit
-Intel processor, 2.4GHz Core Duo
-4GB RAM

• Mac OS X 10.5 / 10.4.11
-Intel processor, 1.8GHz Core Duo
-1GB RAM
