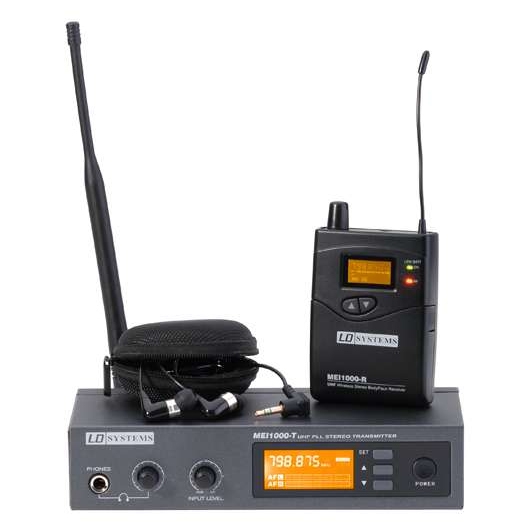

LDSystems MEI1000 wireless in-ear monitor system (790.850 - 813.800 MHz)

LD Systems MEI 100
LD Systems MEI 100 In-Ear Monitoring-System with offers outstanding sound quality and a large dynamic range. Both transmitter and receiver feature multifunctional displays that show all important system information. High quality batteries allow for hours of use. Great quality for an affordable price.

Receiver specifications:
• Product type: beltpack receiver
• Transmission frequency range: 863,000MHz, 823,000MHz
• Channels: 96 (8 groups of 12 channels)
• Transmission method: FM, stereo
• Frequency response: 60Hz
• Signal-to-noise ratio: 80dB
• THD: < 1 %
• Audio output: 3.5 mm TRS
• Max. audio output level: 100
• Controls: volume, set, up, down, Escape
• Display: low battery, Power, LC display
• Operating voltage: 2 x 1.5 V AA
• Operating time: > 12 hrs., battery-dependent
• Width: 65mm
• Height: 90mm
• Depth: 24mm
• Weight: 0.1kg

Transmitter specifications:
• Product type: transmitter
• Transmission frequency range: 863,000MHz, 823,000MHz
• Channels: 96 (8 groups of 12 channels)
• Transmission method: FM, stereo
• Rated HF output power: 10 mW
• Frequency response: 60Hz
• Signal-to-noise ratio: 85dB
• Inputs: 2
• Input connectors: XLR, 6.3 mm Jack
• Input impedance (kOhms): 14
• Antenna connector: TNC
• Controls: down, pad, input level, up, Power, volume headphone, set
• Display: LC display
• Operating voltage: 12 - 18 V DC
• Width: 200mm
• Height: 44mm
• Depth: 96mm
• Weight: 1.2kg
