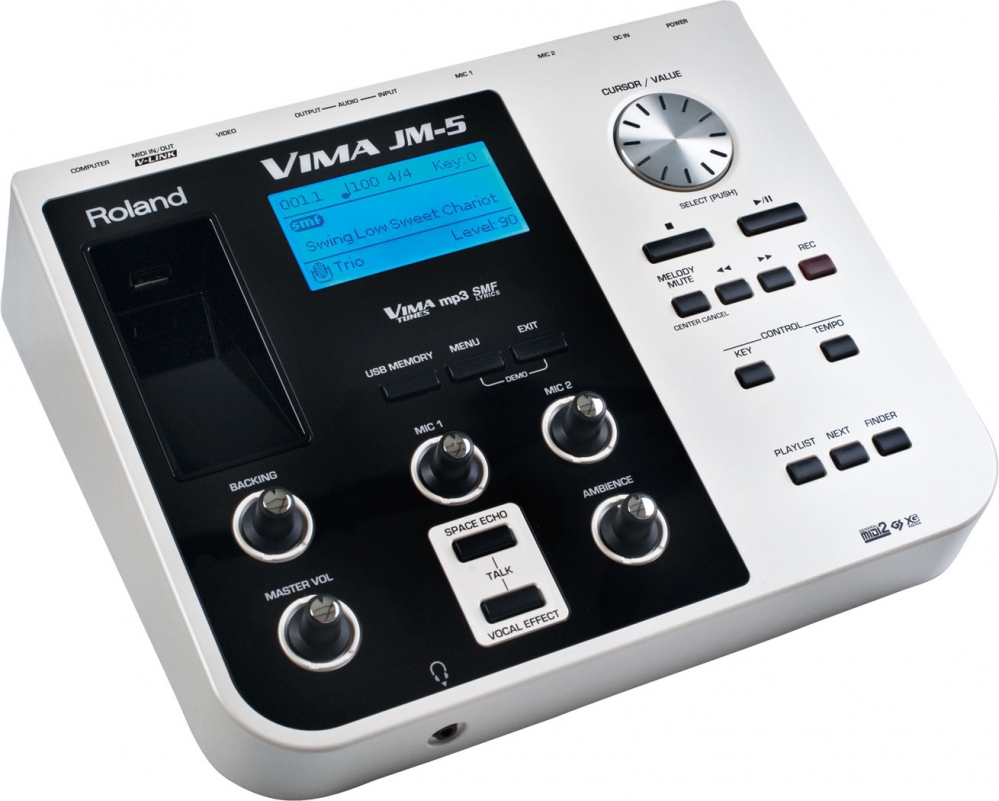

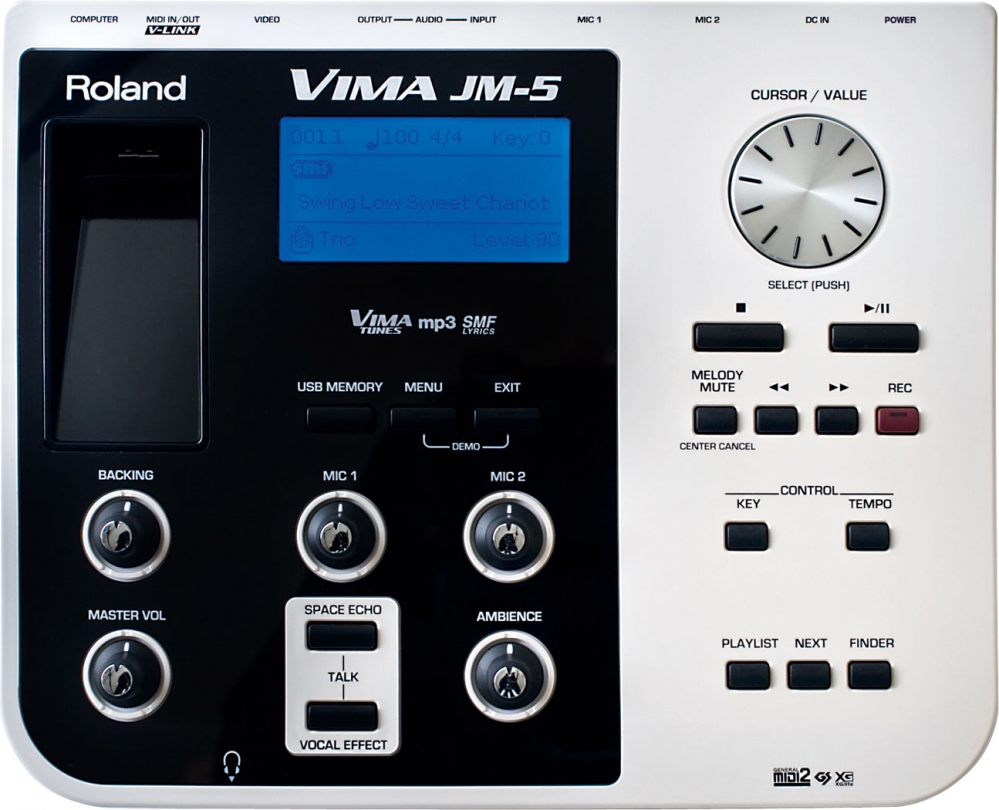

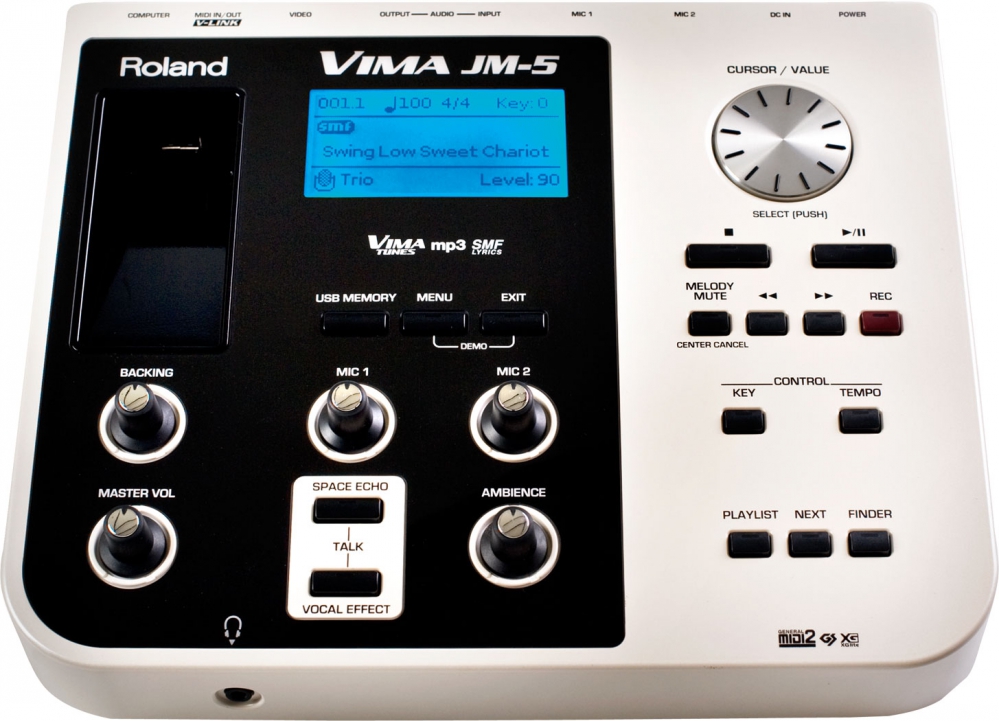

Roland JM-5 Vima karaoke files player

Roland JM-5 Vima karaoke files player

The Do-It-All Entertainment Module!

In homes, hotels, lounges, or any entertainment venue, the new VIMA JM-5 is the premiere all-in-one entertainment station. With its high-quality sound engine, the VIMA JM-5 can play and manipulate any file you feed it. But that’s only the beginning of what this multifaceted instrument can do. Karaoke? The VIMA JM-5 accepts a wide range of file formats, including SMF, MP3, WAV, MP3+CDG, and VIMA Tunes® via USB. Simply play your favorite songs and use the VIMA JM-5 to change tempo and/or key signature to best suit the singers’ voices. Plug in a microphone or two, and sing along using the powerful onboard Vocal effects, including Auto Harmony. The VIMA JM-5 can display lyrics and slide-show images to match the music. When using WAV or MP3 files, you can use the Center Cancel function to minimize pre-existing vocals for sing-along fun. You can even record your performances directly to USB and distribute to family and friends.

- All-in-one playback and performance module
- Over 1,000 tones, 57 drum kits, and 128-voice polyphony
- Plays back SMF, MP3, WAV, MP3+CDG, and VIMA Tunes files from an external USB storage device
- Tempo control, key change, and Melody Mute/Center Cancel functions
- Supports slide shows and lyrics display
- Two vocal mic inputs with onboard Vocal Effects, including Harmony, Roland Space Echo, Ambience and Voice Transformer
- Audio WAV recording to external USB storage device
- Composite Video Out to display lyrics and/or chords of the selected songs as well as digital-photo slide shows

Display
• 132 x 64 dots, graphic monochrome LCD (backlit)
Sound generator
• (Conforms to GM2/GS/XGlite)
Max. polyphony
• 128 voices
Sounds
• 1,092 tones, 57 drum sets
Multitimbral parts
• 19 (16 Song Parts + 3 External parts through MIDI In)
Master tuning
• 415.3 Hz to 466.2 Hz
Key control (Transpose)
• -6 to +5 in semitones (for audio/MIDI data
Tempo change
• Quarter Note = 20 to 250 for SMF, 75 to 125 % for mp3 and WAV files
Part mute functions
• MELODY MUTE: SMF, CENTER CANCEL: mp3, WAV, AUDIO INPUT signals

Effects
SMF song section
• Reverb: 8 types, chorus: 8 types, MFX A, B, C: 84 types, parametric EQ, multi-band compressor
MIC1
• Reverb: 3 types, Space Echo
Vocal effects (MIC1)
• Auto harmony: 4 types, transformer: 9 types, Music Files, keyboard

Songs
Real-time player
• SMF (Format 0/1), KAR, mp3, WAV, mp3+CDG
Song Chord Extractor
• Automatic chord detection for SMF files
SMF Makeup Tools
• Instrument-oriented editing
Playlist
• Lists of favorite songs for automatic playback
Finder
• Audio files, SMF, picture
Next
• Audio files, SMF
SMF Cover
• 30 types

Demo
Demo songs
• Yes

Recording
USB Recorder
• Records audio files (WAV, 44.1kHz/16-bit linear format)

Video
Slide shows
• Picture folder linked to songs (recommended resolution: 1024 x 768 or 512 x 384 pixels)
VIMA TUNES
• Yes
Lyrics
• SMF and mp3/WAV
Data storage
USB
• Host connection for storage devices (frontal)

Panel controls
Knobs
• MASTER VOL, BACKING, MIC1, MIC2, AMBIENCE
Rotary encoder
• Data dial with push switching function

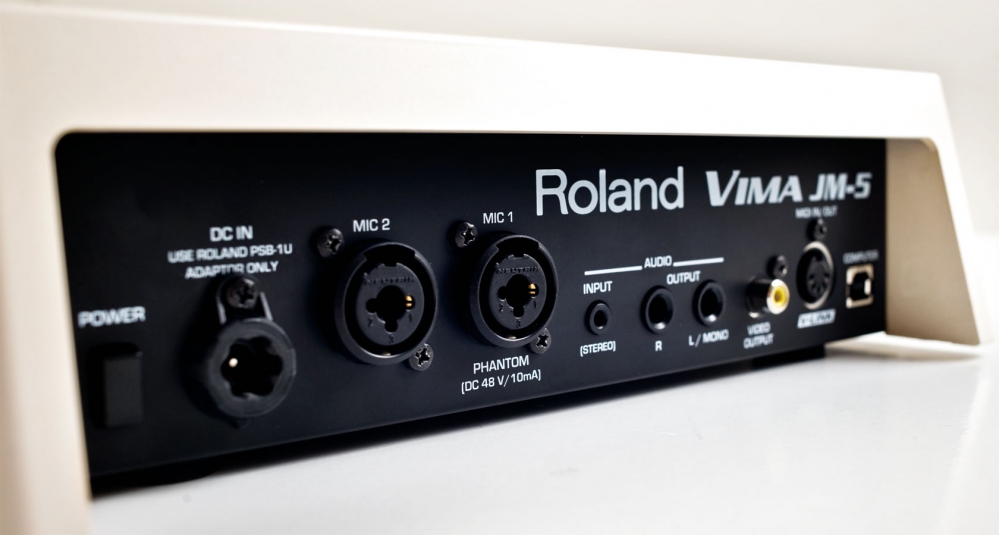

Connectors
Headphone jack
• Stereo miniature phone type
Audio inputs
• INPUT (STEREO) jack: Stereo miniature phone type, MIC1 jack: XLR type / 1/4" TRS phone type (XLR type: balanced / phantom power: DC 48 V, 10 mA Max) (1/4" TRS phone type: balanced), MIC2 Jack: XLR type or 1/4" phone type
USB connectors
• USB Host (data storage), COMPUTER (reception and transmission of MIDI data)
MIDI IN/OUT connector
• MIDI IN/OUT (V-LINK function)
Video output
• Composite (PAL or NTSC, selectable)
Audio outputs
• (L/MONO, R) (1/4" phone type)

Other
Power supply
• 9V DC, supplied AC adaptor
Current draw
• 700 mA
Included accessories
• Owner’s Manual, AC adaptor, Roland USB Memory M-UF2G, 4 screws (M5 x 8)

Options
• Microphone: Roland DR-series, Headphones: Roland RH-series, USB Flash Memory: Roland M-UF-series, Amplifiers: Roland KC-series, Stand: Roland PDS-10, SS-PC1

Size and Weight (Dimensions)
Width
• 273 mm
Depth
• 230 mm
Height
• 90 mm
Weight
• 1.6 kg
