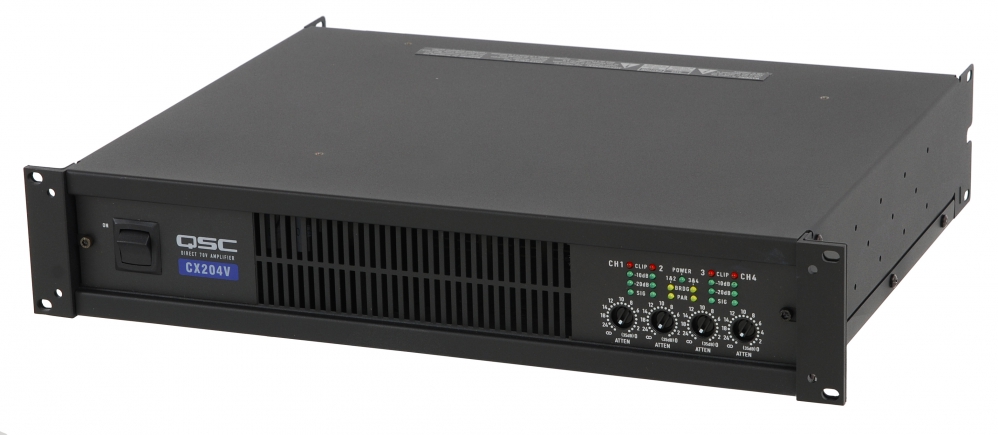

QSC CX204V 4-ch. CX amplifier

QSC CX204V

The QSC CX204V 4-channel CX amplifier give has four channels in only two rack spaces - without compromising on power. With high output power, versatile loading options, high thermal capacity and unmatched reliability, the CX Series is the perfect solution to any permanently installed sound system.
With PowerWave technology, CX amplifiers take your sound to a whole new level. Not only does it give you tighter bass and clean transparent highs, PowerWave also cuts waste heat, boosts reliability and gets rid of unwanted noise and hum. PowerWave is a revolutionary switching power supply technology that provides ample current to the audio power circuitry by charging the supply rails 230,000 times a second through an ultra-low impedance circuit. So unlike amplifiers that use conventional supplies, the audio signal is never starved prematurely and remains crisp and clean.

Features:

• Compact size
• Bridgeable channels 1 + 2 and 3 + 4, for maximum flexibility
• Active inrush limiting eliminates AC inrush current, removing the need for expensive power sequencers
• HD15 DataPort connector for Q-Sys and QSControl computer control and monitoring
• Custom integrated security cover for tamper-proof installations
• Variable-speed fan for low noise
• 1-dB detented gain controls for fast and accurate gain settings
• Detachable Euro style input connectors
• DIP switch control for clip limiters, high pass filters, bridge mono and parallel operation
• Exclusive PowerLight switch-mode power supply technology for high performance and compact size
• Selectable high-pass filters protect speakers and prevent speaker transformer saturation with minimal effect on program material (33 Hz or 75 Hz on non-V models, 50 Hz or 75 Hz on V models)

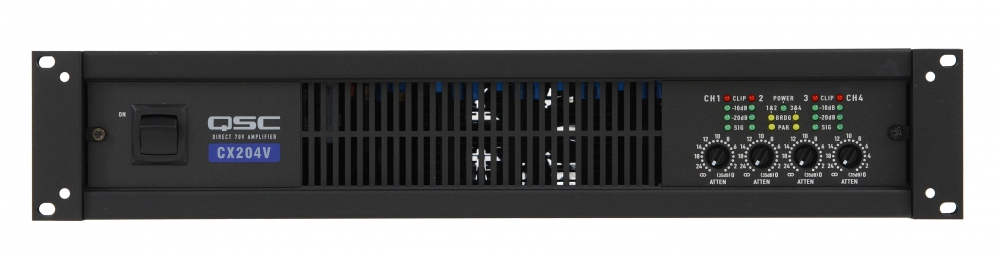

• Comprehensive front panel indicators including signal, clip, protect and QSC's exclusive bridge mono and parallel input LEDs
• Barrier strip output connector
• Comprehensive protection circuitry including DC, infrasonic, thermal overload and short circuit protection
• High-performance Class AB+B complementary bipolar output circuitry
• Light weight

Specifications:

• RMS Output Power - The controlled four channels (70 V):
- 4x200 W @ 20 Hz-20 kHz, 0.05% THD
- 4x220 W @ 1 kHz, 0.05% THD
- 4x300 W @ 1 kHz, 1% THD
• Class AB + B
• Frequency response: 20 Hz-20 kHz, +/- 0.2 dB
• THD: <0.01%
• Damping factor:> 500
• input sensitivity: 1.26 V RMS
• Input Impedance 6 Ohms (unbalanced), 12 Ohms (balanced)
• Protections: short circuit, open circuit, thermal, ponadakustycznymi frequencies before radio waves, protection against reactive loads or improperly chosen, mute at power on / off, before the faulty supply voltage.
• Cooling: a variable speed fan
• Connectors: Input-2 x XLR-balanced, Euroblock
• Output: 2 x terminal
• Dimensions: 19 "(48.3 cm) rack mounting, 3.5" (8.9 cm) height (2 units U)
• Weight: 9.5 kg
