Sennheiser K6 Powering module for battery/phantom powering

Sennheiser K6 Powering module

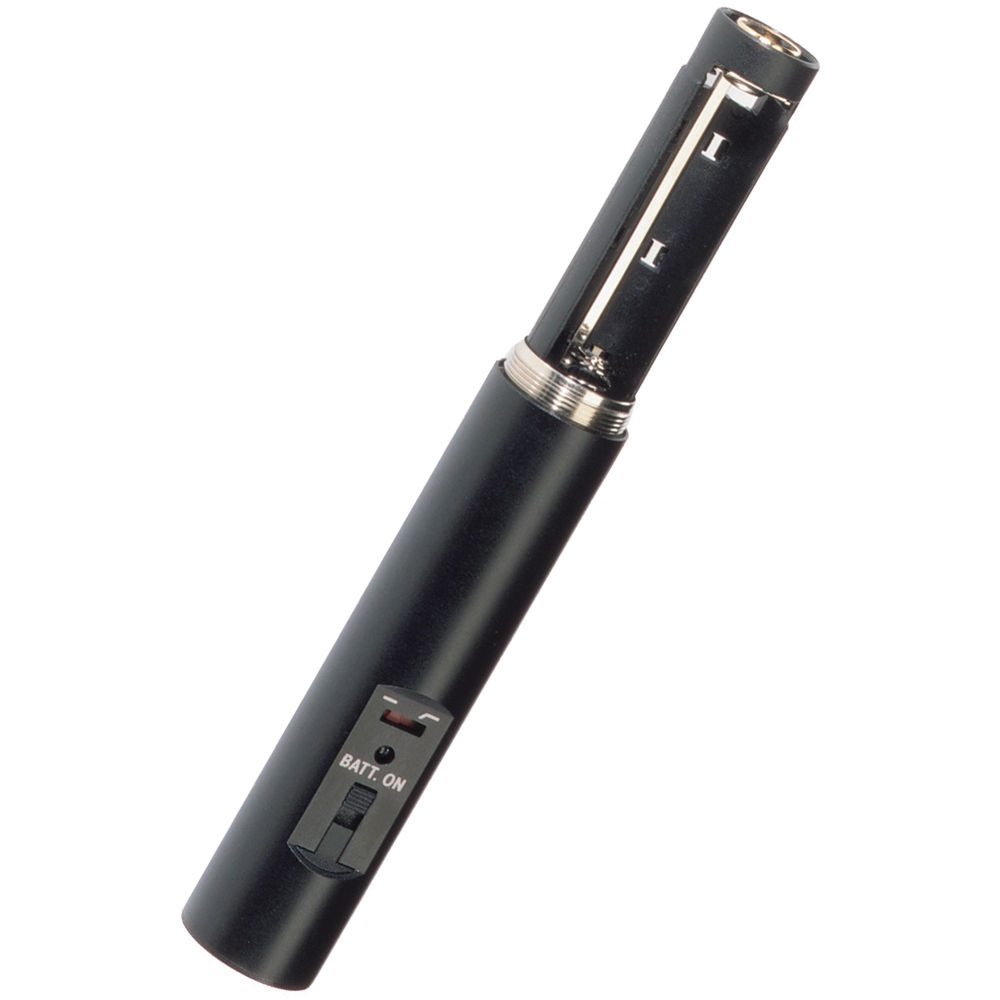

The K6 powering module is the heart of this Sennheiser professional modular microphone system and can be powered either by its internal 'AA' size 1.5 V battery or by 12 - 48 V phantom power. The K6 can be combined with different condenser microphone heads to provide a wide variety of polar patterns. Matt black, anodised scratch-resistant finish.

Features:

• Switchable bass roll-off filter protects against rumble, handling, pop and wind noise
• On/off switch with battery test
• High output, low noise
• Transformerless balanced output on 3-pin XLR connector

Specifications:

• Dimensions: d 22 x 94 mm (netto)
• Frequency response (Microphone): 30 - 20000 Hz +- 1 dB
• Transducer principle (Microphone): Pre-polarised condenser microphone
• Weight ca.: 45 g
• Nominal impedance: 200 Ω
• Min. terminating impedance: 1000 Ohm Phantom
• Operating time max.: 150 h
• Gain: 0 dB
• Current consumption: 2,2 mA
• Output voltage: 2 V Phantom
• Battery Specification: 12 - 48 V 1x Typ IEC LR 06 Phantom
