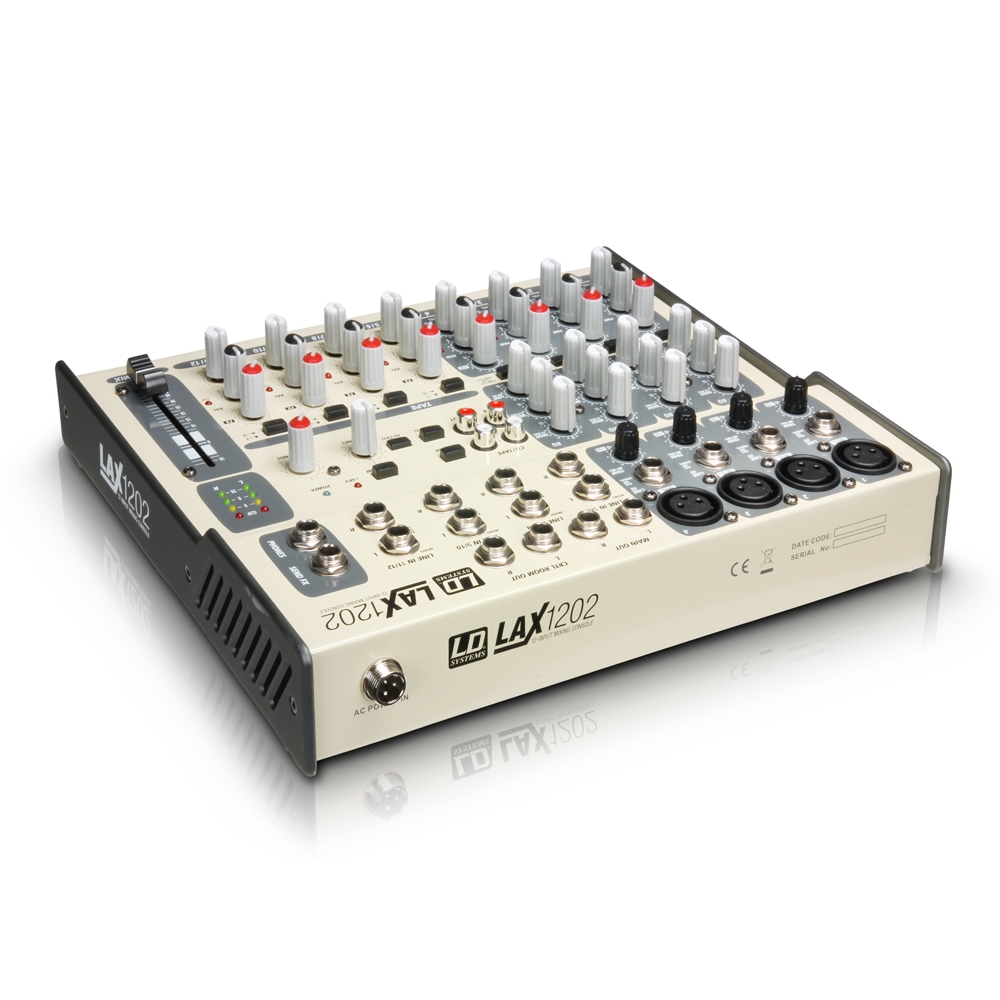

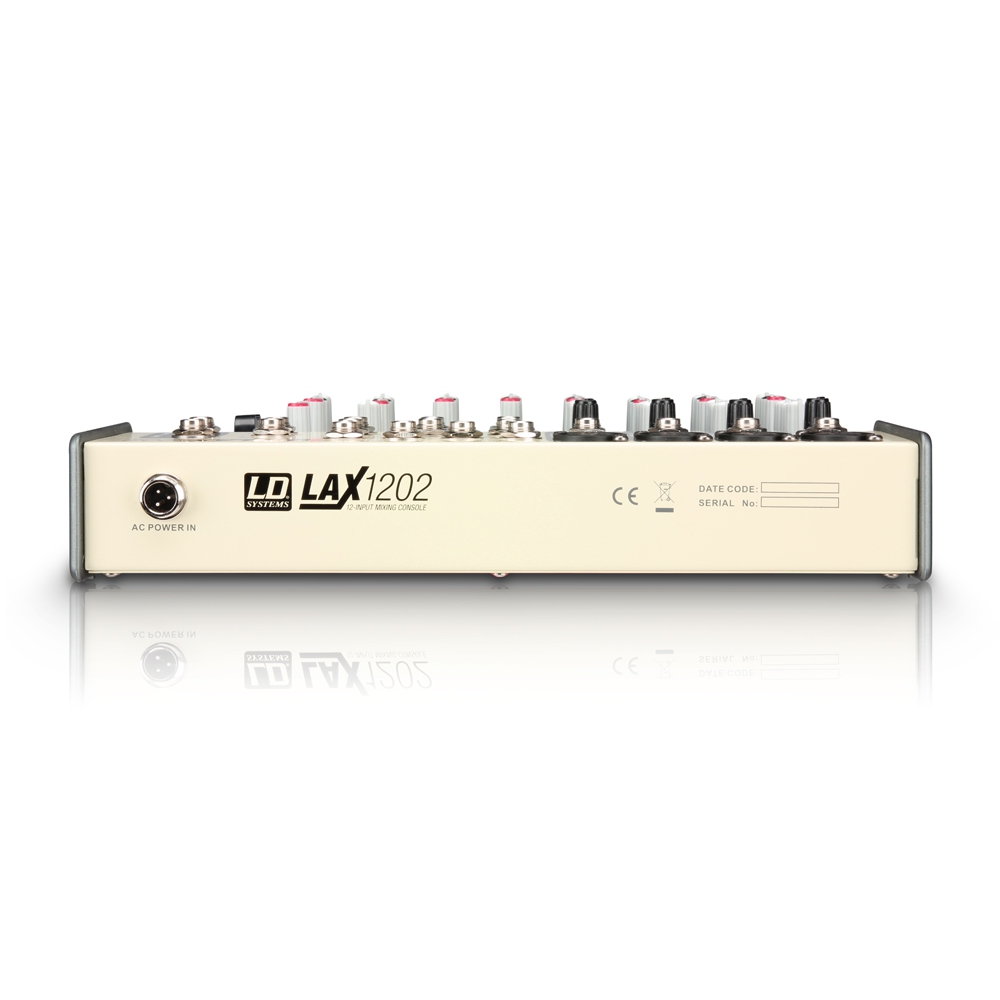

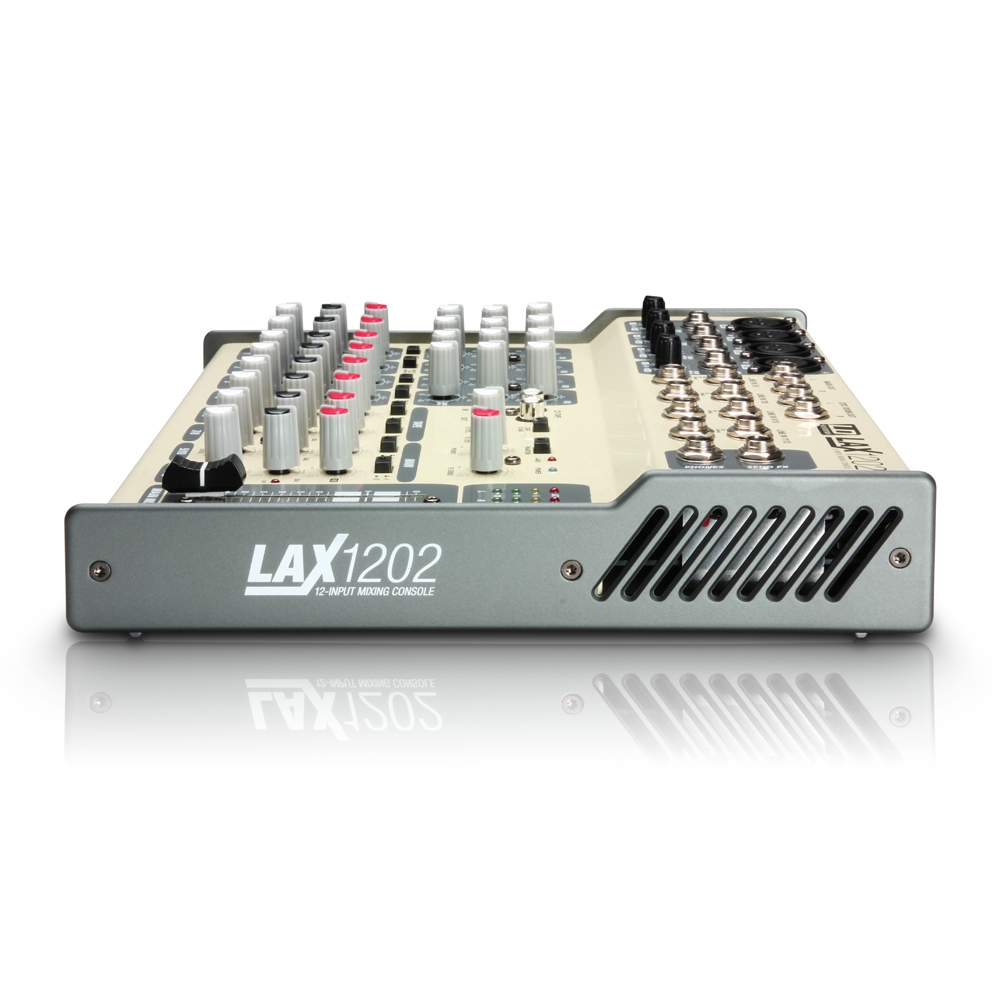

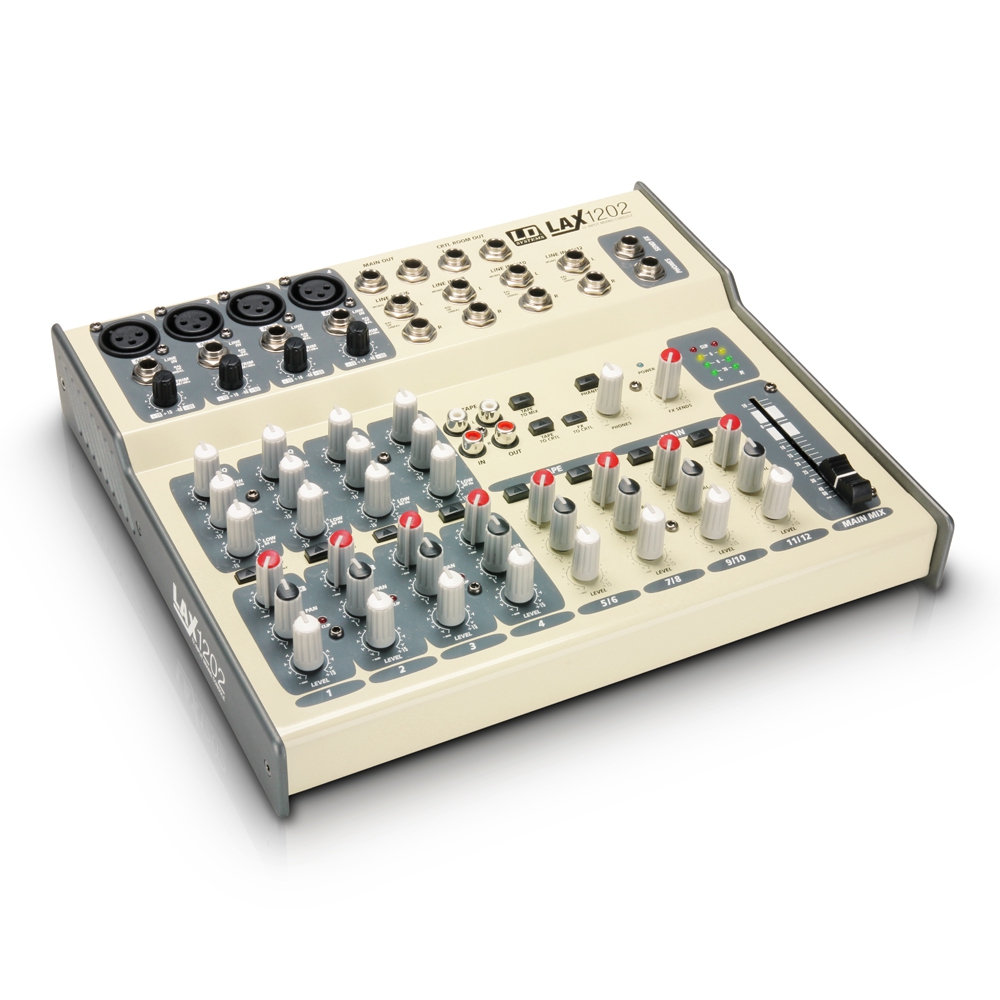

LD Systems LAX 1202 analogue mixer

LD Systems LAX 1202 analogue mixer

LDLAX1202D - 12 inputs, high-quality audio data and a flexible DSP effects engine in a functional unit

Similar in its compact size to the LAX1002, but with four microphone and four stereo line inputs, the LAX1202 boasts 12 inputs and impresses with ease of operation despite its small dimensions. An integrated DSP effects engine with 100 presets makes this compact console the perfect control station, both on stage and in the studio.

• Type: Live
• Channels: 12

Mono Channels
• Mono Mic and Line Input Channels: 4
• Mono Mic input connectors: XLR, 6.3 mm TRS
• Mono Mic Input Type: electronically balanced
• Mono Mic Input Frequency Range: 10Hz
• Amplification Range mono Mic Input: +10 - +60dB
• Mono Mic Input Input THD-N: 0,005%
• Mono Mic Input Impedance: 2.600Ohm(s)
• Mono Mic Input S/N Ratio: 110dB
• Mono Line Input Type: electronically balanced
• Mono Line Input Frequency Range: 10Hz
• Amplification Range mono Line Input: -10 - +40dB
• Mono Line Input Input THD-N: 0,005%
• Mono Line Input Impedance: 10,000Ohm(s)
• Mono Line Input S/N Ratio: 110dB
• Mono Channel Equalizer Low: +/- 15 dB @ 80 Hz
• Controls Mono Mic and Line Input Channels: Low Cut (75 Hz), 3-band EQ (High, Mid, Low), pan, Gain, AUX (DFX) Post, Channel Volume
• Phantom power: 48 V DC switchable

Stereo Channels:
• Stereo Line Input Channels: 4
• Stereo Line Input Connectors: 6.3 mm TRS
• Stereo Line Input Type: electronically balanced
• Stereo Line Input Frequency Range: 10Hz
• Amplification Range stereo Line Input: +4/-10dB
• Stereo Line Input Input THD-N: 0,005%
• Stereo Line Input Impedance: 20,000Ohm(s)
• Stereo Line Input S/N Ratio: 110dB
• Max. Stereo Line Input Level: +22
• Stereo channel equalizer mids: 1
• Controls Stereo Line Input Channels: Channel Volume, gain switching, Balance, AUX (DFX) Post

Main Section:
• AUX / Effects Send Connectors: 6.3 mm TS
• Stereo Tape Out Channel: 1
• Stereo Tape Out Connectors: RCA
• Stereo Tape In Channel: 1
• Stereo Tape In Connenctors: RCA
• Balanced Stereo Main Out: 1
• Balanced Stereo Main Out Connectors: 6.3 mm TRS
• Balanced Stereo Main Out Impedance: 240Ohm(s)
• Max. Balanced Stereo Main Out Level: +28
• Stereo Control Room Out: 1
• Stereo Control Room Out Connectors: 6.3 mm TS
• Headphones ouput: 1
• Headphones outputs: 6.3 mm TRS
• Digital Effects Processor: yes
• Number of Presets: 100
• Main section controls: DFX Preset Alpha Dial, Tape to mix, FX to main, Tape to control room, FX to control room, Phantom Power, master fader, headphones volume
• USB media player: no
• Display: FX Signal, Channel Peak, 4-segment Level Meter, Phantom Power, Power, FX Number, FX Clip
• Operating voltage: External Power Supply Prim. 230 V AC 50 Hz Sec. 2 x 18 V AC 2 x 650 mA

• Width: 269mm
• Height: 55mm
• Depth: 240mm
• Weight: 2kg
