Monacor TXS646 4-channel multifrequency receiver unit

Product:	Monacor TXS646 4-channel multifrequency receiver unit
Brand:	Monacor
Item number / Code:	138351 / MONAC-TXS646
Current availability:	0 pcs.
Note! The price of this product may have changed. Please contact our team to receive more information on the availability and price of this item.
Key words:	Monacor TXS646 4-channel multifrequency receiver unit, Monacor TXS646, TXS646
Ask a Product Expert:	Jakub Pindelski, tel. +48 717974679, email: [email protected]

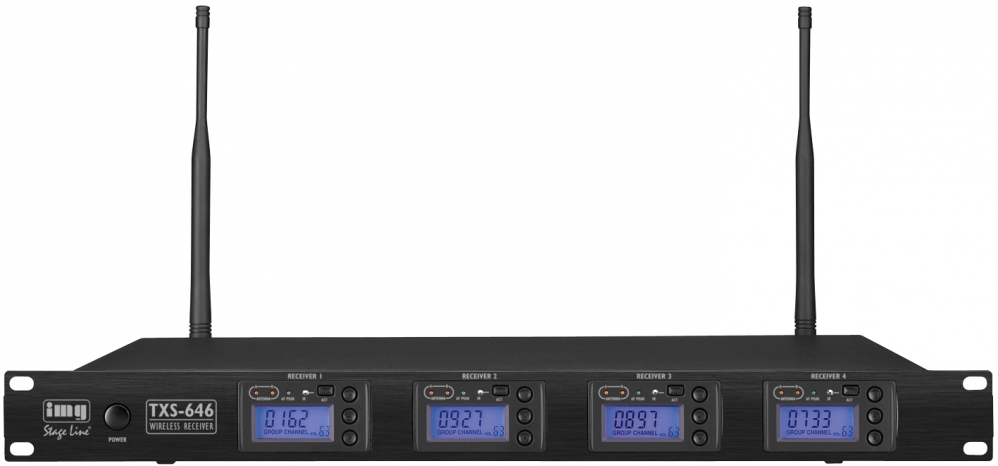

Monacor TXS-646

4-channel multifrequency receiver unit with UHF PLL technology. TXS-646 provides clear sound and very good price-performance ratio. True diversity system with removable antennas (BNC connection), volume and squelch controls for each channel. 1,000 selectable UHF frequencies (672.000-696.975 MHz) for each channel (10 groups with 100 channels each). ACT function for transmitting the selected frequency to pocket transmitter TXS-606LT or hand-held microphone TXS-606HT via infrared signal. LCD for group/channel, antenna A/B, RF receiving level, AF audio level and additional LED display for audio signal of each channel.

Specification:

• Carrier frequency: 672.000-696.975 MHz
• RF S/N ratio: 105 dB
• Audio frequency range: 30-18,000 Hz
• THD: < 0.5 %
• Dynamic range: 120 dB
• Audio output:
- 350 mV/600 Ω (jack)
- 25 mV/600 Ω (XLR, bal.)
• Admiss. ambient temp.: 0-40 °C
• Power supply: via suppl.
plug-in PSU
• Dimensions: 482x45x310 mm
• Weight: 2.9 kg
