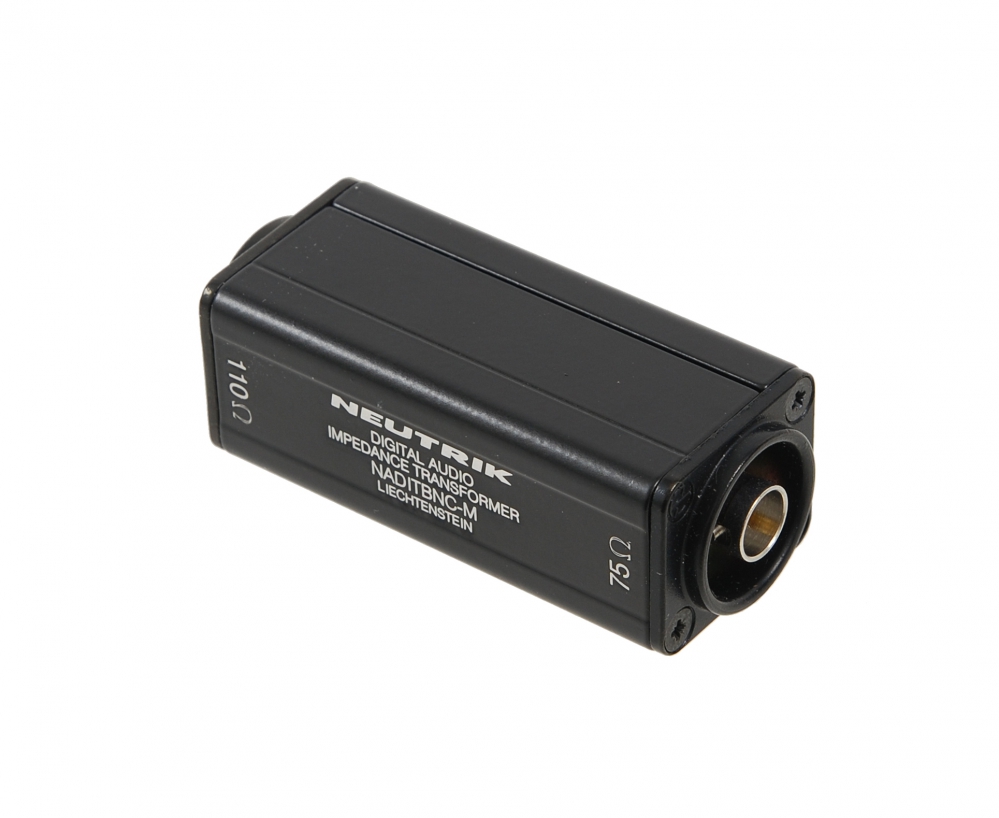

Neutrik NADITBNC-M Impedance Transformer (Female BNC 75 Ω input - male XLR chassis)

Neutrik NADITBNC-M Impedance Transformer (Female BNC 75 Ω input - male XLR chassis)

Neutrik is the leading supplier of professional entertainment connector products like audio, video, fiber optic and industrial connectors and interconnect systems. Their audio range includes XLR connectors, plugs, jacks, speaker connectors, patch bays and fiber optic connection systems.

FEATURES
• Female BNC 75 Ω input - male XLR chassis connector
• Allows long cable runs for digital audio signals via low attenuation coax lines
• Match balanced to coaxial lines
• Match impedances 110 Ω to 75 Ω
• Simple to use, passive units

TECHNICAL SPECIFICATIONS
• Frequencyrange: 0.1 - 6 MHz
• Rated voltage: ≤ 5 V p-p
• VSWR: < 1.1
• Return loss: > 26.4 dB
• Insertion Loss: < 0.3 dB @ 0.1 MHz to 10 MHz
