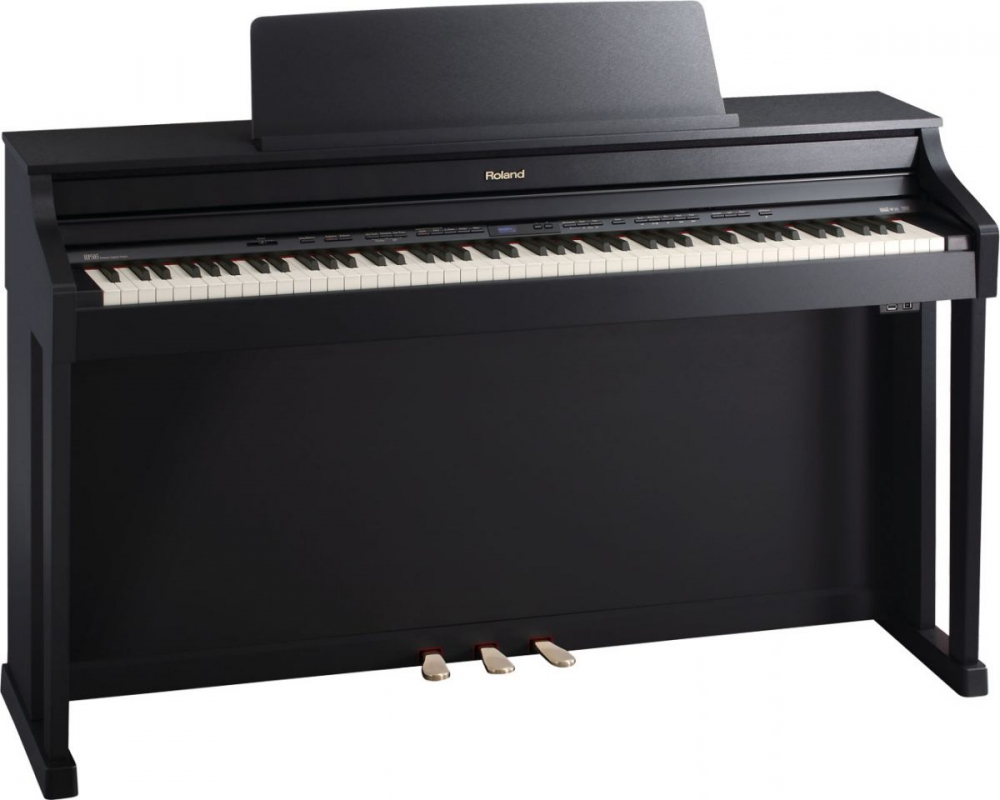

Roland HP 505 SB digital piano

Roland HP 505 SB digital piano

Roland's acclaimed SuperNATURAL Piano Sound Engine evolves with Acoustic Projection technology — an innovative, multi-dimensional sound system built into the new HP505. Acoustic Projection is inspired by the flagship V-Piano Grand and its ability to reproduce the natural sound field of an acoustic piano. The marriage of Roland's world-leading technologies in the HP505 empowers pianists with a complete, immersive acoustic-piano experience.

- Natural, organic multi-dimensional sound field of an acoustic piano produced by Acoustic Projection technology
- SuperNATURAL Piano sound engine with seamless tonal changes according to touch, plus beautiful decay and faithful reproduction of the differences in tone between each key
- Soundboard Behavior provides clarity of each note even when many notes are played simultaneously
- PHA III (Progressive Hammer Action III) Ivory Feel Keyboard with Escapement and Progressive Damper Action Pedal
- Play classical piano masterpieces using the authentic sounds (such as true fortepiano) they were written for
- Elegant and bold design; The HP505 is perfect for traditional or contemporary interiors
- Onboard LCD offers user-friendly operation with straightforward front-panel layout
- Energy-saving technology achieves powerful and dynamic sound with lower power consumption

Keyboard
• 88 keys (PHA III Ivory Feel Keyboard with Escapement)
Touch Sensitivity
• Key Touch: 5 levels, Fixed Touch
Keyboard Modes
• Whole
• Dual (volume balance adjustable)
• Split (split point adjustable)
• Twin Piano

Pedals
• Damper (Progressive Damper Action Pedal, capable of continuous detection)
• Soft (capable of continuous detection)
• Sostenuto (function assignable)

Sound Generator
Piano Sound
• SuperNATURAL Piano Sound
Sound Generator
• Conforms to GM2/GS/XGlite
Max. Polyphony
• 128 voices
Tones
• Grand Piano: 10 tones
• Early Piano: 6 tones
• E.Piano: 10 tones
• Strings: 14 tones
• Other: 307 tones (including 8 drum sets, 1 SFX set)
Temperaments
• 8 types, selectable temperament key
Stretched Tuning
• On, Off
Master Tuning
• 415.3 Hz to 466.2 Hz (adjustable in increments of 0.1 Hz)
Transpose
• Key Transpose: -6 to +5 (in semitones)
• Playback Transpose: -6 to +5 (in semitones)
Effects
• Ambience (Off, 10 levels)
• Brilliance (Off, -10 — 0 — +10)

- Only for Piano Tones:
• Soundboard Behavior (Off, 10 levels)
• Cabinet Resonance (Off, 10 levels)
• Damper Resonance (Off, 10 levels)
• String Resonance (Off, 10 levels)
• Key Off Resonance (Off, 10 levels)

- Only for Organ Tones:
• Rotary Speaker Effect (Slow/Fast)

Metronome
Tempo
• Quarter note= 10 to 500
Beat
• 2/2, 0/4, 2/4, 3/4, 4/4, 5/4, 6/4, 7/4, 3/8, 6/8, 9/8, 12/8
Volume
• 11 levels

SMF Recorder
Tracks
• 3 tracks
Song Save Format
• Standard MIDI Files (Format 0)
Songs
• Recorder section: 1 song
• Internal Memory: Max. 99 songs
Note Storage
• Approx. 30,000 notes
Controls
• Song Select, Play/Stop, Rec, Rewinding, Fast-forwarding, Previous song, Next song, Part Mute, Mute Volume, Tempo, Tempo Mute, All Songs Play, Count-in, Song Balance, AB Repeat
Tempo
• Quarter note= 10 to 500
Resolution
• 120 ticks per quarter note

Audio/Audio CDs
Playback
• File Format: Audio File (WAV 44.1 kHz/16-bit linear format)
• Audio CDs (CD-DA) (when using optional CD drive)
Recording
• with Keyboard, SMF data, Audio from Input jacks
• File Format: Audio File (WAV 44.1 kHz/16-bit linear format)
Transpose
• Playback Transpose (with Audio from Input jacks): -6 to +5 (in semitones)
Tempo
• Audio Playback Speed: 75 to 125 %
Controls
• Song Select, Play/Stop, Rec, Rewinding, Fast-forwarding, Previous song, Next song, Tempo, All Songs Play, Song Balance, AB Repeat, Center Cancel (with Audio from Input jacks)

Internal Memory
Song Save Format
• Standard MIDI Files (Format 0)
Songs
• Max. 99 songs

External Memory
External Storage
• USB Flash Memory
Playable Song Format
• Standard MIDI Files (Format 0/1)
• Roland Original Format (i-Format)
• Audio File (WAV 44.1 kHz/16-bit linear format)
• Audio CDs (CD-DA) (when using optional CD drive)
Song Save Format
• Standard MIDI Files (Format 0)
• Audio File (WAV 44.1 kHz/16-bit linear format)

Internal Songs
• Piano Masterpieces: 75 songs
• Selections: over 10 songs
• Hanon: 20 songs
• Czerny #100: 100 songs
Rated Power Output
• 30 W x 2
• 5 W x 2
Volume Level (SPL)
• 107 dB
* This figure was measured according to the method that is based on Roland's technical standard.
Speakers
• Cabinet Speakers : 12 cm x 2
• Spatial/Nearfield Speakers : 5 cm x 2
Display
• Custom LCD
Language
• English
Control
• Volume (Slider)
Other Functions
• Panel Lock
• MIDI Visual Control
Connectors
• DC In jack
• Pedal connector
• Input jacks (L/Mono, R): RCA phono type
• Output jacks (L/Mono, R): 1/4-inch phone type
• USB COMPUTER port
• USB MEMORY port
• MIDI connectors (In, Out)
• Phones jack (Stereo, with Twin Piano Individual Mode) x 2: Stereo 1/4-inch phone type
Power Consumption
• 11 W (10 W to 36 W)
• 11 W: Average power consumption while piano is played with volume at center position
• 10 W: Power consumption immediately after power-up; nothing being played
• 36 W: Rated power consumption
Accessories
• Owner's Manual
• Roland 60 Classical Piano Masterpieces
• AC Adaptor
• Power Cord (for AC Adaptor)
• Headphone Hook (Supplied with the stand)

Size and Weight （including piano stand）
Width (W)
• 1387 mm
Depth (D)
• 430 mm
Height (H)
• 1072 mm
Weight
• 55.5 kg
