Product: | LD Systems ECO2x2 HHD1 (wireless microphone system with 2 x dynamic handheld microphone) |
---|---|
Brand: | LD Systems |
Item number / Code: | 140549 / LDS-WS-ECO2X2-HHD1 |
Current availability: | 0 pcs. |
This item is no longer available. Please contact our team for alternative products. | |
Key words: | LD Systems ECO2x2 HHD1 (wireless microphone system with 2 x dynamic handheld microphone), LD Systems WS-ECO2X2-HHD1, LD Systems WS ECO2X2 HHD1, LD Systems WSECO2X2HHD1, WS-ECO2X2-HHD1, WS ECO2X2 HHD1, WSECO2X2HHD1 |

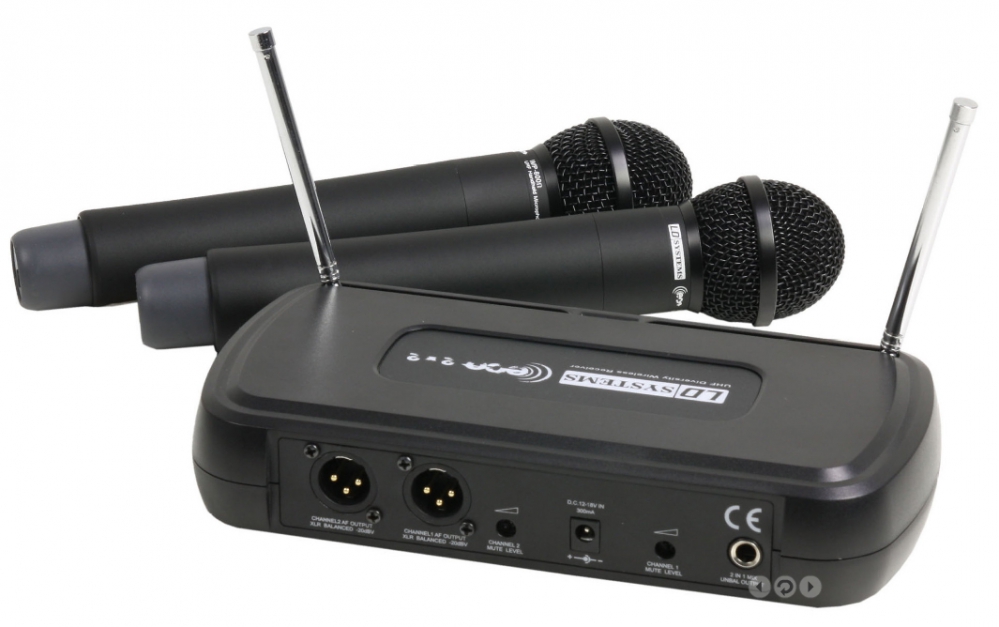

LD Systems ECO2x2 HHD1
LD Systems ECO sets are the perfect introduction to wireless audio transmission: All components guarantee optimal audio delivery via professional outputs. The extensive features of the LD WS ECO series sets are remarkable in this price category. The frequency band of 863 - 865 MHz permits operation in most EU countries with no registration or licensing required.
Features:
• 2 channel UHF PLL diversity wireless system
• Handheld version
• Handheld dynamic mic with soft-touch surface and Sensitivity switch
• Long battery life
• Great operating distance (50 m open field)
• 2 fixed frequencies: 863.100 MHz and 864.500 MHz
• Weight: 0.96kg
Specifications:
Dynamic handheld microphone (LDWSECO2MD1):
• Product type: handheld transmitter
• Transmission frequency range: 863,100MHz
• Channels: 1
• Microphone type: dynamic
• Directivity: cardioid
• Frequency response: 60Hz
• Rated HF output power: 10 mWmW
• Controls: gain, power, transmission power Hi / Low
• Display: On / Low battery
• Operating voltage: 2 x AA battery
• Operating time: >10 h (with alkaline batteries)
• Length: 250mm
• Diameter: 53mm
• Weight: 0.28kg
• Other features: incl. batteries
Dynamic Handheld Microphone (LDWSECO2MD3):
• Product type: handheld transmitter
• Transmission frequency range: 864,500MHz
• Channels: 1
• Microphone type: dynamic
• Directivity: cardioid
• Frequency response: 60Hz
• Rated HF output power: 10 mW
• Controls: power, gain, transmission power Hi / Low
• Display: On / Low battery
• Operating voltage: 2 x AA battery
• Operating time: >10 h (with alkaline batteries)
• Length: 250mm
• Diameter: 53mm
• Weight: 0.28kg
• Other features: incl. batteries
Double receiver (LDWSECO2X2R1)
• Product type: double wireless receiver
• Type: diversity
• Modulation type: FM
• Transmission frequency range: 864,500MHz, 863,100MHz
• Channels: 2
• Antenna inputs: 2
• Antenna connector: fixed to housing
• Frequency response: 60Hz
• Noise reduction: squelch
• Signal-to-noise ratio: > 105dB
• Audio output, balanced: 2 x XLR
• Audio mix output, unbalanced: 6.3 mm jack
• Controls: 2 x mute level, 2 x volume
• Display: 2 x audio signal, 2 x HF signal, power
• Operating voltage: 12 - 18 V DC, external power supply, 400 mA
• Width: 235mm
• Height: 44mm
• Depth: 118mm
• Weight: 0.4kg
