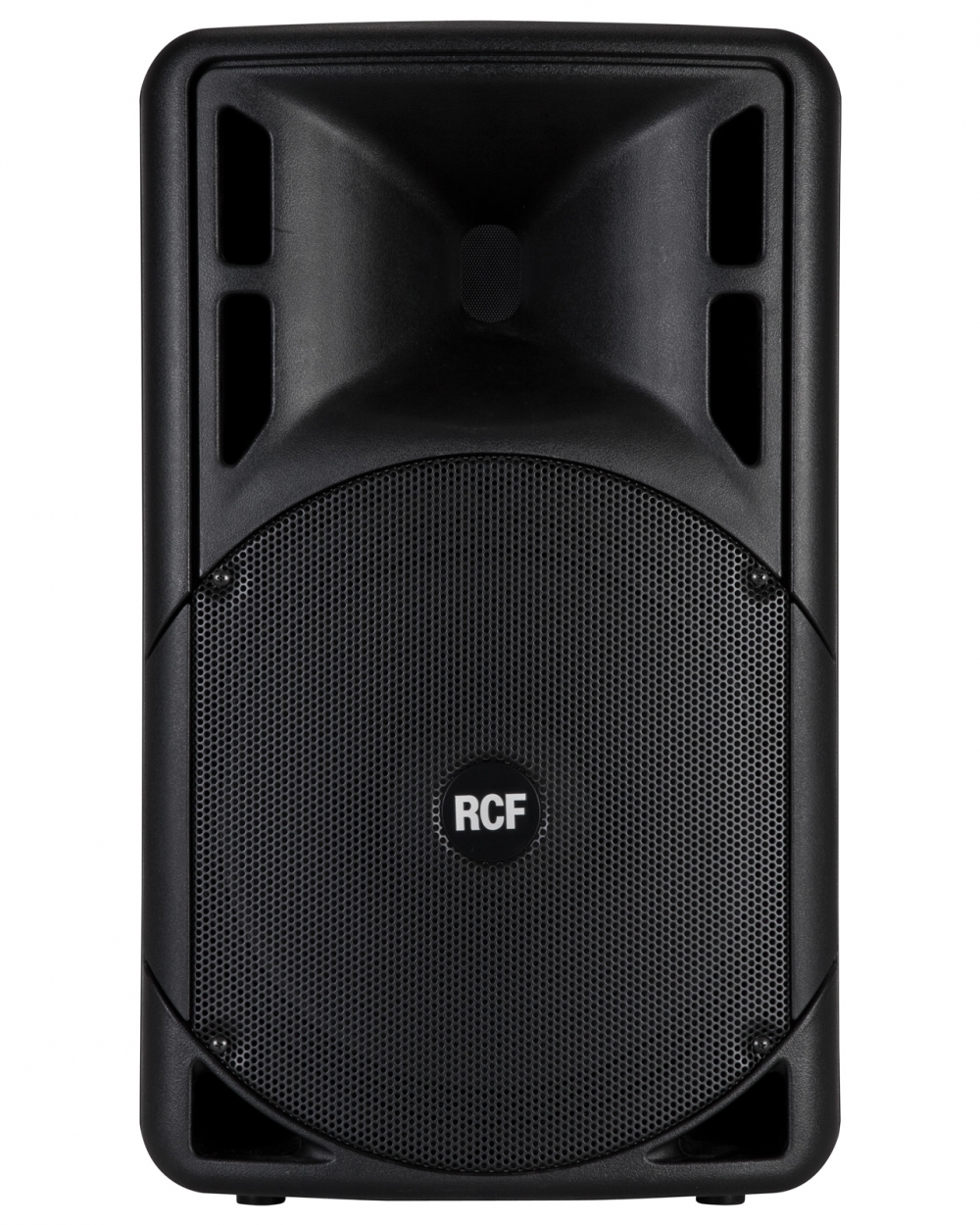

RCF ART 315-A MKIII active two-way speaker 15″+1″

RCF ART 315-A MKIII

ART 315-A is the perfect speaker for live sound situations where extra vocal punch and extremely accurate high frequency response is needed.
The 15” woofer delivers a very tight punchy bass and an accurate reproduction of the midrange . The high frequencies are precise and natural thanks to the compression driver with mylar dome in front of a low compression, optimised geometry, radial phase plug. Thanks to the versatility in both monitoring and playback, it represents the ideal multipurpose solution.

Features:

• 800 Watt Peak, 400 Watt RMS bi-amplification
• 129 dB max spl
• 90 x 60, Wide dispersion constant directivity horn
• 15" woofer, high power 2.5" voice coil
• 1" HF driver, mylar dome, 1.5" voice coil

Specifications:

ACOUSTICAL
• Frequency Response -3 dB: 45 Hz ÷ 20000 Hz
• Max SPL: 129 dB
• Horizontal coverage angle:90°
• Vertical coverage angle : 60°
• Compression Driver: 1", 1.5" v.c.
• Woofer: 15", 2.5" v.c.

INPUT/OUTPUT
• Input signal: bal / unbal
• Input connectors: xlr
• Output connectors: xlr
• Input sensitivity: 0 dBu
• Mic. Input Sensitivity :-40

PROCESSOR SECTION
• Crossover frequencies: 1650 Hz
• Protections: DC / short cir.
• Limiter: Fast limiter
• Controls: Volume, EQ settings

AMPLIFIER SPECIFICATIONS
• Total power: 800 W PEAK
High frequencies: 200 W PEAK
Low frequencies: 600 W PEAK
• Total power: 400 W RMS
High frequencies: 100 W RMS
Low frequencies: 300 W RMS
• Cooling: Convection
• Connections: VDE conncector in

CABINET
• Cabinet Material: Composite PP
• Hardware: 4xM10 flying p.
• Handles: 2 side, 1 top
• Pole Mount/Cap: Yes
• Colour: Black

PHYSICAL SPECIFICATIONS
• Height: 680 / 26.67 mm/inch
• Width: 405 / 15.94 mm/inch
• Depth: 345 / 13.58 mm/inch
• Net Weight: 19 / 41.8 kg/lbs
