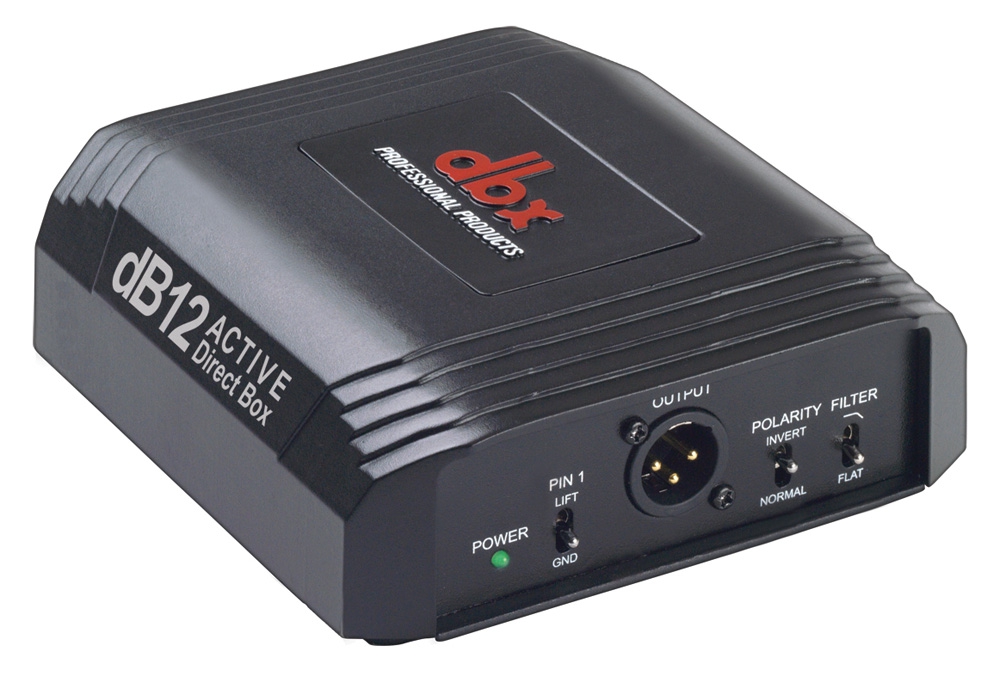

DBX DB-12 Active Di-Box

Product:	DBX DB-12 Active Di-Box
Brand:	DBX
Item number / Code:	142391 / DBX-DB-12
Current availability:	0 pcs.
Note! The price of this product may have changed. Please contact our team to receive more information on the availability and price of this item.
Key words:	DBX DB-12 Active Di-Box, DBX DB-12, DBX DB 12, DBX DB12, DB-12, DB 12, DB12
Ask a Product Expert:	Jakub Pindelski, tel. +48 717974679, email: [email protected]

DBX DB-12

Features:

• Premium Performance
• Rugged Design
• Stackable Chassis with Durable Rubber Foot
• Gold-plated Neutrik XLR Connector
• Premium Chrome Toggle Switches
• Hi-Z 1/4" Input Jack
• Parallel 1/4" Thru Jack
• Transformer Isolated
• Premium Shielded Custom dbx Transformer
• Balanced XLR Lo-Z Output
• 3-Way 0/20/40 dB Pad Switch
• Flat/High-Cut Filter Switch
• Output Polarity Invert Switch
• Ground Lift Switch
• Phantom Powered
• Green LED Phantom Power Indicator
• +48V Phantom Operation
• Low-Noise Active Circuitr

Specifications:

• Input: 1 instrument/line/speaker level
• Input Connectors: 1/4" jack
• Input Type: Unbalanced, RF filtered
• Insert Impedance: 150k Ohm typical
• Max Input: +20dBu (0dB pad); +40dBu (20dB pad); +60dBu (40dB pad)
• Output (Thru): 1 parallel from input jack, 1/4" Unbalanced, RF filtered
• Output Connectors: XLR male balanced
• Output Impedance: 150k Ohm typical
• Max Output: 0dBu
• Transformer: Custom dbx mu-metal-shielded
• Frequency Response: 20Hz to 20kHz, +/-2.5dB
• Noise: <-105dB unweighted, 22kHz BW
• THD: <0.01%, 20Hz to 20kHz BW; <0.005%, 1kHz
• Dimensions: 5.82" L X 5.44" W X 2.20" H (148 x 138 x 56mm)
• Unit Weight: 1.4 lbs / 0.65 kg
