ADAM Audio S3X-V active speaker with stand

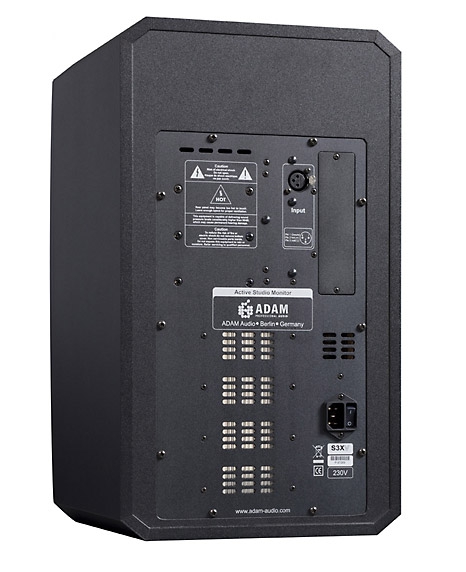

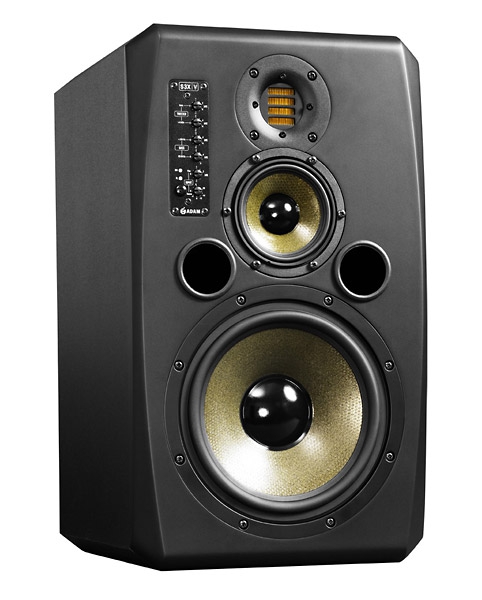

ADAM Audio S3X-V active speaker

Using the newly developed 4” HexaCone midrange and 9” HexaCone woofer combined together with the X-ART tweeter creates the unique S3X-V control monitor.

A step up over the smaller models, the S3X-V is capable of producing more power and volume along with a more detailed and homogeneous sound that will impress even the most experienced sound engineer. Whether the complex sonic images of an orchestra or the smooth tone of a jazz trio, the S3X-V reveals even the finest nuances of any material. The driver assembly of the S3X-V allows long time, non-fatiguing listening sessions.

Set contains: ADAM Audio S3X-V active speaker and Speaker stand BOX-200.

WOOFER:
• Number: 1
• Basket Ø: 9" (228 mm)
• Voice coil Ø: 2" (50 mm)
• Cone material: HexaCone

MIDRANGE:
• Number 1
• Basket Ø: 4.5" (116 mm)
• Voice coil Ø: 1" (25 mm)
• Cone material: HexaCone

TWEETER:
• Number: 1
• Type: X-ART
• Diaphragm area: 4 inch² (2420 mm²)
• Equiv. Diaphragm Ø: 2" (56 mm)
• Velocity transform ratio: 4:1
• Diaphragm weight: 0.17 g

BUILT-IN AMPLIFIERS:
• Woofer: 1
• Type: PWM
• Amp. power RMS / music: 250 W / 350 W
• Midrange: 1
• Type: PWM
• Amp. power RMS / music: 250 W / 350 W
• Tweeter : 1
• Type: A/B
• Amp. power RMS / music: 50 W / 100 W

CONTROL PANEL:
• Input Sensitivity (coarse): -20 to +8 dB (4 dB steps)
• Input Sensitivity (fine): -1.5 to +2 dB (0.5 dB steps)
• EQ 80 Hz: 0 to +6 dB (1 dB steps)
• High Shelf EQ: > 6 kHz ±4 dB (1 dB steps)
• Low Shelf EQ: < 150 Hz ±4 dB (1 dB steps)
• Tweeter gain: ±2 dB (0.5 dB steps)

INPUT CONNECTORS:
• Analog: XLR
• Digital (optional): AES/EBU / SPDIF / word clock

GENERAL DATA:
• Panel: Front
• Frequency response: 32 Hz - 50 kHz
• THD: > 80 Hz ≤0.6 %
• Long term output: ≥114 dB
• Max. peak: ≥124 dB
• Crossover frequencies : 350 / 2800 Hz
• Input impedance: 10 KOhm
• Weight: 34 lb (15,4 kg)
• Magnetically shielded: No
• Height x Width x Depth: 19" (485 mm) x 11" (281 mm) x 11.5" (295 mm)
• Warranty: 5 Years

DELIVERY CONTENTS:
• Power cord
• Manual

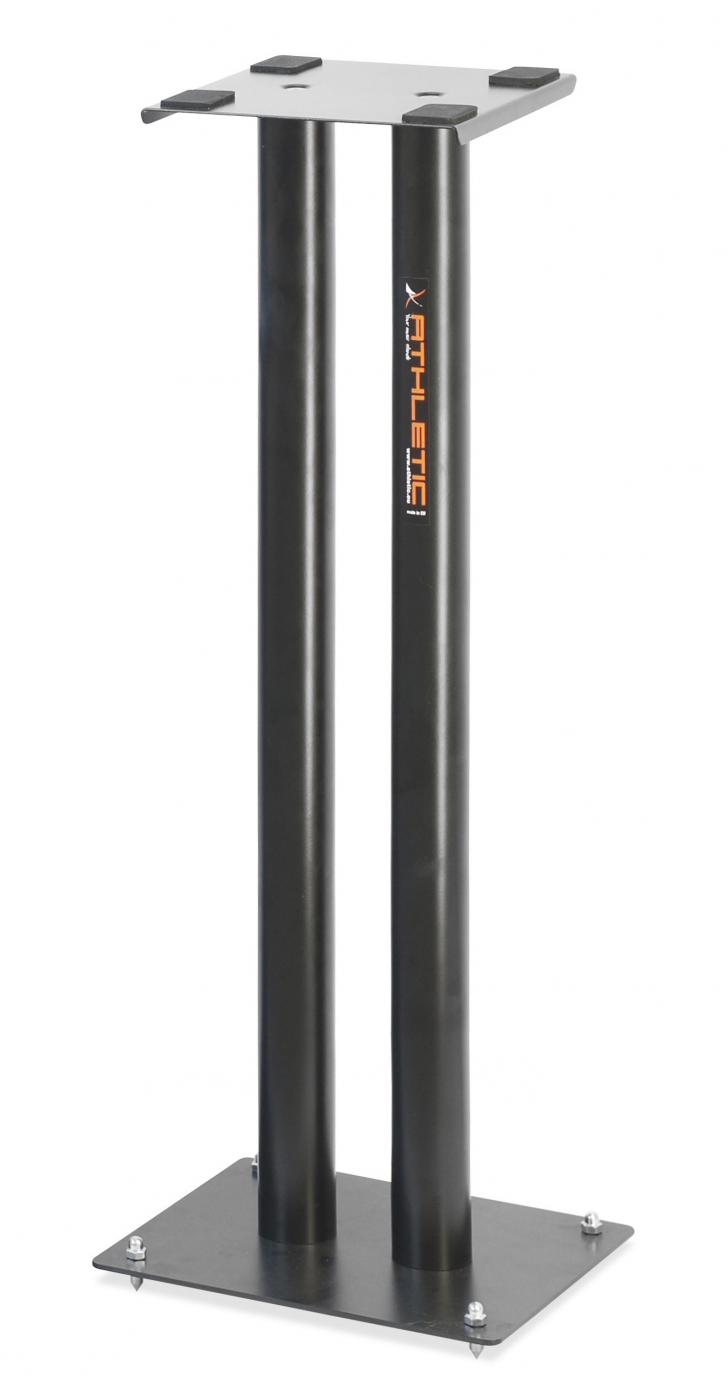

Speaker stand BOX-200

Proffesional, very stable studio monitor stand. It is offered in three sizes. The stand is equipped with adjustatble rubber fit and spikes, which makes it easy to adjust the stand to each surface type.

• plate size - 230 x 230mm
• height - box-204 - 400mm
- box-206 - 600mm
- box-208 - 800mm
• weight
- box-204 - 5,90 kg
- box-206 - 6,85 kg
- box-208 - 7,80 kg
• load capicity - 30kg
• available colours - black
