Shure BLXR Rack mount Wireless Receiver for PG, SM and Beta Wireless

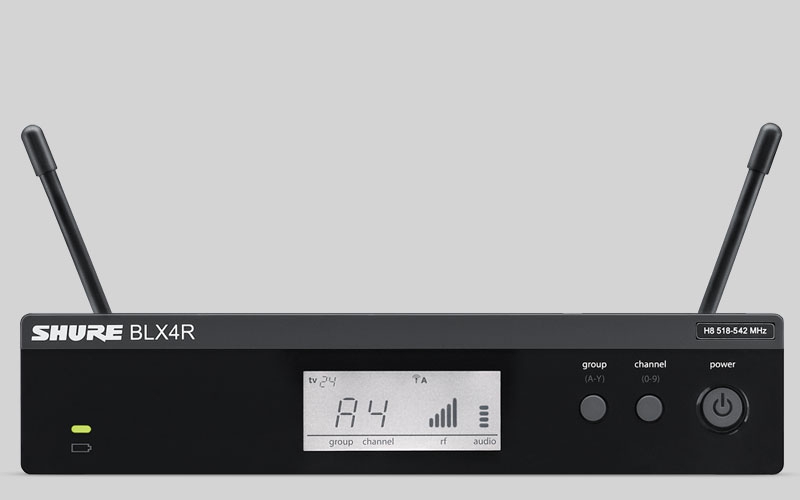

The Rack mount Analogue Wireless Receiver BLX4R provides improved linearity and frequency response for up to 12 compatible channels per group with group and channel scan for easy set-up.
• One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
• Up to 12 compatible systems per frequency band (region-dependent)
• XLR and ¼” output connectors
• Two-color audio status indicator LED
- Green: Normal audio levels
- Red: Excessive audio levels (overload/clipping)
• Adjustable output level
• Removable antennas for quick antenna distribution
• LC Display with detailed RF and audio metering
• Rack mount kit included

• Power supply: PS23
• Output impedance:
- XLR: 200 Ω
- 6.3 mm jack: 50 Ω
• Audio Output Level (at 1 kHz and ± 33 kHz deviation):
- XLR: -27 dBV (with 100 kOhm load)
- 6.3 mm jack: -13 dBV (with 100 k load)
• RF Sensitivity: 105 dBm for 12 dB SINAD
• Image Rejection:> 50 dB, typical
• Dimensions: 50 mm X 198 mm X 163 mm (H x W x D)
• Weight: 998 g
• Housing: Metal housing
• Supply voltage: 12-15 V DC, 260 mA, external power supply
