Yamaha MOXF6 Synthesizer

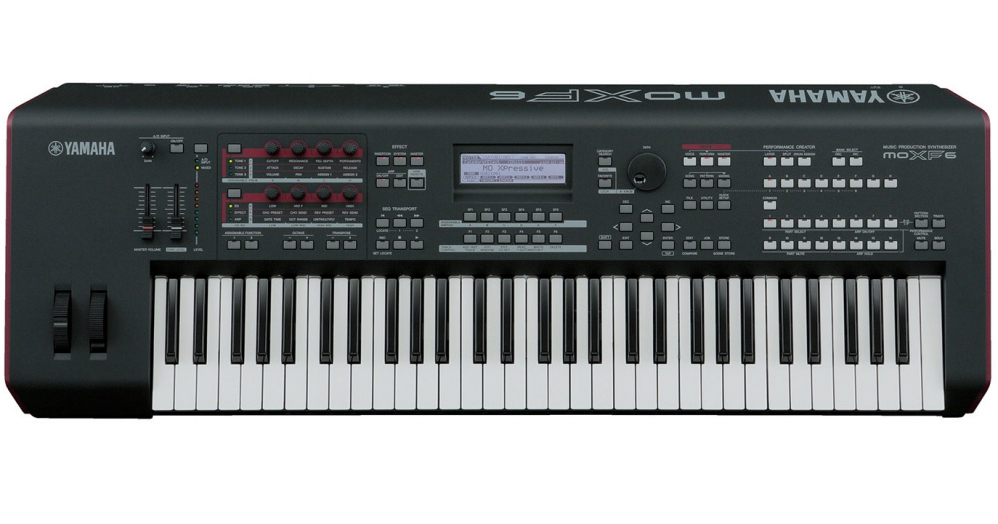

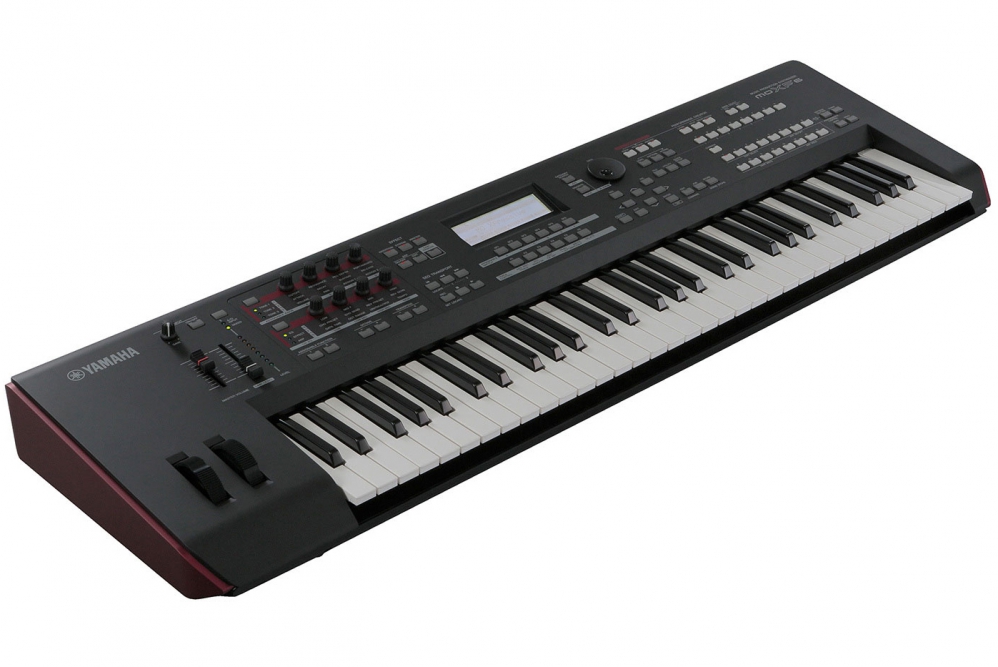

Yamaha MOXF6

The new MOXF series combines a MOTIF XF sound engine and Flash memory expandability, a MIDI keyboard controller with extensive DAW and VST control, USB Audio/MIDI interfacing, onboard sequencing, and an extensive DAW / VST software bundle.

• MOTIF XF sound engine
• VCM effects
• Flash memory expandability
• Built-in sequencer
• Performance mode to enhance your creativity
• Light and easy to carry
• 88-key Graded Hammer Standard (GHS) action and 61-key semi-weighted action

SPECIFICATIONS

Size/Weight
• Width: 1,030 mm
• Height: 125 mm
• Depth: 358 mm
• Weight: 7.1 kg

Tone generator
• Tone Generator: AWM2, with Expanded Articulation
• Maximum Polyphony: 128 notes
• Multi Timbral Capacity: 16 parts (Internal), A/D input part
• Wave: 741MB (when converted to 16-bit linear format), 3,977 waveforms
• Voices: Preset: 1,152 Normal Voices + 72 Drum Kits, GM: 128 Normal Voices + 1 Drum Kit, User: 384 Normal Voices + 32 Drum Kits
• Performance: User: 256 (up to 4 parts)
• Filter: 18 types
• Effects: Reverb x 9 types, Chorus x 22 types, Insertion (A, B) x 54 types x 8 parts, Vocoder x 1 (uses both Insertion Effect A and B blocks), Master Effect x 9 types, Master EQ (5 bands), Part EQ (3 bands, stereo)

Sequencer
• Note Capacity: Approx. 226,000 notes
• Note Resolution: 480 ppq (parts per quarter note)
• Maximum Polyphony: 124 notes
• Tempo (BPM): 5 – 300
• Song recording type: Real time replace, Real time overdub (with the exception of the Pattern Chain), Real time punch in/out (Song only), Step (with the exception of the Pattern Chain)
• Song tracks: Song: 16 sequence Tracks (Loop on/off can be set for each Track), Tempo Track, Scene Track, Pattern: 16 Phrase Tracks , Pattern Chain: Pattern Track, Tempo Track, Scene Track
• Songs: 64 Songs, Mixing Voices: 16 Voices per Song/Pattern (up to 256 Voices) , Mixing Templates: 32 for all Songs and Patterns
• Patterns: 64 Patterns (x 16 sections), Measures: 256 maximum
• Phrase: User Phrases: 256 per Pattern
• Arpeggio: Preset: 7,981 types, User: 256 types (MIDI Sync, MIDI transmit/receive channel, Velocity Limit, and Note Limit can be set. 4 Arpeggio parts can be played simultaneously.)
• Scene Memory: 6 per Song
• Sequence formats Original format, SMF format 0, 1 (Format 1 load only)

Other
• Master: User: 128 (Each master includes Master keyboard settings with 4 Zones, Assignable Knob settings, Program Change table.)
• Sequence Software compatible with the Remote Control function: For Windows: Cubase 7 series, SONAR X2, For Mac: Cubase 7 series, Logic Pro 9, Digital Performer 7 (Functions to be controlled differ depending on the software.)
• Controllers: Pitch Bend wheel, Modulation wheel, Assignable Knob x 8, [DATA] dial x 1, Assignable Function buttons x 2
Display: 240 x 64 dot, backlit LCD

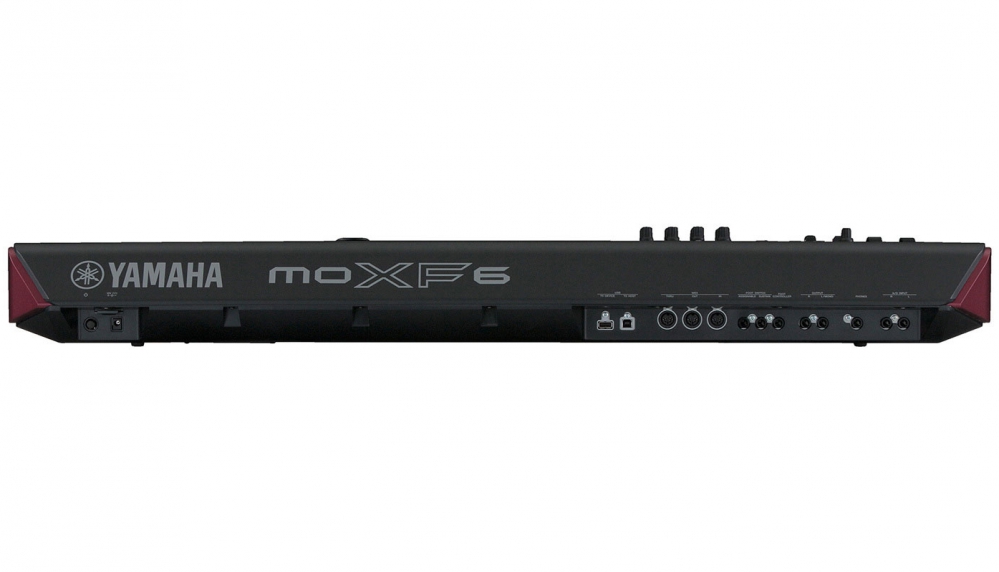

• Connectors: OUTPUT [L/MONO]/[R] (standard phone jack), A/D INPUT [L]/[R] (standard phone jack), [PHONES] (standard stereo phone jack), [FOOT CONTROLLER], FOOT SWITCH [ASSIGNABLE]/[SUSTAIN], MIDI [IN]/[OUT]/[THRU], USB [TO HOST]/[TO DEVICE], DC IN
• Power Supply: 13W
• Accessories: AC adaptor (PA-150 or an equivalent recommended by Yamaha), USB cable, Owner’s Manual, Online Manual CD-ROM x 1 (containing Reference Manual, Synthesizer Parameter Manual, and Data List), CUBASE AI DOWNLOAD INFORMATION
