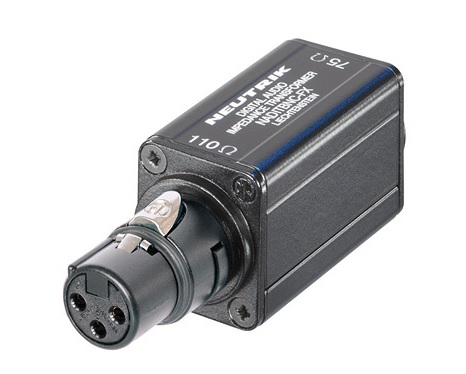

Neutrik NADITBNC-FX Digital Impedance Transformer Adapter

Neutrik NADITBNC-FX

The Neutrik NADITBNC-FX Digital Impedance Transformer Adapter is a cost-effective impedance matching adapter that allows long cable runs for digital audio signals via low attenuation coax lines. The adapter features a female XLR cable end 110 Ω input to female BNC 75 Ω output.

Features:

• Female XLR cable end 110 Ω input
• Female BNC 75 Ω output
• Cost-effective impedance matching adapters
• Allows long cable runs for digital audio signals via low attenuation coax lines
• Match balanced (110 Ω) to coaxial lines (75 Ω)
• Pre-wired in black anodized aluminum extrusions for increased durability
• Simple use, passive unit

Specifications:

• Connection Type: Adapter
• Gender: Female
• Frequency Range 0.1 to 6 MHz
• Rated Voltage: ≤5 Vpp / 250 mW
• VSWR: <1.1
• Return Loss: >26.4 dB
• Insertion Loss: <0.3 dB @ 0.1 MHz to 10 MHz
