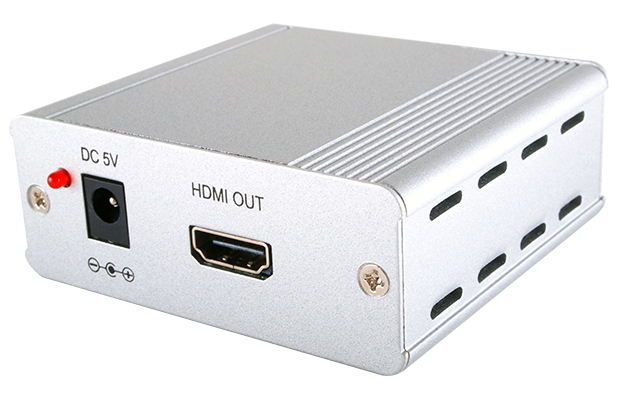

Cypress CH-107RXN HDMI over Single CAT6/7 Receiver

Cypress CH-107RXN

The Single CAT6 to HDMI Receiver can receive High Definition video (1080p/Deep Color) and audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) over a single run of CAT6 cable from a compatible transmitter unit and convert the signal to HDMI for display on a HDTV. It has the added benefit of a 7 step HDMI signal equalization switch to optimize the signal strength.

Specifications:

• HDMI, HDCP 1.1 and DVI 1.1 compliant
• Supports digital video formats in 'Deep Color' mode at up to 36-bit (12-bit/color)
• Supports lossless compressed Digital Audio formats (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio)
• Uses a single CAT6 cable for Data/DDC transmission
• Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality
• Supports HDMI cable distances of up to 10 meters at 1080p/8-bit and 12-bit resolutions
• Supports CAT6 cable distances of up to 45 meters at 1080p/8-bit resolution and 15 meters at 1080p/12-bit resolution
• Supports x.v.YCC

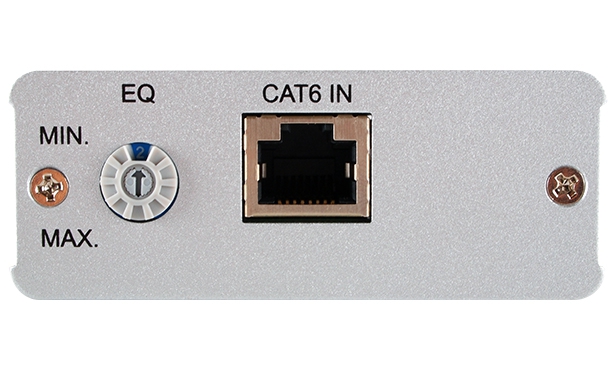

• 7 step EQ adjustment for HDMI signal equalization
• Inputs 1x RJ45 [1x HDMI & Propriety Data]

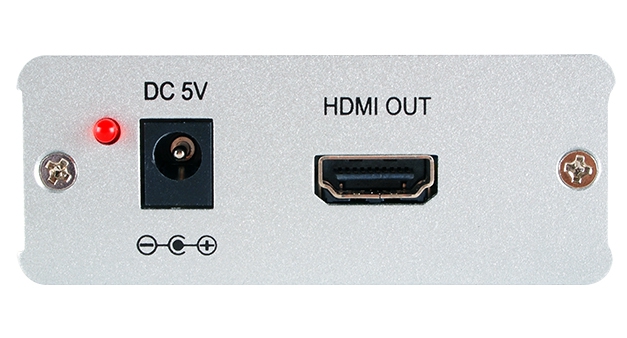

• Outputs 1x HDMI [1x Uncompressed AV and Data]
• PSU: 5V/1A
• Dimensions 78mm [W] x 72mm [D] x 30mm [H]
• Net Weight 90g
