Audio-Technica AT2022 X/Y Stereo Microphone

Audio-Technica AT2022 Stereo Microphone

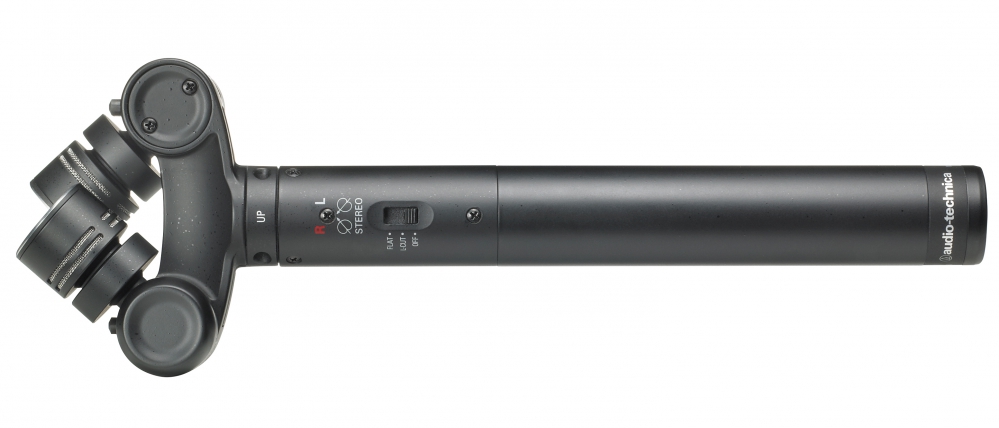

The AT2022 is a condenser microphone designed for stereo recording. Two unidirectional condenser capsules in an X/Y configuration pivot to allow for narrow (90°) or wide (120°) stereo operation. The capsules also fold flat for storage and transportation. Designed for general stereo recording and field sound capture, the AT2022 provides the spatial impact and realism of a live sound field. The microphone comes equipped with a stand clamp, AA battery, fuzzy windscreen and .5 m cable that terminates in a 3.5 mm stereo plug.

FEATURES
• X/Y stereo microphone with unique pivoting electret condenser capsules for ultimate flexibility
• Provides the spatial impact and realism of a live sound field
• Battery operation allows use with most recording devices
• Switchable low-frequency roll-off minimizes pickup of unwanted low-frequency noise
• User-selectable 90° or 120° stereo operation for narrow or wide pickup patterns
• Ideal for general stereo recording and field sound capture
• Excellent channel separation

SPECIFiCATIONS
• ELEMENTS: Fixed-charge back plate, permanently polarized condenser
• POLAR PATTERN: X/Y Stereo
• FREQUENCY RESPONSE: 20–20,000 Hz
• LOW FREQUENCY ROLL-OFF: 150 Hz, 6 dB/octave
• OPEN CIRCUIT SENSITIVITY: -41 dB (8.9 mV) re 1V at 1 Pa
• CHANNEL BALANCE: <2.5 dB
• IMPEDANCE : 200 ohms
• MAXIMUM INPUT SOUND LEVEL: 122 dB SPL, 1 kHz at 1% T.H.D.
• DYNAMIC RANGE (typical): 103 dB, 1 kHz at Max SPL
• SIGNAL-TO-NOISE RATIO: 75 dB, 1 kHz at 1 Pa
• BATTERY TYPE: 1.5V AA/UM3
• WARNING: The AT2022 is designed for battery operation only. Do not attempt to use when phantom power is present. Possible damage to the microphone may result.
• BATTERY CURRENT / LIFE: 1.2 mA / 500 hours typical (alkaline)
• SWITCH: Off, on/flat, on/roll-off
• WEIGHT: 270 g (9.5 oz)
• DIMENSIONS: 192.0 mm (7.56") long, 65.0 mm (2.56") maximum head diameter, 21.0 mm (0.83") body diameter
• OUTPUT CONNECTOR: Integral 3-pin XLRM-type
• CABLE 0.5 m (1.6') long, 3 conductor, shielded, vinyl-jacketed stereo cable with 3-pin XLRF-type connector at microphone end and 3.5 mm (1/8") TRS connector at output end
• ACCESSORIES FURNISHED: AT8405a stand clamp for 5/8"-27 threaded stands; fuzzy windscreen; battery; soft protective pouch
