Yamaha DTX542K Electronic Drum Kit

Yamaha DTX542K

The DTX542K features all DTX-PADs for snare and toms plus our exclusive 3-zone hi-hat pad as well as 3-zone choke-able ride and crash cymbals. Because the DTX-PADs offer a playability that is close to acoustic drums playing the DTX542K is more comfortable, helping to improve your drumming the more you play, and the pads integrate naturally into a hybrid kit. The DTX502 module includes 691 drum, percussion and effect sounds and offers comprehensive training functions, practice songs, and easy MIDI recording. The USB port allows plug and play control of VSTi software and lets you import custom wave files.

CONFIGURATION

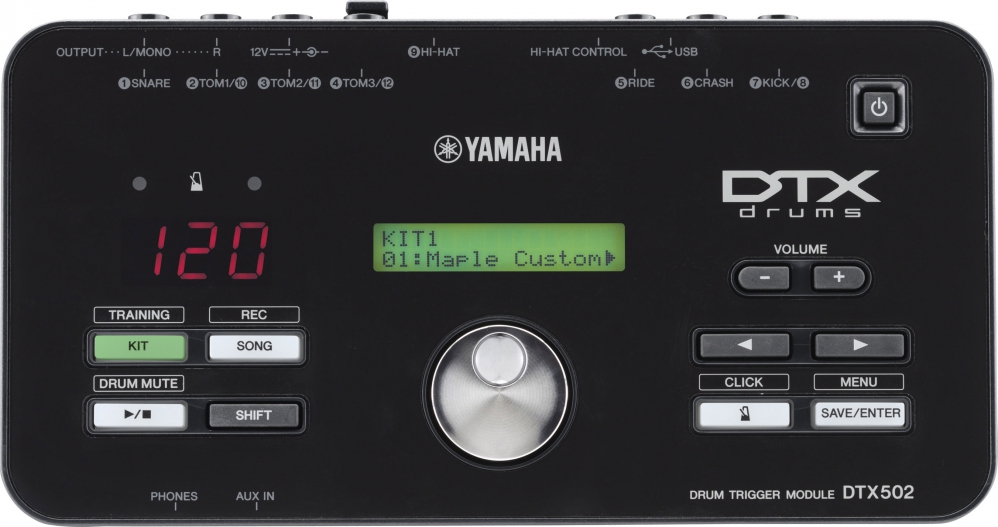

• Module: DTX502

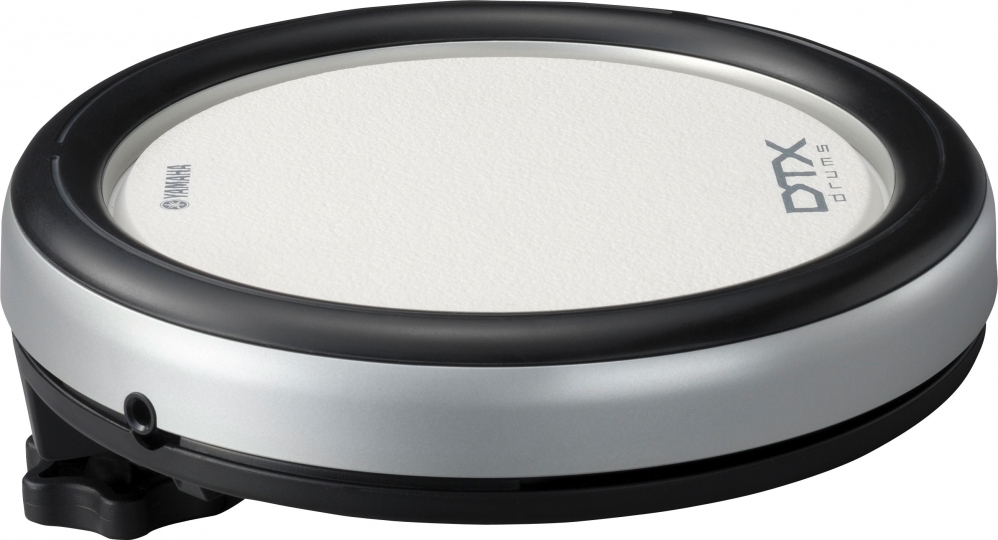

• Snare : XP80
• Tom: XP70 x 2
• Floor Tom: XP70
• Bass Drum : KP65
• Hi-Hat : PCY100 + HH65
• Crash Cymbal: PCY100
• Ride Cymbal : PCY135
• Rack : RS502

SPECIFICATIONS
• Width: 251 mm
• Height: 130 mm
• Depth: 48 mm
• Weight: 610 g
• Maximum Polyphony: 32 notes
• Voices: Drum and percussion: 691,Melodies: 128
• Effects: Reverb: 9, Master EQ: 2 bands
• Drum kits: Preset: 50 User: 50 (Total memory capacity of 1MB.)
• Note Capacity: Approx. 104,000 Notes (Total memory capacity of 1MB.)
• Note Resolution: 96 ppq (parts per quarter note)
• Song recording type: Real-time replace
• Song tracks: 1 track
• Songs: Demo: 1, Practice: 37, Pad: 22, User: 40
• Sequence formats: Proprietary, SMF format 0/1
• Tempo: 30 to 300 BPM, Tap Tempo supported.
• Beat: 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16
• Timing: Accent, Quarter note, Eighth note, Sixteenth note, Triplet
• Training Functions: Groove Check, Rhythm Gate, Measure Break, Tempo Up/Down, Change Up, Pad Gate, Part Mute, Fast Blast
• Connectors: OUTPUT [L/MONO] (Standard mono phone), OUTPUT [R] (Standard mono phone), Trigger inputs 1, 5, 6, 9 (Standard stereo phone, L: Trigger, R: Rim switch), Trigger inputs 2, 3, 4, 7 (Standard stereo phone, L: Trigger, R: Trigger), HI-HAT CONTROL (Standard stereo phone), AUX IN (Stereo Mini), PHONES (Standard stereo phone), USB TO HOST
• Accessories: Power adaptor (PA-130), Module holder, Module holder fastening screws x2, Owner's Manual
• Samples: 20 waves (maximum)
• Sample Data Bits: 16 bits
• Sampling Time * Mono/Stereo: 44.1kHz: 12 sec (mono)
• Sample formats: WAV, AIFF
