Palmer PPB10 audio spliter

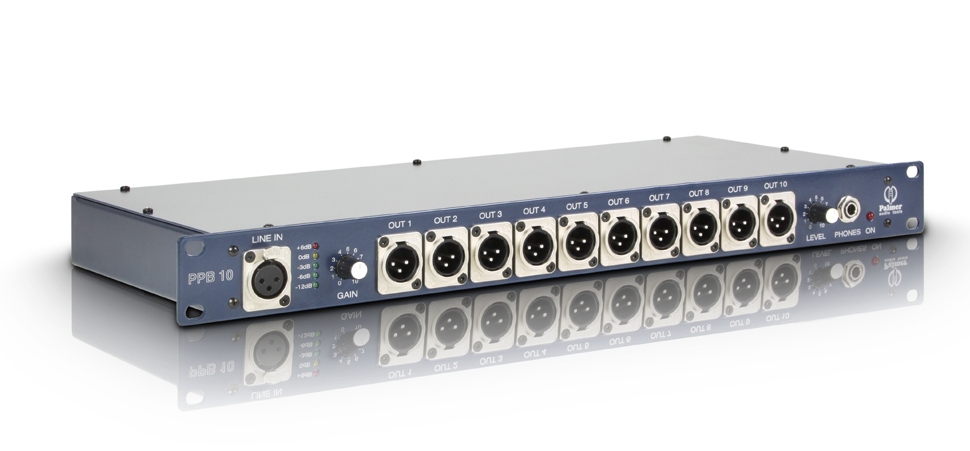

Palmer PPB10

The PPB10 is a special kind of audio splitter in that it splits one incoming signal up to twenty outputs (as opposed to the usual
three). This splitter is especially intended for press conferences, in which a speaker addresses a number of journalists. Instead of each journalist having to place his or her own microphone in front of the speaker, the PPB10 splits up the signal of one microphone up to twenty outputs.

Specifications:

INPUTS:

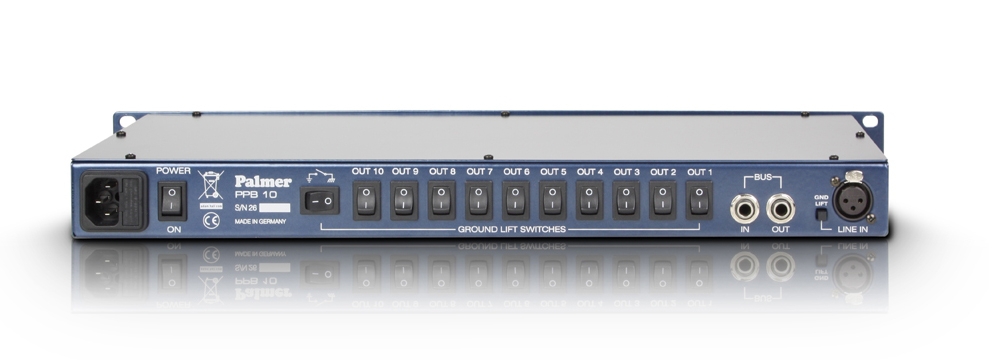

• XLR/f parallel connectors on the front and rear - transformer balanced, ground lift switch. Nominal impedance 10kOhms
• Nominal input level: 0dBu, max. +20dBu
• Max. amplifi cation to the outputs: 25dB
OUTPUTS:
• 10 transformer-balanced outputs XLR/m with ground lift switch.
• Nominal output level +4dBu at 600Ohms load and 0dB LED meter
• Nominal output impedance: 300Ohms
• Headphone output: 6,3mm (1/4”) stereo jack, tip and ring connected together
• Suitable for headphones from 8 to 200Ohms, volume steplessly variable
• 5 segment LED chain: -12dB, -6dB, 0dB, +3dB, +6dB. To monitor the output level
• Bus in and out via mono jack to connect several units
• Power supply 230/240VAC, max power consumption 10Watts
MECHANICS:
• 19”, 1U Steel housing 205mm deep
• Weight: 4Kg
