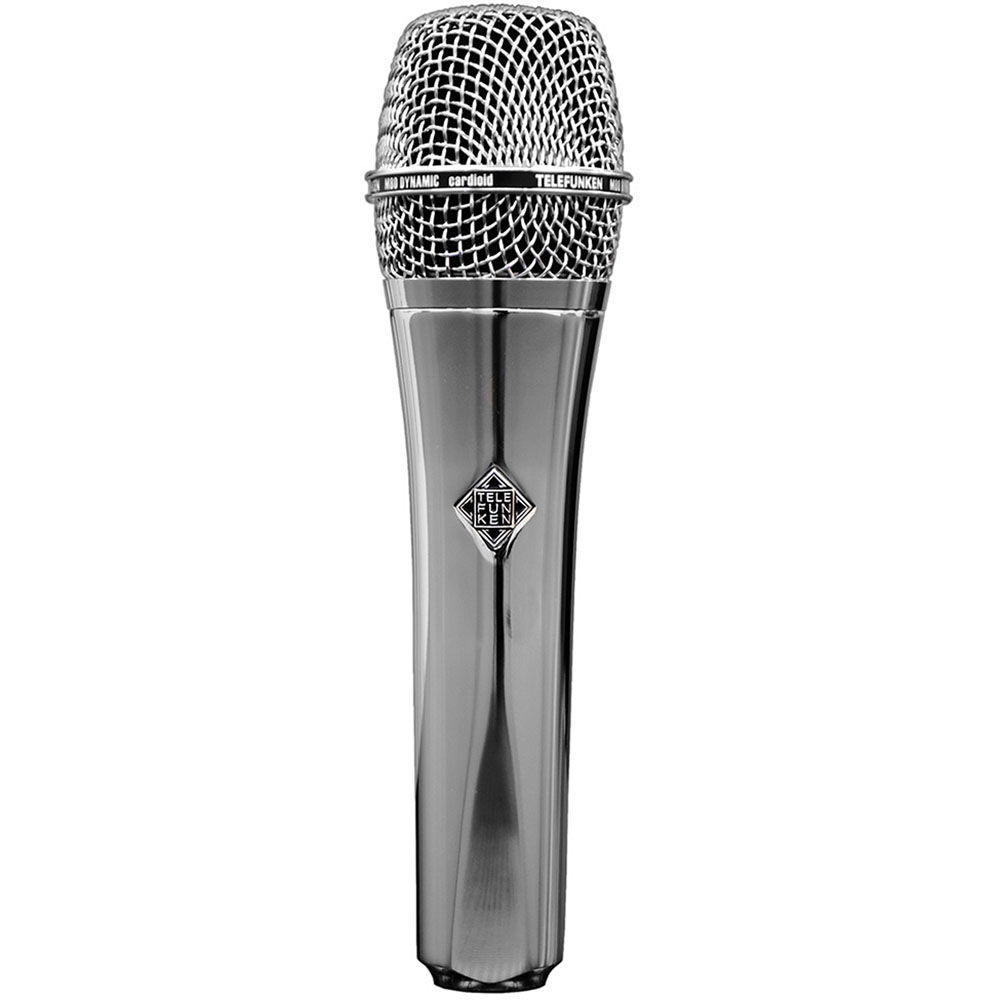

Telefunken M80 Standard dynamic microphone

Telefunken M80 Standard

Featuring a wider frequency response and higher SPL capabilities the M80 delivers condenser-like performance in a rugged dynamic design, producing a microphone equally suitable for voice, instruments or drums on both stage and in the studio. Due to its low mass capsule and super thin (yet surprisingly rugged) capsule membrane the M80 presents a wider range of emotion from a live vocal with an intimacy that has been traditionally reserved for studio quality condenser microphones.
The head grill and capsule assembly have been designed to reduce proximity effect resulting in added low-end clarity for vocals, while still providing strength and authority with an open airy character. A tight cardioid polar pattern and a frequency response boasting a subtle rise in the high-end result in a microphone that is ideal for live vocal applications.

Specifications:

• Type: Dynamic Moving Coil
• Capsule: 25 mm
• Frequency Range: 50 Hz / 18 kHz
• Polar Pattern: Super Cardioid
• Sensitivity: 1.54 mV/Pa
• THD at 1kHz at 1Pa: n/a
• Output Impedance: 325 Ω
• Maximum SPL: 135 dB
• Non Linear Distortion: n/a
• Self Noise (Amplifier): n/a
• Tube Type: n/a
• Power Supply: n/a
• Size: 184 mm L x 48 mm Dia.
• Weight: 387 g
