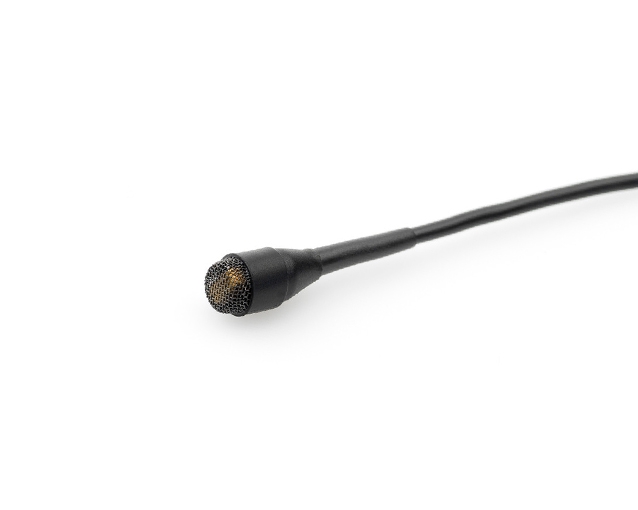

DPA 4061-BM microphone

DPA 4061-BM

The New d:screet 4061 Miniature Microphones are the versatile workhorses that adapts to your needs. With eminent sound quality, a large range of accessories, and adapters available for all pro wireless systems, the d:screet Miniature Mics are the obvious choice for any application requiring a big sound and a small footprint.
Originally designed for use with wireless systems in theater, television and close-miked instrument applications, the d:screet 4061 Miniature Omnidirectional Microphone is highly unobtrusive. Because of it's small size, these tiny condensers exhibit an exceedingly accurate omnidirectional pattern and therefore do not need to be aimed directly at the sound source to achieve quality pickup.

Features:

• Extremely rugged and reliable
• Exceptional audio quality with low noise and high sensitivity
• Adapts to all pro wireless systems
• Large selection of accessories

Specifications:

• Principle: Pressure

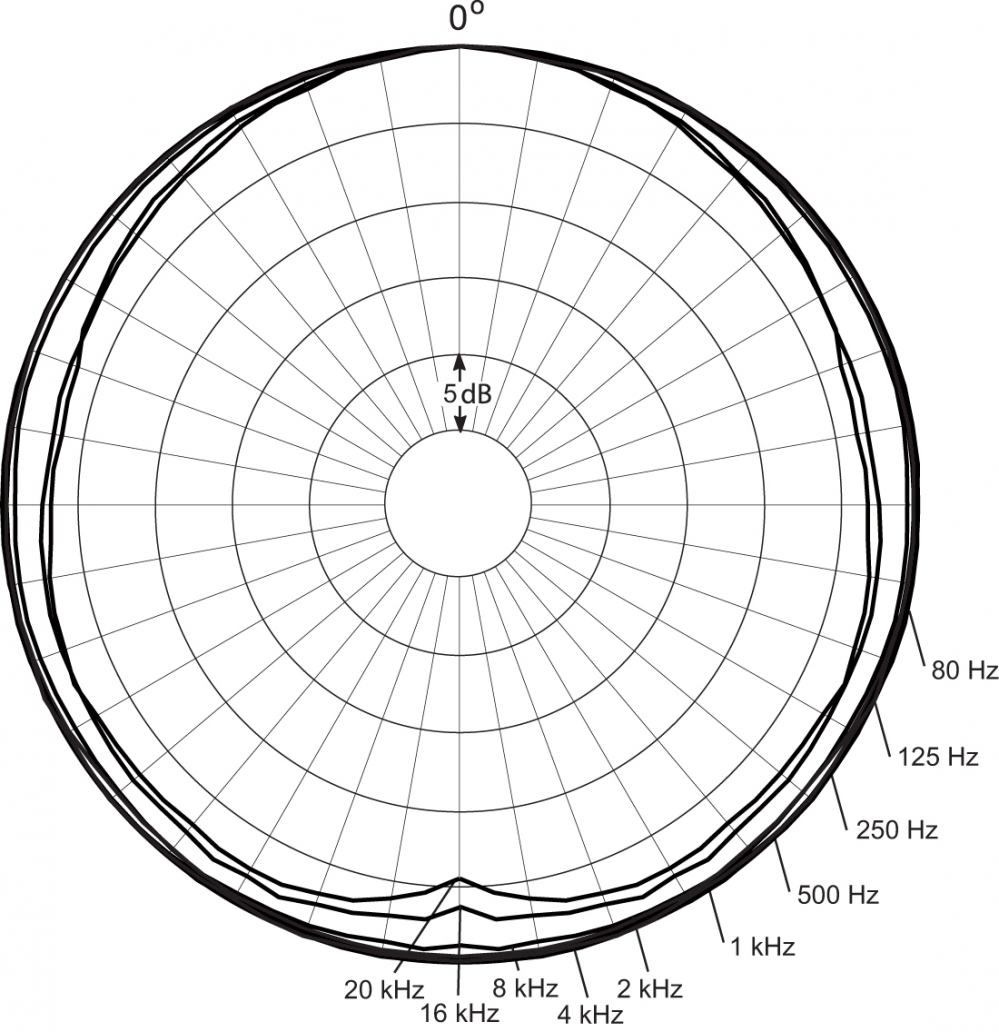

• Polar pattern: Omni
• Power supply: Min. 5 V - max. 50V by adapter DPA,

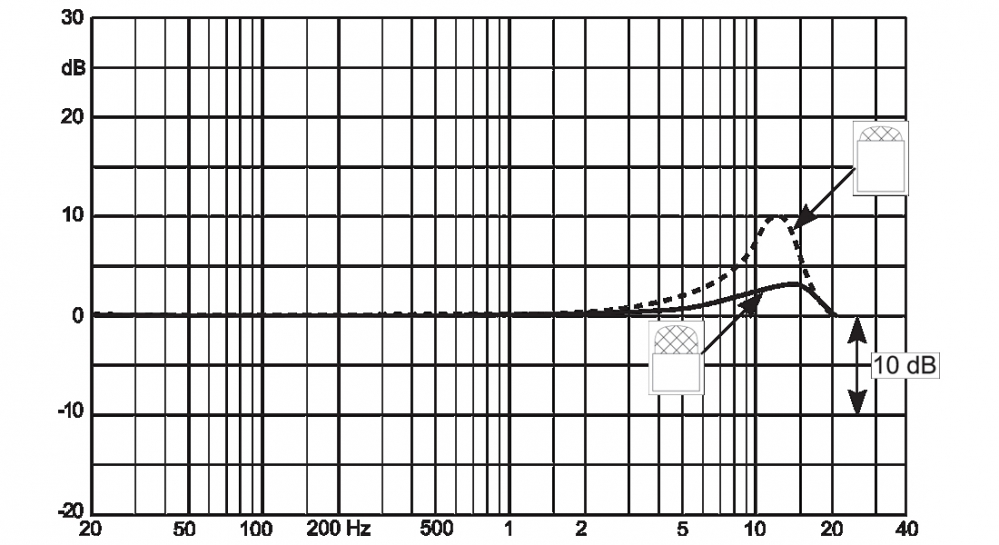

• Frequency range (± 2 dB):
- Screening Grid "Soft boost" 20 Hz - 20 kHz, 3 dB
- Soft boost: 8 - 20 kHz
- Raise at 12 kHz,
- Low-cut -10 dB at 20 Hz,
• Nominal sensitivity (± 3 dB at 1 kHz): 6 mV / Pa; -44.5 DB relative to 1 V / Pa
• Max. SPL without distortion: 144 dB
• Dynamic Range: Typically 97 dB
• Equivalent noise level [A-weighted]: typically 26 dB (A) for the 20 μPa (max. 28 dB (A)),
• Equivalent noise level (ITU-R BS.468-4): typically 38 dB (max. 40 dB)
• SNR 1 kHz to 1 Pa (94 dB SPL): 68 dB (A)
• Total Harmonic Distortion (THD):
- <1% THD to a peak 123 dB SPL.
- <1% THD for the RMS value of 120 dB SPL,
• Output Impedance: 30 - 40 Ohm
• Operating temperature: -10 to 45 ° C
• Maximum cable length: Up to 300 m,
• Connector: MicroDot,
• Dimensions: 5.4 x 12.7 mm
• Weight: 7.5g
