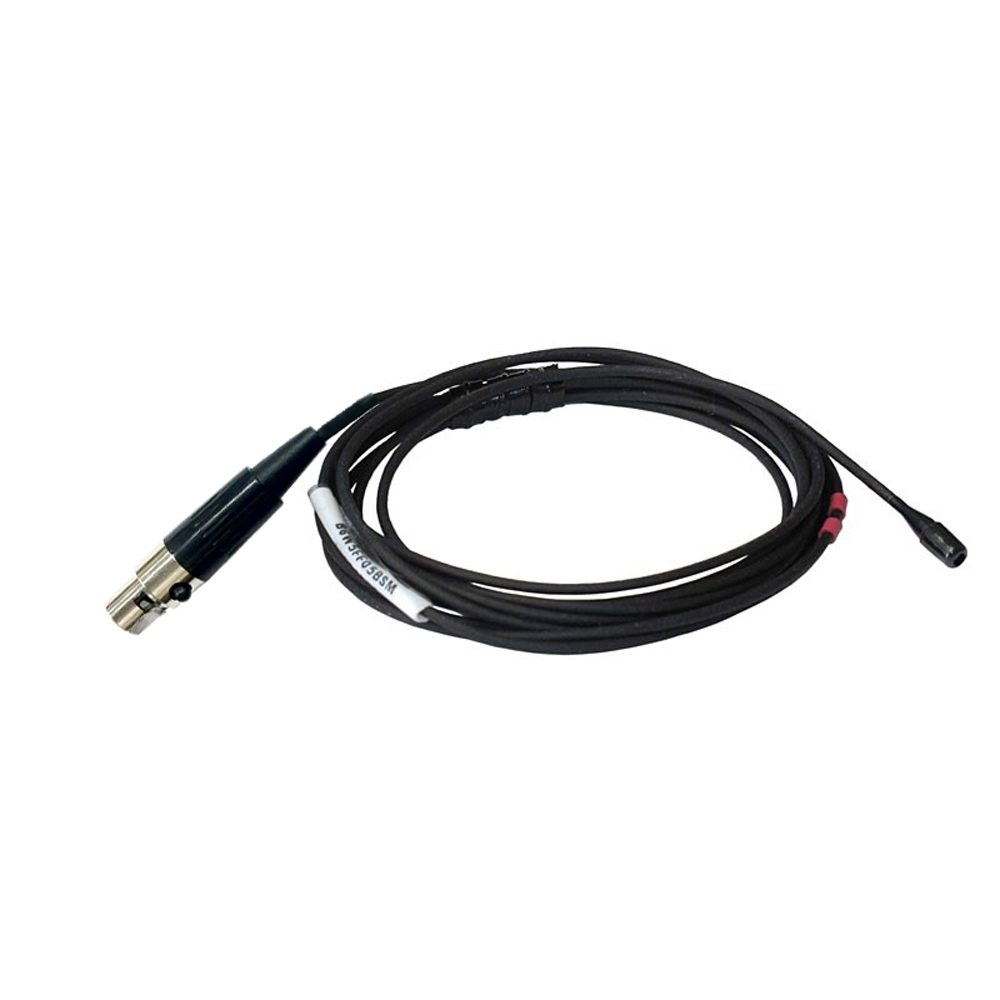

Countryman B6W5FF05BSL lavalier microphone

Countryman B6W5FF05BSL

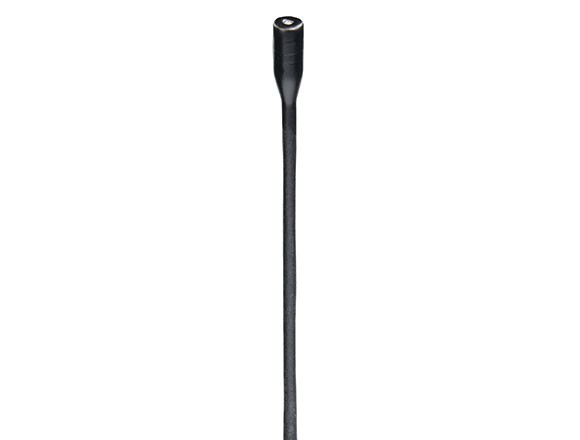

The smallest lavalier in the world, exceptional performance that hides anywhere. Only one tenth of an inch in diameter, the B6 is the smallest lavalier in the world and outperforms microphones many times its size. The changeable protective caps provide moisture resistance and color options and let you shape the frequency response to suit different applications or to match other microphones. With exceptionally low handling noise and rugged construction, the B6 is the ideal choice for theater, broadcast, churches, and general lavalier applications.

The B6 Lavalier is supplied with:

• Carrying case
• Black and white cable clips
• Windscreen
• Protective caps (+0, +4, and +8 dB)

Specifications:

• Frequency response: 20 hz to 20 khz
• Operating current: 500 ua
• Operating voltage: 1 to 2 volts
• Power supply voltage: +3v with 2.7 kohm load, +5v with 6.8 kohm load, +9v with 15 kohm load
• Weight: 0.07 oz (2 g)
• Sensitivity: w4 (gray band): 16.0 mv/pascal, W5 (red band): 7.0 mv/pascal, W6 (blue band): 2.0 mv/pascal
• Equivalent acoustic noise: w4: 24 dba, W5: 29 dba, W6: 39 dba
• Overload sound level: w4: 120 db spl, W5: 130 dba spl, W6: 140 dba spl
• Cable length: 5 feet
