Elation E-Node 4 - Artnet / DMX

Product:	Elation E-Node 4 - Artnet / DMX
Brand:	Elation
Item number / Code:	167712 / ELAT-E-NODE-4
Current availability:	0 pcs.
Note! The price of this product may have changed. Please contact our team to receive more information on the availability and price of this item.
Key words:	Elation E-Node 4 - Artnet / DMX, Elation E-NODE-4, Elation E NODE 4, Elation ENODE4, E-NODE-4, E NODE 4, ENODE4
Ask a Product Expert:	Marcin Szampowalski, tel. +48 717974679, email: [email protected]

Elation E-Node 4 - Artnet / DMX

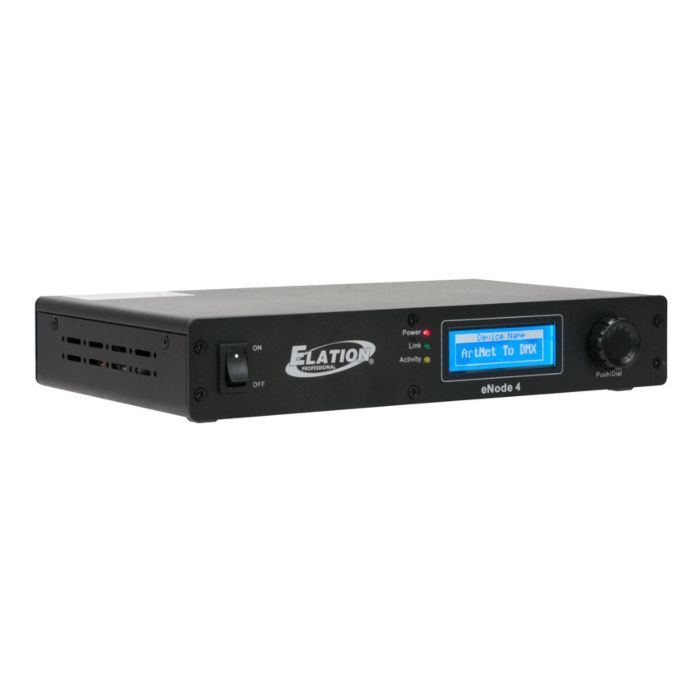

The eNode4 is an Ethernet node that serves four DMX512 outlets, compatible with the Art-NET protocols. All 4 outlets conform to DMX512-A and can be used as input or output. The two Ethernet links on the rear are 10/100BaseTX connections on Neutrik RJ45 etherCON connectors. The eNode4 embeds a built-in switch which allows you to use the converter as an Ethernet repeater. All configuration is done through the on-board display and push dial. The eNode4 can be set on a flat surface or mounted to a truss structure using the quick lock omega bracket, which is included.

Features:

• 4) Universal DMX Ports (can be set as Input or Output)
• (2) RJ45 TCP/IP 10/100M Ethernet Connections
• Rotary Menu Wheel / Function Selection Button
• LCD Menu / Function Display
• PowerCON Power In
• Auto MDI/MDIX, DMX-512 and ArtNet Support
• ArtNet - DMX Bilateral Signal Conversion
• DMX Splitter Function (1Input / 3 Outputs)
• LCD Display & LED Indicators
• Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices)
• Backup Mode
• (4) 5pin DMX Ports
• (2) RJ45 TCP/IP 10/100M Ethernet Connections
• Rotary Menu Wheel / Function Selection Button
• LCD Menu / Function Display
• PowerCON Power In
• Length: 10.0” (255mm)
• Width: 6.8” (173mm)
• Vertical Height: 1.7” (43mm)
• Weight: 3.5 lbs. (1.6kg)
