CAMEO QUADROLL 40 4-Head Barrel Scanner

CAMEO QUADROLL 40

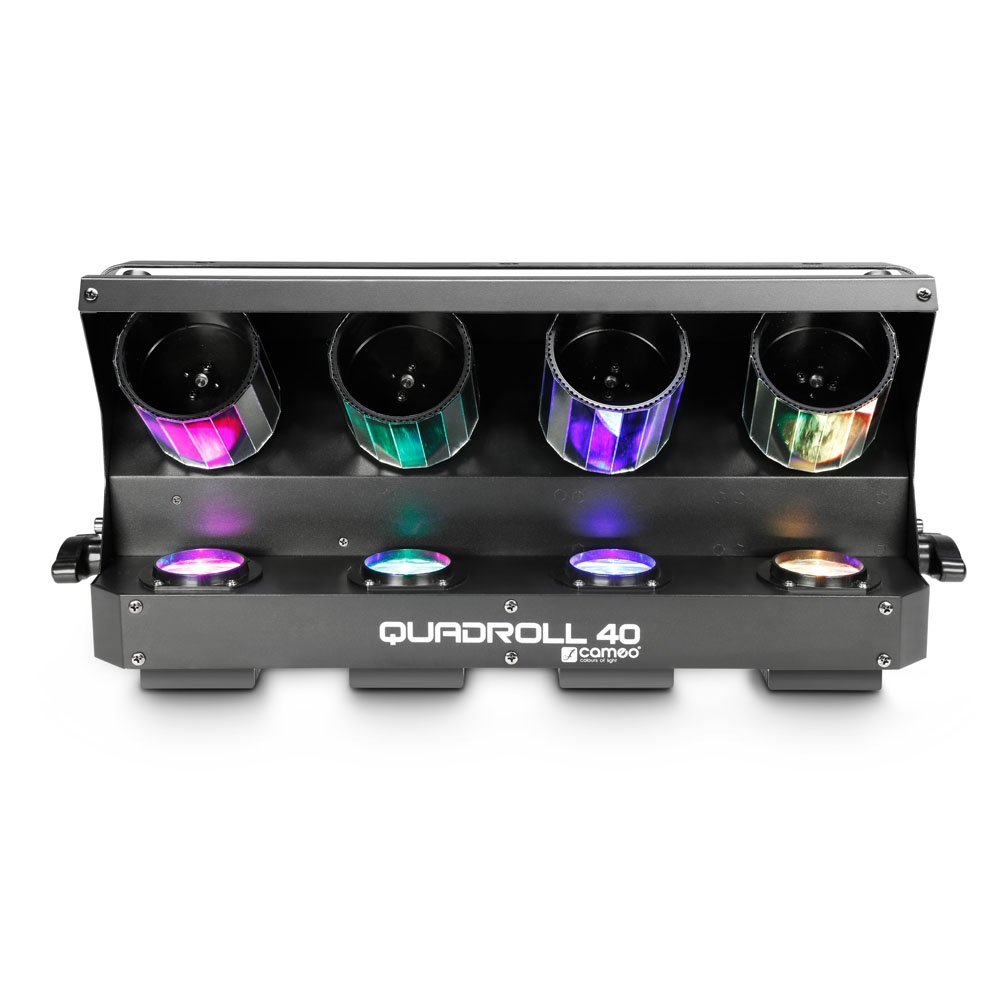

Creating awesome moving light effects the Cameo QuadRoll 40 features four mirrored barrels with dedicated high-power 10 watt Cree quad LEDs. The rotating barrels are driven by quiet, high-quality stepper motors swivelling intense, tightly focused RGBW beams with a 4.5° angle around the room.

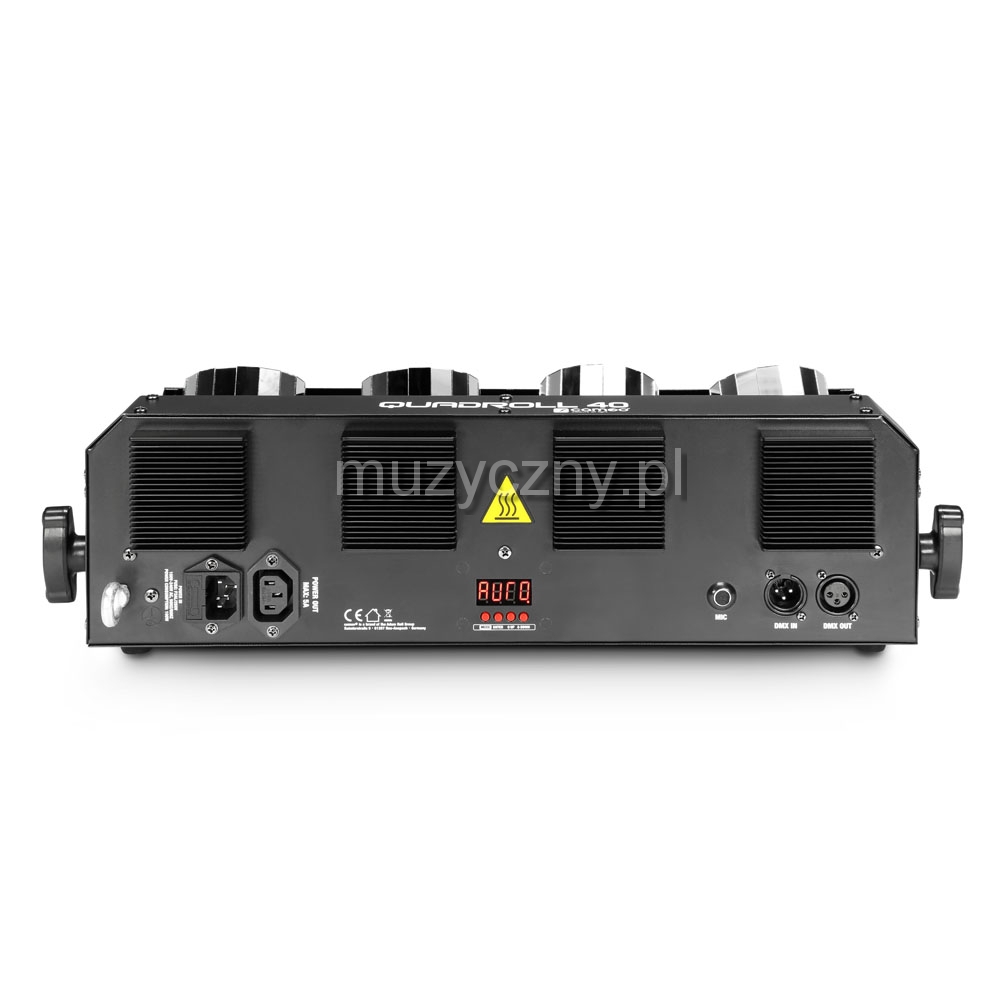

The QuadRoll 40 includes four modes of DMX control with adjustable rotation speed, dimmer and 1 to 20 Hz strobe functions, 16 automated light shows, sound activation and master, slave and standalone capability. The black metal enclosure sports four heatsinks for efficient convection cooling, IEC power and 3-pin DMX inputs and outputs and a 4-button display for easy, intuitive operation.
Running on 100 – 240 V AC, the compact fixture weighs only 5.1 kg and comes with a universal bracket for multiple mounting options. The QuadRoll 40 is ideal for mobile DJs, entertainers and fixed installations in bars, clubs and discotheques.

Features:

• 4-head barrel scanner with four 10W Cree RGBW LEDs
• Quiet, high-quality stepper motors
• Adjustable barrel rotation speed
• 4 modes of DMX control plus sound activation
• Master, slave and standalone operation
• 16 automated light shows
• Dimmer and high-speed strobe functions
• 4-button display for easy operation
• Universal mounting bracket

Specifications:

• Colour spectrum: RGBW
• Number of LEDs: 4
• LED type: 10 W Cree
• Dispersion: 4.5°
• DMX input: XLR 3-pin male
• DMX output: XLR 3-pin female
• DMX mode: 4-channel, 2-channel, 18-channel, 12-channel
• DMX Functions: strobe, sound control, Dimmer, colour macro, Barrel Movement, Auto 1-16
• High Speed Strobe: 1 - 20Hz
• Standalone modes: Auto 1-16, sound control
• Controls: Enter, Value Up, Value Down, mode
• Indicators: LED Display
• Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
• Power consumption: 100W
• Power connector: IEC power connector female, IEC power connector male
• Housing material: metal
• Cabinet colour: black
• Cooling: Convection
• Illuminance: white 41300lx @ 1m, red 17300lx @ 1m, green 23500lx @ 1m, blue 6000lx @ 1m
• Width: 462mm
• Height: 221mm
• Depth: 137mm
• Weight: 5kg
