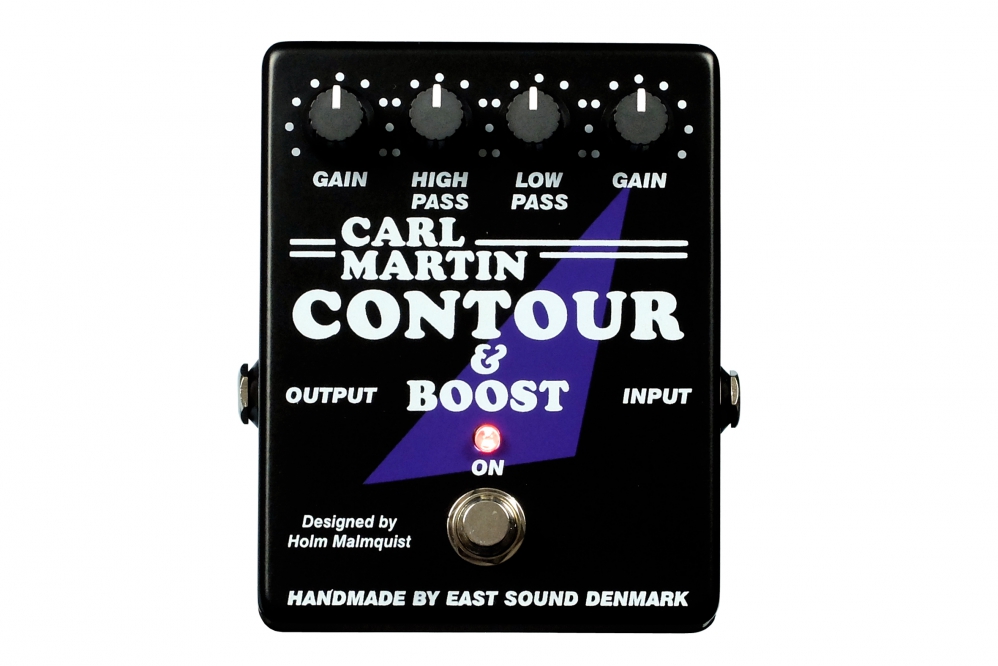

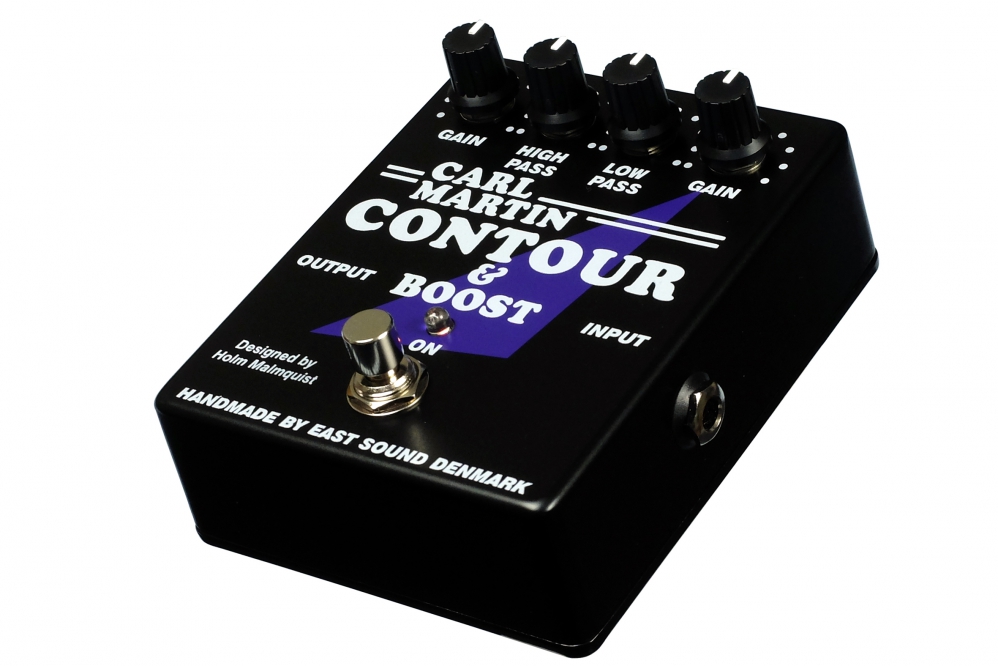

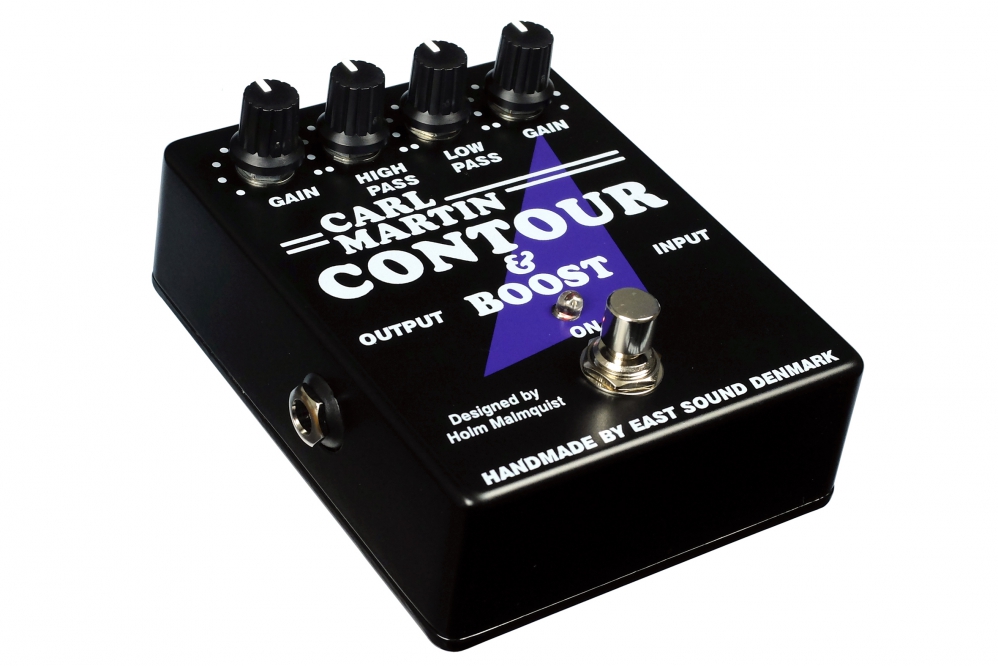

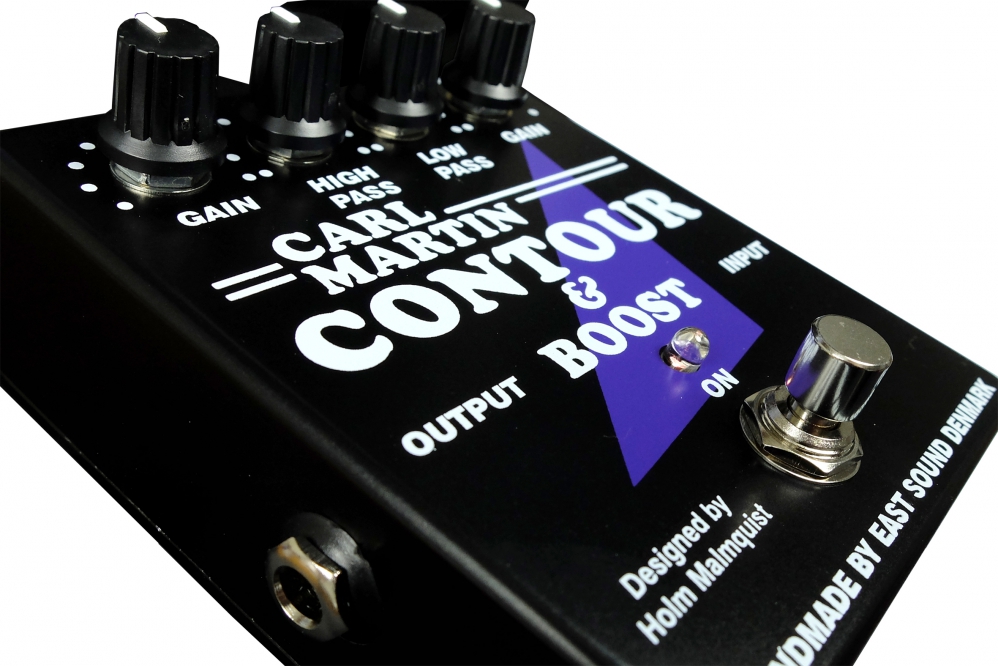

Carl Martin Contour′n Boost

Carl Martin Contour'n Boost is especially designed to boost up, and change the sound of electric guitar/bass.
The Contour'n Boost circuitry is of phase linear design, using high quality components. This ensures sonic clarity and midrange emphasis which is so important for electric guitar.
The Contour'n Boost features a High & Low Pass filter, with a fixed X-over frequency at 440Hz. The High Pass filter operates from 65Hz to 440Hz, and the Low Pass filter from 440 Hz to 8 kHz. Both filters are individually sweepable, with a boost range of up to 12dB. With these two filters it is possible to change the sound (contour) in any way your creativity allows you.

The Carl Martin Contour'n Boost has a built in, regulated (+-12V) power supply which enables us to design circuitry of the highest quality with maximum headroom.

Please note that the Contour'n Boost should always be placed after any distortion units, otherwise the distortion unit will limit what you can achieve with the Contour'n Boost.

- boost and filter effects pedal
- boosts the signal with sonic clarity and midrange emphasis
- true bypass
- controls for Gain, High Pass, Low Pass and Gain
- On footswitch
- status LED
- 6.3 mm mono IN/OUT jack
- metal housing
- DC/DC converter circuitry delivers 12 Volts internally
- power supply via optional 9V DC (Carl Martin Power Jack) adapter, 2.1 x 5.5 mm barrel plug, polarity (-) center
- battery operation not supported
- current draw 90 mA
- dimensions (L x W x H) 120 x 95 x 56 mm
- weight 625 g
- handmade in Denmark
