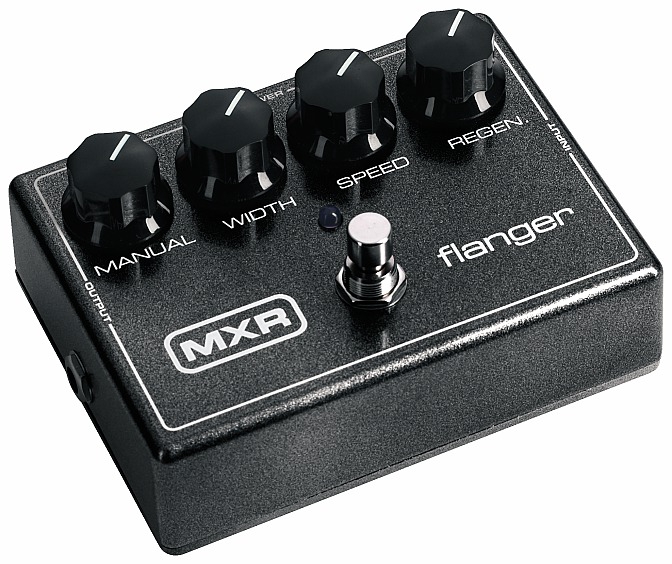

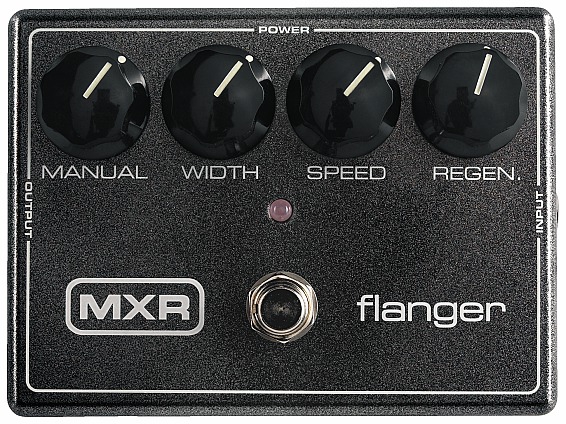

MXR M117R

Back by popular demand, the MXR flanger creates a variety of wild sounds from dynamic jet plane or cool space effects to short delay, chorus and vibrato. Back off Width to zero to disengage auto-sweep, then use the Manual knob to physically place the effect anywhere along the frequency spectrum; Use with guitar, bass, keyboards or vocals! Power: Two 9-volt batteries (some early models may not have this feature), or Dunlop ECB-004 18-volt AC Adapter - Controls: Footswitch toggles effect on/bypass (red LED indicates on) Manual knob selects frequency center of effect when auto-sweep is disengaged Width knob at zero disengages auto-sweep, rotates clockwise to increase total phase sweep of effect Speed knob modulates rate of effect Regen knob feeds effect back onto itself at adjustable intensity, increasing the total phase effect

- flanger effects pedal
- a staple of funky '70s sounds, from jet plane to space effects
- can be used as flanger, chorus, delay and more
- controls for Manual, Width, Speed and Regen
- bypass footswitch
- status LED
- metal housing
- 6.3 mm mono IN/OUT jacks
- power supply via 2 9V batteries or optional 18V DC (Dunlop ECB 004) adapter 2.1 mm x 5.5 mm barrel plug, polarity (-) center
- current draw 39 mA
