Radial Twinline Tonebone Twinline Effects

Product:	Radial Twinline Tonebone Twinline Effects
Brand:	Radial
Item number / Code:	175560 / RAD-TWINLINE
Current availability:	0 pcs.
Note! The price of this product may have changed. Please contact our team to receive more information on the availability and price of this item.
Key words:	Radial Twinline Tonebone Twinline Effects, Radial TWINLINE, TWINLINE
Ask a Product Expert:	Jakub Pindelski, tel. +48 717974679, email: [email protected]

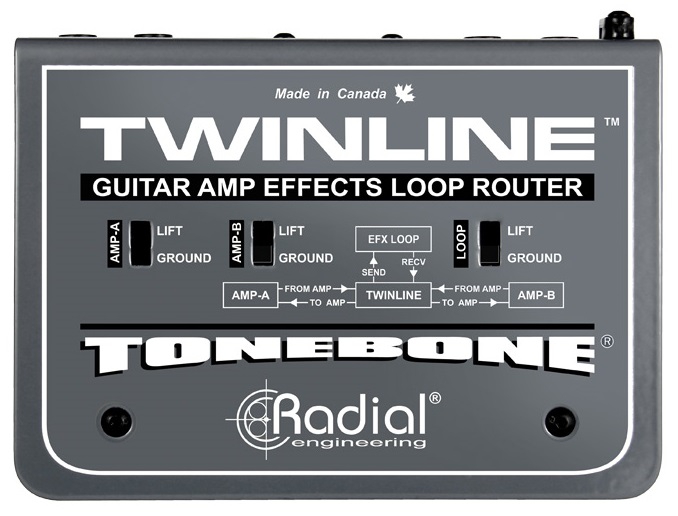

The Twinline? is a unique device that enables a guitarist to share effects pedals between two amps when using the amplifier's built-in (rear-panel) effects loops. The Twinline can be thought of as a pedalboard switcher that lets you remotely toggle the effects from one amp's effects loop to the other, thus allowing the guitarist to share his pedalboard between the two amps.

- effects loop switcher for two amps
- transformer isolated class-A FET circuit
- share effects between 2 amp's effects loops
- separate controls for Send Level and Return Level for each amp loop
- separate phase invert switch for amp loop A and B
- separate Ground lift switch for each loop
- EFX switch for bypassing the Twinline completely
- A/B select switch for selecting the active amp
- recessed UNB/BAL switch for balanced XLR Loop
- status LEDs
- metal housing
- 2 x 6.3 mm mono TO AMP/FROM AMP jacks
- 6.3 mm mono SEND/RETURN jacks (unbalanced loop)
- XLR SEND/RETURN jacks (balanced loop)
- 6.3 mm TRS remote footswitch input
- 6.3 mm TS Slingshot output
- power supply via optional 15V DC (R15C-EU) adapter
- 2.1 x 5.5 mm, polarity (+) center
- battery operation not supported
- dimensions (L x W x H) 109 mm x 147 mm x 48 mm
- weight 1,088 g
- made in Canada
