Eminence APT 80 V 2 1″ HF driver with horn

Product:	Eminence APT 80 V 2 1″ HF driver with horn
Brand:	Eminence
Item number / Code:	183086 / EMIN-EAPT80V2
Current availability:	0 pcs.
Note! The price of this product may have changed. Please contact our team to receive more information on the availability and price of this item.
Key words:	Eminence APT 80 V 2 1″ HF driver with horn, Eminence EAPT80V2, EAPT80V2
Ask a Product Expert:	Artur Grzejdak, tel. +48 717974679, email: [email protected]

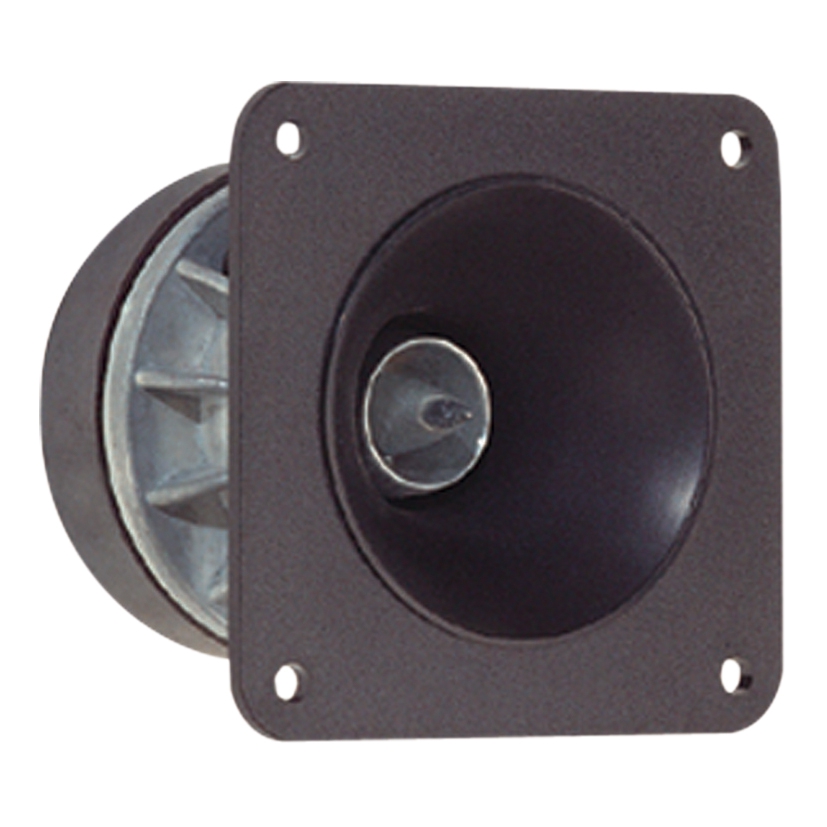

Eminence APT 80 V 2

New to the Eminence line of high-performance supertweeters is the APT:30. This horn loaded tweeter offers exceptional high frequency reproduction at an exceptional value. Rated at 10 watts AES, this ultra-compact unit features a 2 oz. ferrite magnet, aluminum voice coil former, and mylar diaphragm. With an average SPL rating of 93.4 dB and a max SPL of 116.5 dB, the APT30 is designed to deliver big performance in very limited spaces. From small bass rigs to home hi-fi applications, the APT30 can go where other devices simply can’t.

Specifications:

• Product type: High-frequency Drivers
• Nominal Diameter: 1 "
• Nominal Diameter: 25.4 mm
• Voice Coil: 1 "
• Voice Coil: 25.4 mm
• Overall diameter: 35 mm
• Depth: 94 mm
• Nominal Impedance: 8 Ohm(s)
• Nominal Load Capacity: 35 W
• Frequency response: 1500 Hz
• recommended crossover frequency: 3500 Hz
• Voice Coil: Carrier Kapton
• Diaphragm material: Phenolic
• Magnet: Ferrite
• Weight: 0,82 kg
