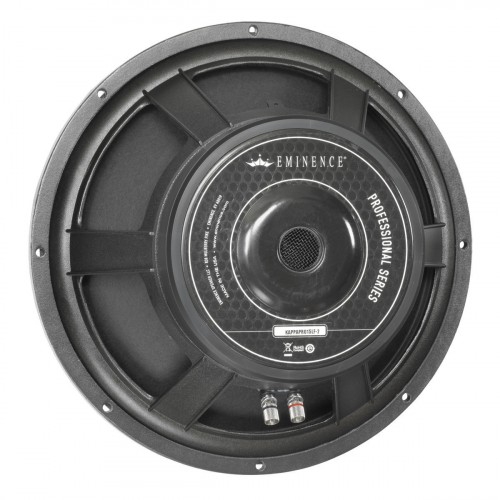

Eminence Kappa Pro 15LF C - Professional Low Frequency Woofer 4 Ohm

Eminence Kappa Pro 15 LF C

Long throw, low frequency woofer recommended for pro audio in a vented bass enclosure.

Specifications:

• Product type: Loudspeaker Chassis
• Type: PA
• Nominal Diameter: 15 "
• Nominal Diameter: 381 mm
• Voice Coil: 3 "
• Voice Coil: 76 mm
• Overall diameter: 381 mm
• Pitch Circle Diameter: 369.8 mm
• Cut- out Measurement: 355.6 mm
• Diameter of fixing holes: 7.1 mm
• Depth: 166.9 mm
• Nominal Impedance: 4 Ohm(s)
• Nominal Load Capacity: 600 W
• Sensitivity (1 W / 1 m): 96.8 dB
• Frequency response: 38 - 1800 Hz
• Voice Coil Material: copper
• Magnet: Ferrite
• Depth of the magnetic gap: 9.5 mm
• Fs (Resonance Frequency): 37 Hz
• Re (DC resistance): 3.34 Ohm(s)
• Qms (mechanical quality): 10
• Le (inductance of the voice coil): 0.94 mH
• Qes (electrical quality): 0.33
• Qts (overall quality): 0.32
• Vas (equivalent volume): 183.23
• Mms (moving mass): 99 g
• BL (power factor): 15.4 T/m
• Xmax (maximum displacement): 7.9 mm
• Cms (elasticity of the suspension): 0.18 mm/N
• Sd (membrane area): 856.3 cm²
• Weight: 10,673 kg
