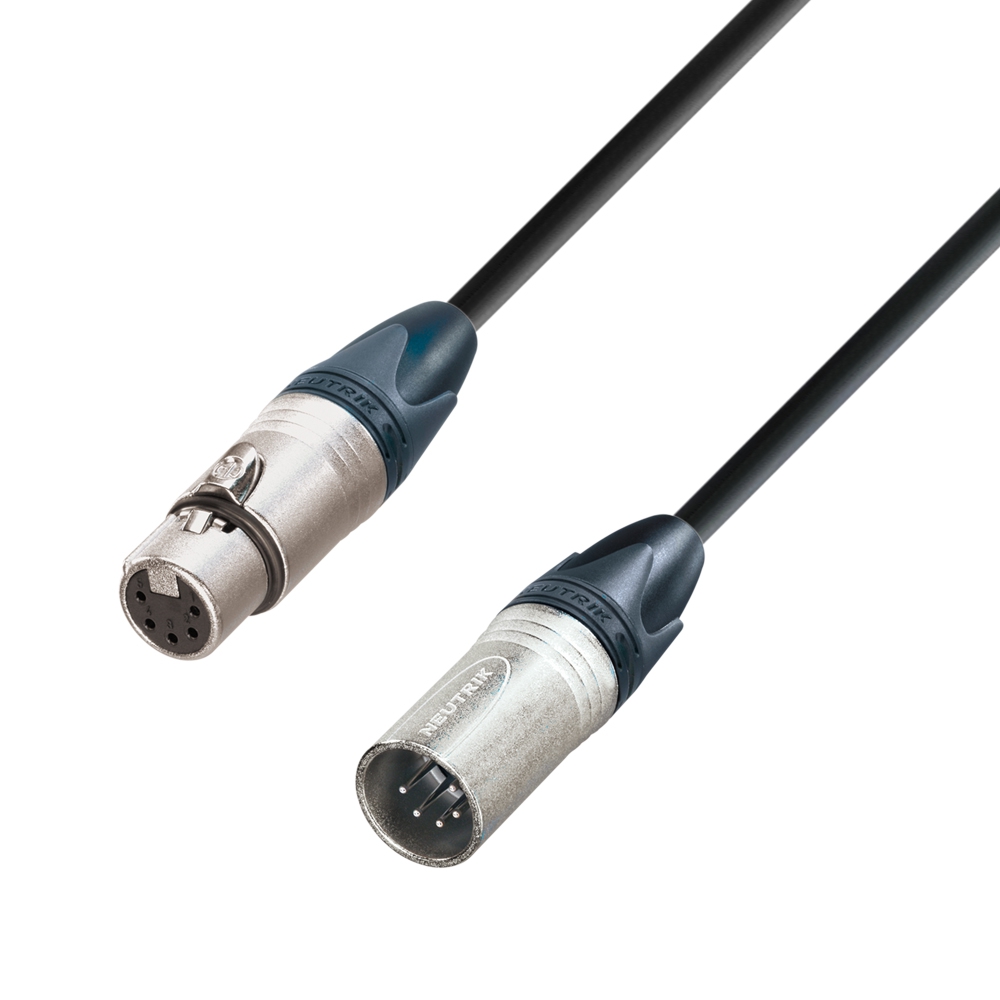

Adam Hall Cables K5 DGH 0300 DMX Cable Neutrik XLR male to XLR female 3 m

Product:	Adam Hall Cables K5 DGH 0300 DMX Cable Neutrik XLR male to XLR female 3 m
Brand:	Adam Hall
Item number / Code:	185283 / AHALL-K5DGH0300
Current availability:	0 pcs.
Note! The price of this product may have changed. Please contact our team to receive more information on the availability and price of this item.
Key words:	Adam Hall Cables K5 DGH 0300 DMX Cable Neutrik XLR male to XLR female 3 m, Adam Hall K5DGH0300, K5DGH0300
Ask a Product Expert:	Marcin Szampowalski, tel. +48 717974679, email: [email protected]

Adam Hall Cables K5 DGH 0300

Analogously to the three-pin variant, this data cable is equipped with five-pin plugs by Neutrik and is thus perfect for transmission of DMX signals for lighting control.

Specifications:

• Product type: Pre-assembled Cables
• Type: DMX & AES/EBU Cable
• Length: 3 m
• Color: Black
• Cable diameter: 6.4 mm
• Center conductor cross section: 0.22 mm²
• Surge Impedance: 53 ohm/km
• Capacitance: <63 pF/m
• Connector 1: XLR
• Gender of connector 1: male
• Poles of connector 1: 5
• Contacts of connector 1: silver plated
• Manufacturer of connector 1: Neutrik
• Model number connector 1: NC5MXX
• Connector 2: XLR
• Gender of connector 2: female
• Poles of connector 2: 5
• Contacts of connector 2: silver plated
• Manufacturer of connector 2: Neutrik
• Model number connector 2: NC5FXX
• Weight: 0,203 kg
