Elation E-Node 2 POE - Artnet / DMX

Product:	Elation E-Node 2 POE - Artnet / DMX
Brand:	Elation
Item number / Code:	190967 / ELAT-E-NODE-2-POE
Current availability:	0 pcs.
Note! The price of this product may have changed. Please contact our team to receive more information on the availability and price of this item.
Key words:	Elation E-Node 2 POE - Artnet / DMX , Elation E-NODE-2-POE, Elation E NODE 2 POE, Elation ENODE2POE, E-NODE-2-POE, E NODE 2 POE, ENODE2POE
Ask a Product Expert:	Marcin Szampowalski, tel. +48 717974679, email: [email protected]

Elation E-Node 2 POE

The eNode 2 POE is a compact 2-universe Ethernet-DMX node powered over Ethernet (POE), no external power supply or cord is needed. Supports Art-Net, sACN and RDM compatible DMX control systems utilizing a single RJ45 auto-switching 10/100Mbps Neutrik etherCON input and two multi-configuration 5pin Neutrik DMX data outputs. Features include DMX bilateral conversion support, a 4-button control panel, an OLED system menu display, 3 LED status indicators, compact and lightweight die-cast aluminum housing, and a mini omega bracket for easy clamp/truss mounting.

Specifications:

• Compact 2-Universe Ethernet-DMX Node
• POE (Power over Ethernet)
• AutoSwitching 10/100Mbps Neutrik etherCON Input
• (2) Multi-Configuration 5pin Neutrik DMX Data Outputs
• Art-Net and sACN Support
• RDM Compatible
• DMX Bilateral Conversion Support
• Variable MAC Address Assignable
• Compact and Lightweight Die-Cast Aluminum Housing

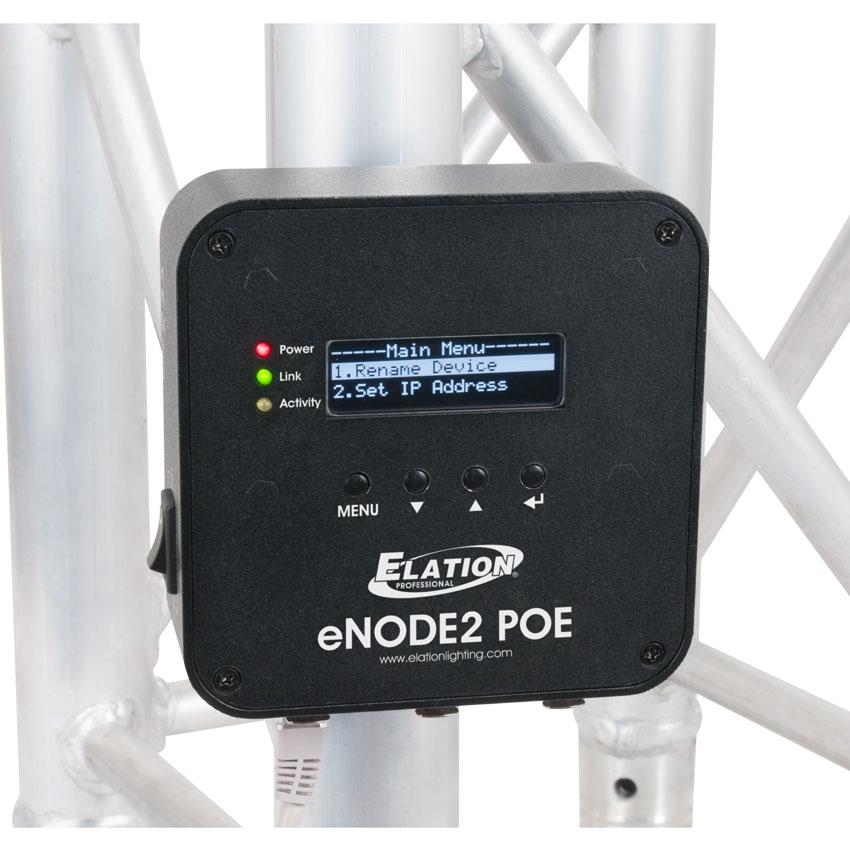

• Easy Clamp/Truss Mounting
• (2) Universe Art-Net and sACN Support with DMX Bilateral Conversion

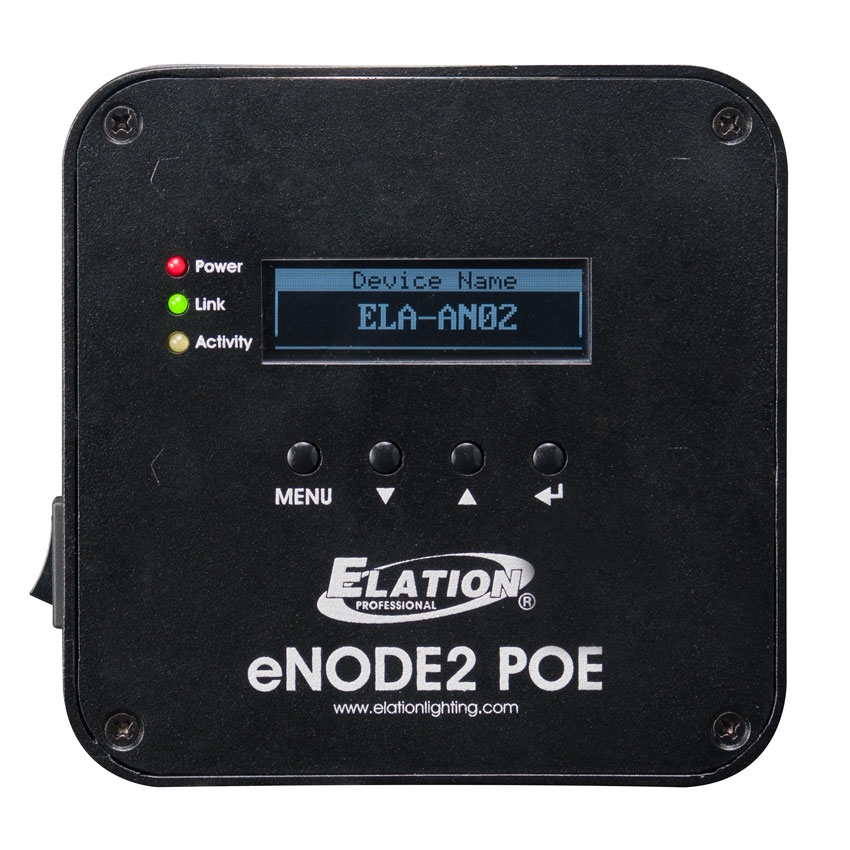

• 4-Button Control Panel
• OLED System Menu Display
• (3) LED Status Indicators

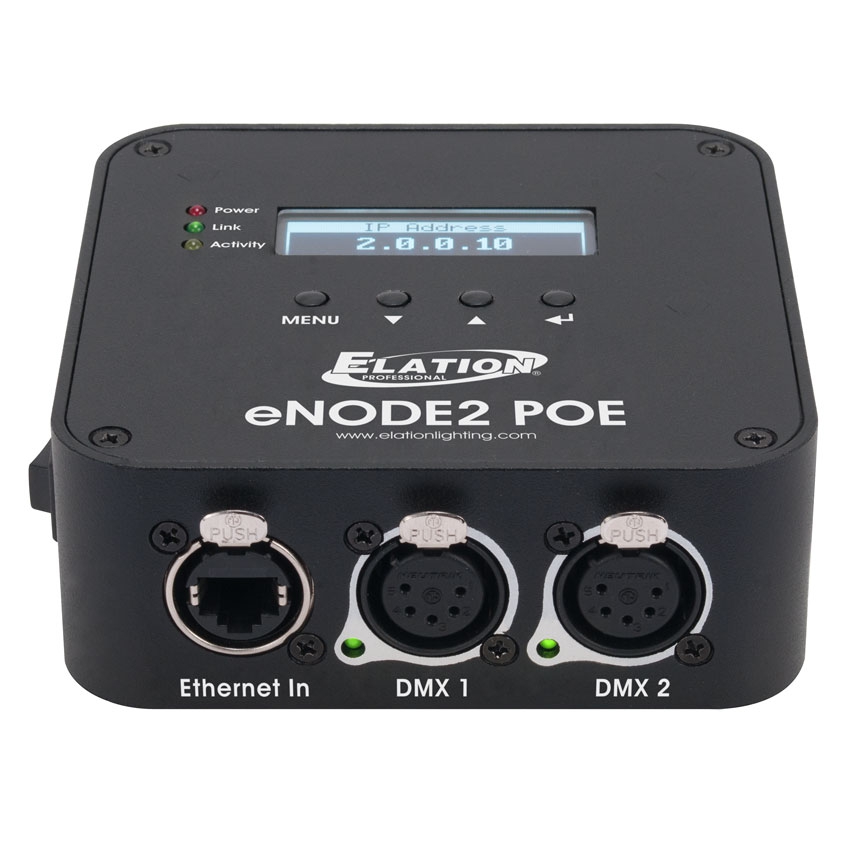

• (1) Auto-Switching 10/100Mbps Neutrik RJ45 EtherCON Input
• (2) Multi-Configuration 5pin Neutrik DMX Data Outputs
• Length: 4.76" (121mm)
• Width: 4.68" (119mm)
• Vertical Height: 1.69" (43mm)
• Weight: 0.88 lbs. (0.4kg)
• POE (Power over Ethernet)
• 2.6W Max Power Consumption
