Product: | Korg PB-05 Pitchblack Pro rack tuner |
---|---|
Brand: | Korg |
Item number / Code: | 191029 / KORG-PB-05 |
Current availability: | 0 pcs. |
Note! The price of this product may have changed. Please contact our team to receive more information on the availability and price of this item. | |
Key words: | Korg PB-05 Pitchblack Pro rack tuner, Korg PB-05, Korg PB 05, Korg PB05, PB-05, PB 05, PB05 |
Ask a Product Expert: | Andrzej Pindelski, tel. +48 717974679, email: [email protected] |

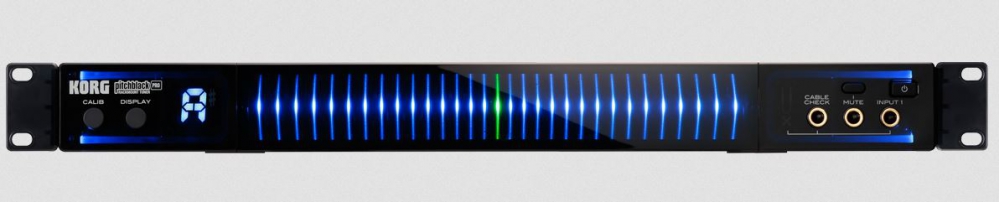

Korg PB-05 Pitchblack Pro
Since producing the world's first rackmounted tuner, the DT-1pro which appeared in 1987, Korg has continued to produce classic models that define the era, including the DTR-1/DTR-2 in 1994 and the DTR-1000/DTR-2000 in 2002. Now in 2013, Korg unveils its latest rackmount model. The pitchblack Pro features a new 3D visual meter that's so beautiful you'll think of it as an aspect of your stage performance. The three-dimensional expression of light delivers an unprecedentedly visual element. Although it's in a rackmount form factor, the body is ultra-lightweight and slim, allowing it to be used anywhere. This is a new generation of rackmount tuner that every guitarist/bassist with professional aspirations should experience.
Features:
• 19-inch 1U rack-mount tuner for guitar/bass
• Large“3D”visual meter for unprecedented visibility
• Lightweight, thin, removable; not limited to rack installation
• Three meter display modes: regular, strobe, and half-strobe
• Cable Checker warns of broken or shorted cables
• Buffered output minimizes any change in audio quality
• Mute function lets you tune silently
• Part of KORG’s “Custom Shop” series, a mark of ultimate quality
Specifications:
• Tuning: 12 Note Equal Temperament
• Detection Range: E0 (20.60 Hz) ~ C8 (4186 Hz), Sine Wave
• Calibration Range: A4 = 436-445 Hz (1 Hz steps)
• Detection Accuracy: +/- 1 cent
• Display Mode: Regular / Strobe / Half Strobe
• Input impedance: 1 M Ω (when tuner is on)
• Connectors:
- Front Side:
Input 1 (mono 1/4″ jack) for Guitar /Bass
Mute (mono 1/4″ jack)
Cable Check (mono 1/4″ jack)
- Rear Side:
Input 2* (mono 1/4″ jack)
*This jack is intended for use with the line output from an effect unit or keyboard; this cannot be used simultaneously with the INPUT 1 jack Output (mono 1/4″ jack) DC IN (9V)
• Power supply: DC 9V, AC adapter(KA350)
• Dimensions: (W x D x H)
• Tuner Only: 430 x 49 x 44 mm (including protrusions)
• When used with the rackmount adapters: 482 x 49 x 44 mm(including protrusions)
• Weight: 363 g / 12.80 Oz. (Tuner Only)
