Neutrik NA2-IO-DPRO Line or AES I/O to Dante Interface

Product:	Neutrik NA2-IO-DPRO Line or AES I/O to Dante Interface
Brand:	Neutrik
Item number / Code:	218435 / NA2-IO-DPRO
Current availability:	0 pcs.
Note! The price of this product may have changed. Please contact our team to receive more information on the availability and price of this item.
Key words:	Neutrik NA2-IO-DPRO Line or AES I/O to Dante Interface, Neutrik IO-DPRO, Neutrik IO DPRO, Neutrik IODPRO, IO-DPRO, IO DPRO, IODPRO
Ask a Product Expert:	Marcin Szampowalski, tel. +48 717974679, email: [email protected]

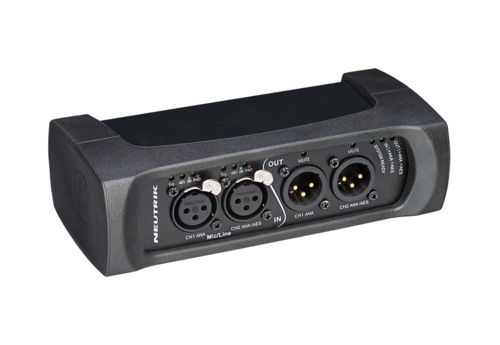

Neutrik NA2-IO-DPRO

The NA2-IO-DPRO is a 2IN, 2OUT breakout box designed to connect legacy audio equipment with the Dante network. It features high-quality microphone preamps and 2 Dante ports for either redundant setup or daisy chaining. Audio parameters are adjusted either by Neutrik's DPRO controller or a number of common control software.

All connectors are lockable and, together with the removable rubber protection, offer a reliable solution for tough stage conditions. With optional mounting brackets or a rack panel, the box can be mounted below tables, in floor boxes, racks or on a truss.

Specifications:

• For connecting analogue or digital audio equipment to a Dante network
• Requires Power over Ethernet (PoE)
• Transforms 2 analogue or digital line signals into Dante
• Converts AES67 into two analogue line or digital AES outputs
• Input impedance analogue: 7.5 kOhm
• Max. Input level (symmetrical): +24 dBu
• Output impedance (analogue): < 150 Ohm
• Max. Output level (symmetrical): +24 dBu
• Tour-worthy rubber protection around the case (can be removed for rack mounting or installation)
• Dimensions (L x W x H): 164 x 82 x 51 mm
• Weight: 0.53 kg
