PureLink PT-SW-HD3 3x1 4K 18Gbps HDMI Switcher

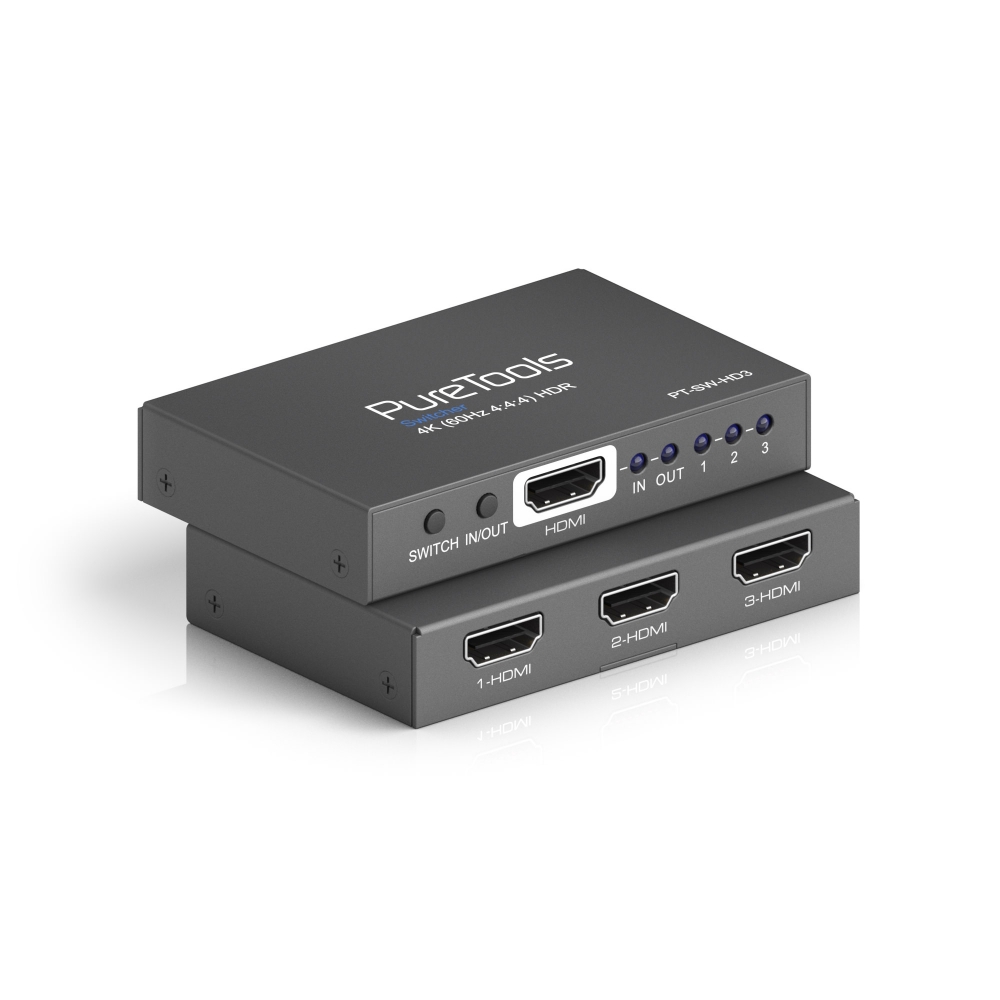

PureLink PT-SW-HD3

The PT-SW-HD3 is simply the most useful product you can ever have in your tool kit. It is simultaneously a 3x1 switcher and a smart EDID manager, all in one ultra slim chassis. It boasts a full 4K 60Hz 4:4.4 chipset with HDR support and can run without power supply directly from your HDMI cables 5v line. This product is a must have for any installer - a single SKU with multiple functions.

3 PORT HDMI 2.0a SWITCHER
In switching mode, three HDMI 2.0a inputs and a single HDMI 2.0a output makes this product ideal for any home cinema. Simply controlled by its front panel button.

FULL 18GBPS AND HDR
Compatible with the new Ultra High Definition sources and displays, displaying signals at resolutions up to 4K @60 4:4:4 (18Gbps) and shows crystal clear HDR media to its best ability.

SMART EDID MANAGEMENT
The PT-SW-HD3 is designed for flawless operation. Features such as Hot Plugging and EDID management will guarantee uninterrupted video reproduction.

ULTRA SLIM DESIGN
All of this technology is packed into an ultra slim enclosure, for installation into furniture or snugly behind the TV. No power supply required.

Specifications:

• Input connector(s): 3 x HDMI
• Output connector(s): 1x HDMI
vMaximum data rate: Up to 4K@60Hz 4:4:4
• Standards: HDMI 2.0a and HDCP2.2 Pass Through
• HDCP: Yes
• EDID: Yes
• Operating temperature: -10°C ~ 40°C
• Storage temperature: -15°C ~ 55°C
• Humidity: 10% ~ 90%
• Dimensions: 80mm x 16mm x 55mm
• Supported standards: HDMI 2.0a and HDCP2.2 Pass Through
• Safety: CE, FCC
• Color: black
