Product: | Eurolite ERX-4 DMX 4-channel switch pack |
---|---|
Brand: | Eurolite |
Item number / Code: | 220283 / E.LITE-ERX-4-U |
Current availability: | 0 pcs. |
Note! The price of this product may have changed. Please contact our team to receive more information on the availability and price of this item. | |
Key words: | Eurolite ERX-4 DMX 4-channel switch pack, Eurolite ERX-4-U, Eurolite ERX 4 U, Eurolite ERX4U, ERX-4-U, ERX 4 U, ERX4U |
Ask a Product Expert: | Filip Koperski, tel. +48 717974679, email: [email protected] |
B-Stock | Dear Customer, On this site you will find mailnly Ex-Demo products, which means the item for sale has been used as demonstration stock and is covered by a 12 months warranty. Some products may have a used box, some may've been gently used for evaluation or demonstration purposes. We regularly put new items in this section with prices dropping by 30%, so keep checking back often to find yourself a bargain. |

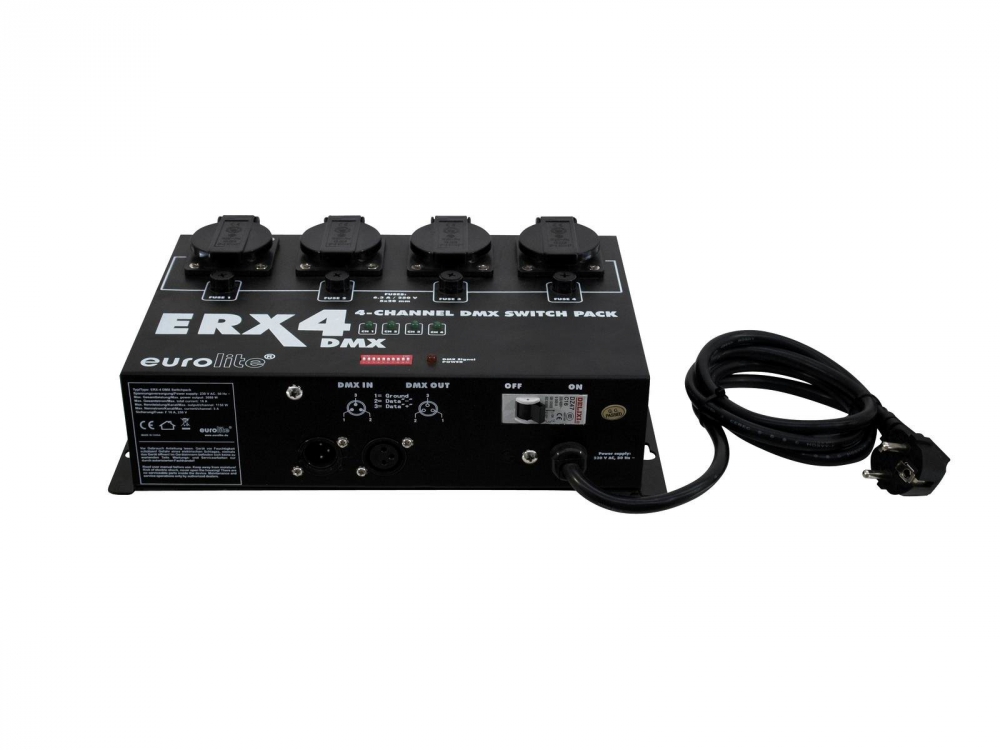

Eurolite ERX-4 DMX
4-channel switch pack, up to 5 A load per channel, control with relay.
Specifications:
• Relay allows for controlling luminaires with electronic transformers (e.g. LED effects)
• 4 controllable channels
• LED indicator per channel
• 5 A load per channel
• Maximum current 16 A
• Outputs via 4 safety sockets
• DMX512 input and output
• DMX starting address adjustable via DIP switches
• For truss installation and wall installation
• Power supply: 230 V AC, 50 Hz
• Output power: Max. 3680 W
• Max. 1150 W each chanal
• Power connection: Fixed Power supply cord with safety plug
• Power output: 4 x Safety contact (F), hinged lid mounting version
• DMX channels: 4
• DMX input: 1 x 3-pin XLR (M) mounting version
• DMX output: 1 x 3-pin XLR (F) mounting version
• Control: Stand-alone , DMX
• Control channels: 4
• Color: Black
• Width: 30 cm
• Height: 8.5 cm
• Depth: 19 cm
• Weight: 2.51 kg
