LD Systems MAUI 5 GO W Ultra-portable battery-powered column PA system - 5200 mAh, white

Product:

LD Systems MAUI 5 GO W Ultra-portable battery-powered column PA system - 5200 mAh, white

Brand:

LD Systems

Item number / Code:

223492 / LDS-MAUI5GOW

Current availability:1 updated on: 2024-03-29 14:10:23
Our store
Shipping warehouse
Product in logistics partner's warehouse
Item available in:14 days
Ask a Product Expert:
Marcin Zdziabek, tel. +48 717974679,
email: [email protected]

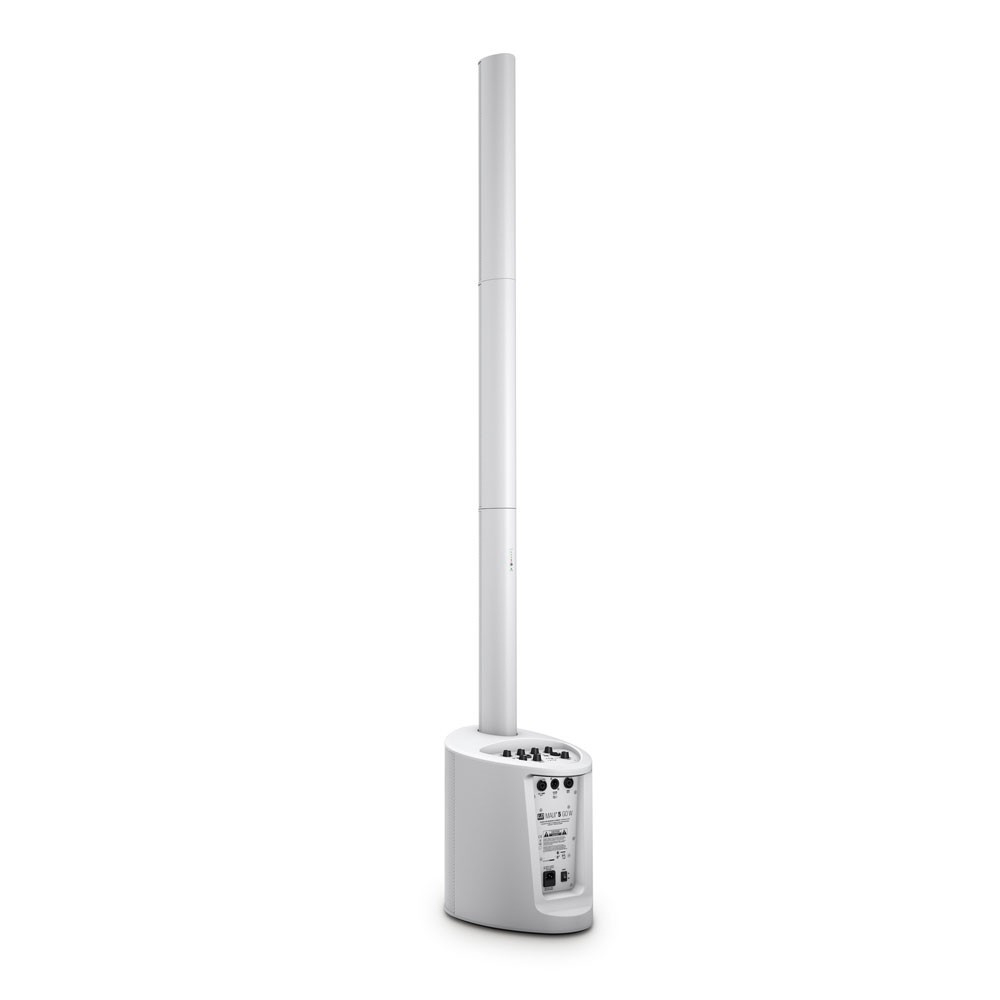

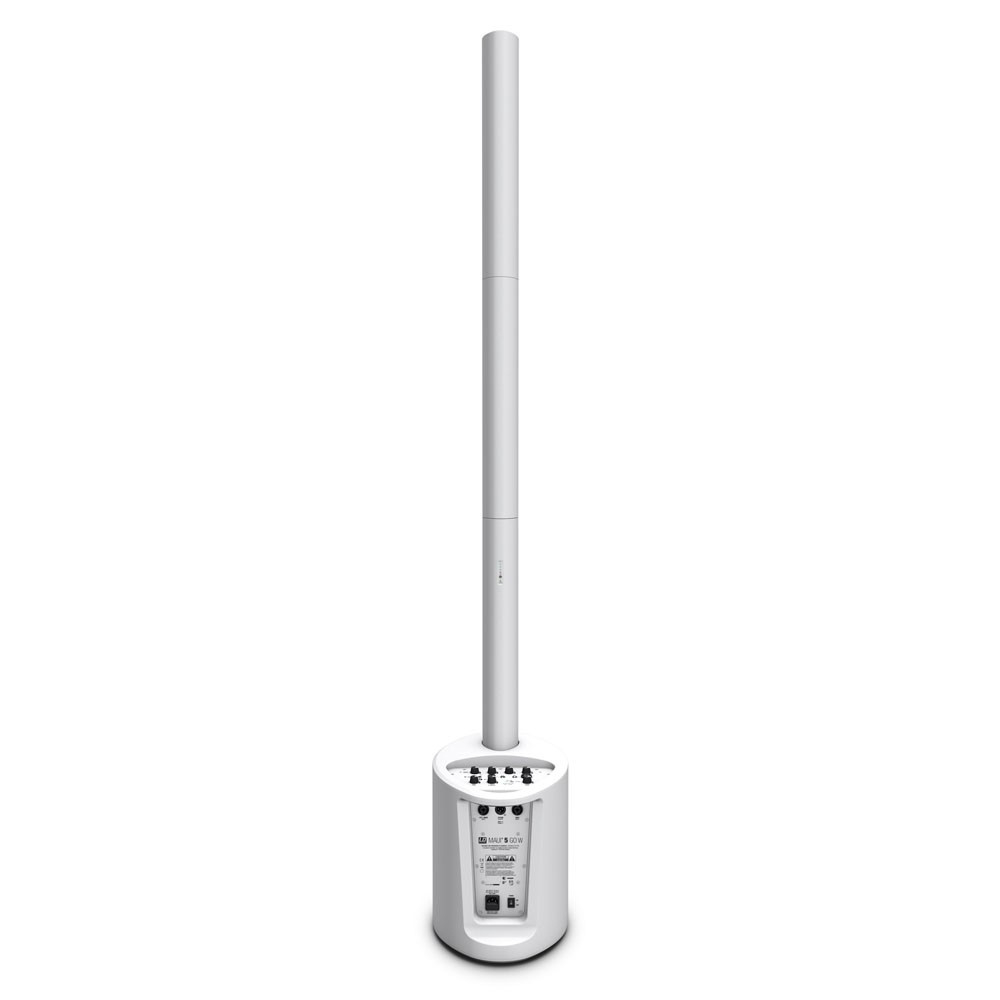

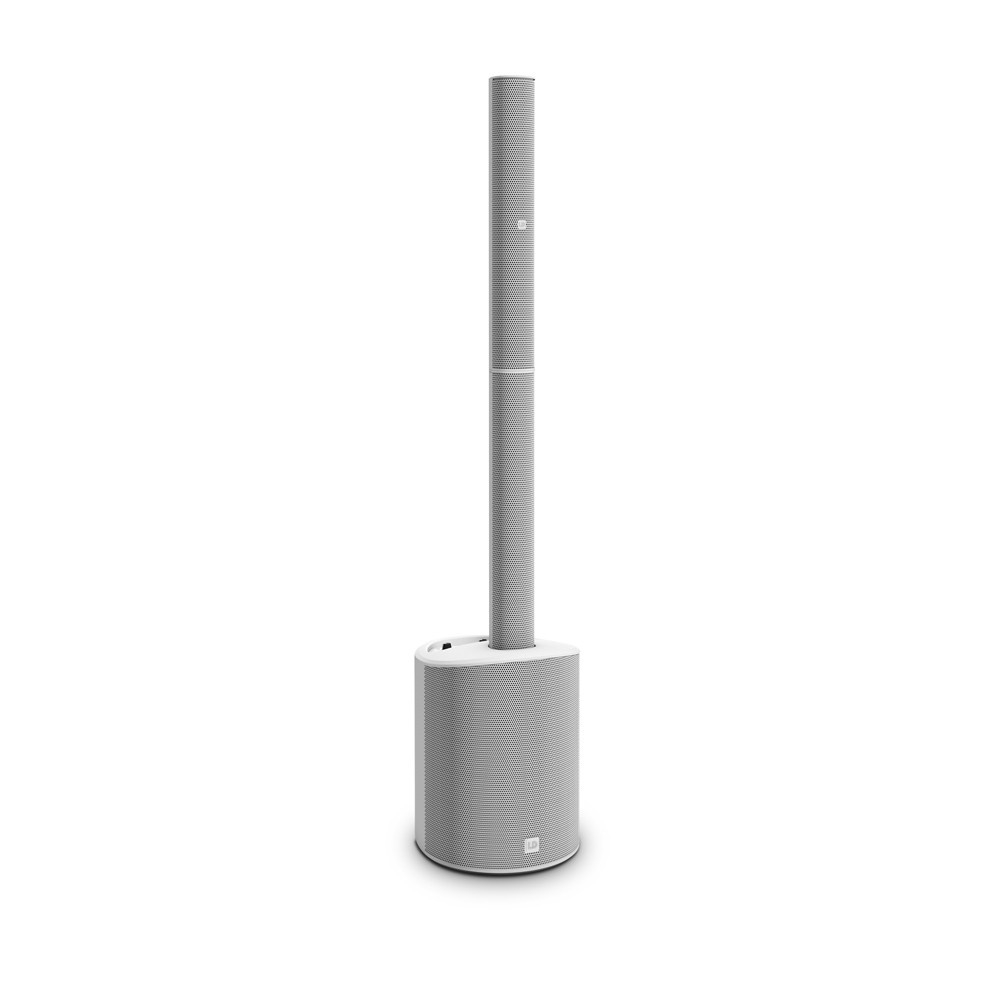

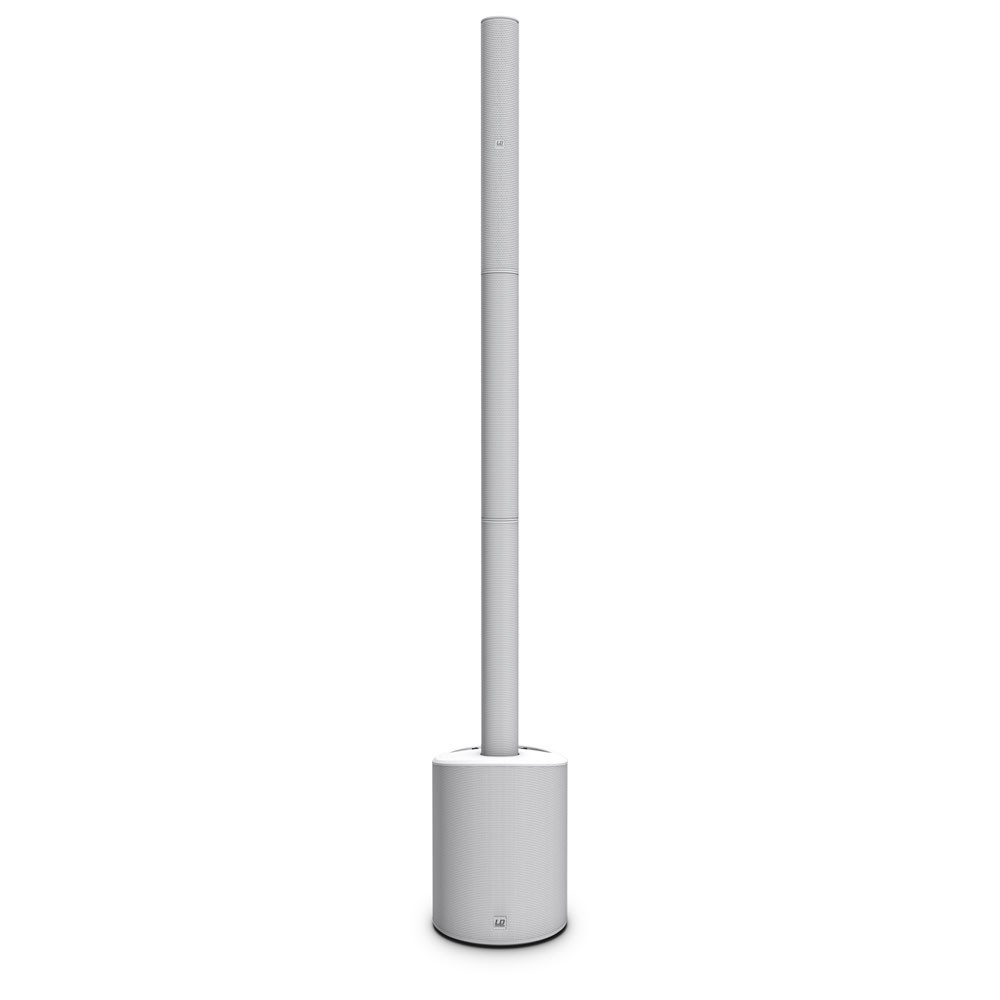

LD Systems MAUI 5 GO W Ultra-portable battery-powered column PA system - 5200 mAh, white

LD Systems MAUI 5 GO

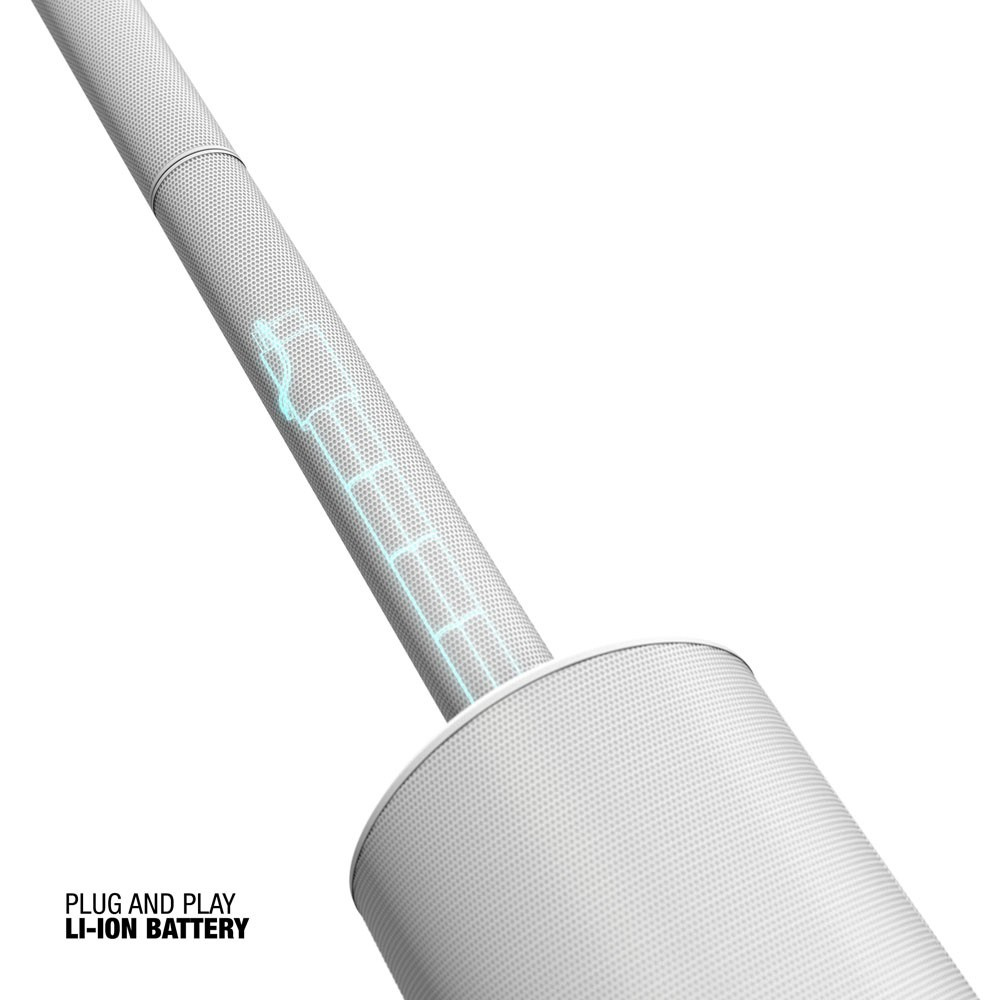

Perfectly equipped throughout, the MAUI 5 GO is the ultimate system to deliver crystal-clear, powerful sound in any location. The ultra-portable battery-powered column-PA is supplied by a high-performance lithium-ion unit that provides power for up to 20 hours operating time. The charger is built into the subwoofer. An external charging dock is available as an accessory. Inputs for microphone, instrument and line signals as well as Bluetooth® stereo streaming make the MAUI 5 GO the ideal system for street musicians or for music and speech reproduction at private and business events and all mains power-free applications.

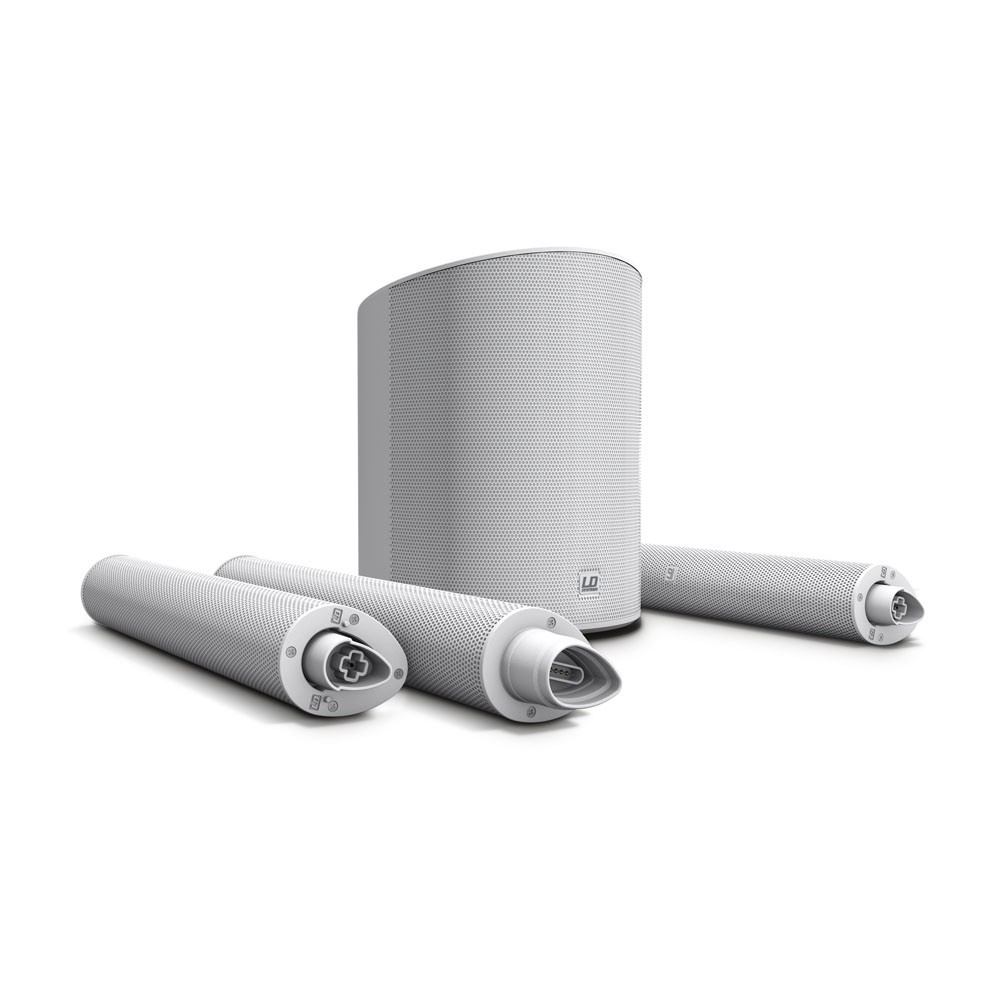

Its superlight weight of just 13 kg makes the four-piece design ultra-easy to transport, and thanks to its special multipin connectors, it is assembled and ready to use in seconds. The line-array arrangement of the drivers achieves an extremely high range. The system’s wide dispersion and excellent feedback-resistance removes the need for separate monitors. With 800 watts peak power, the MAUI 5 GO is the loudest and best-sounding battery-powered PA system on the market, effortlessly providing sound for audiences of over 100 people.

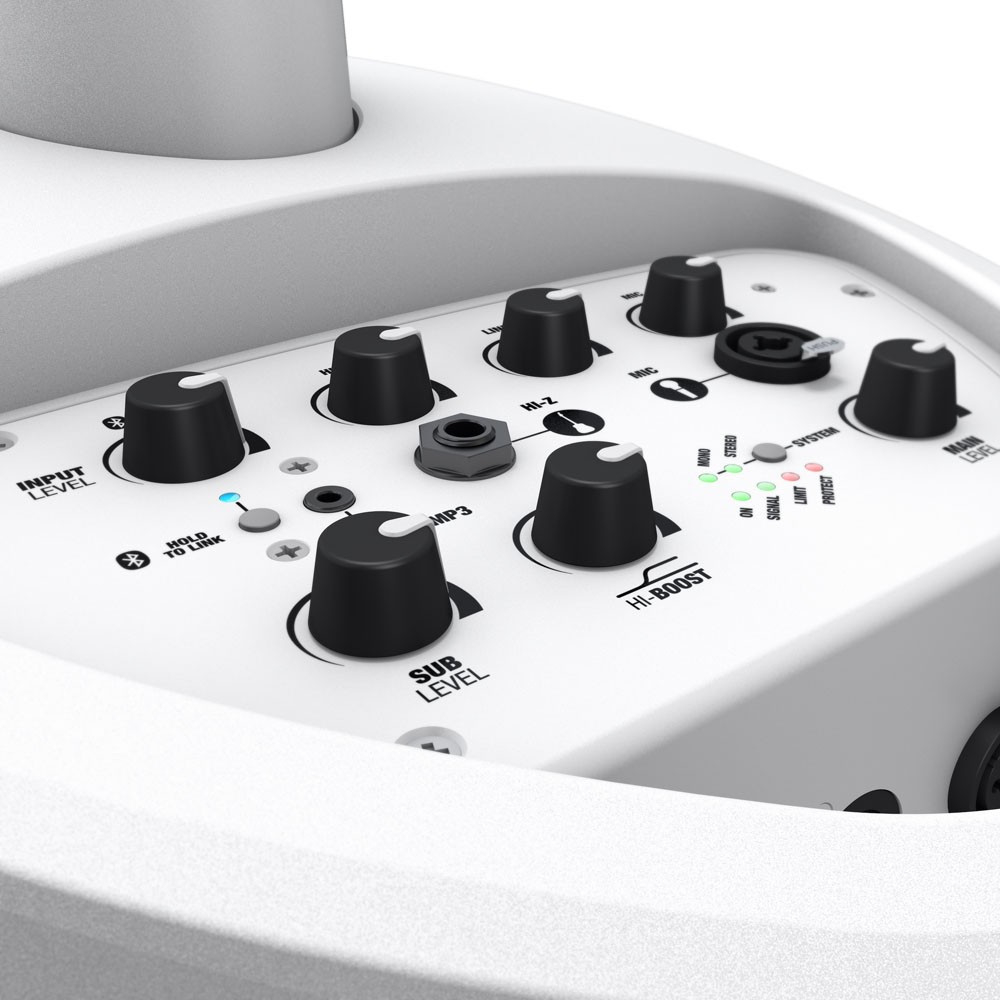

For unparalleled sound quality in all applications, the column system features LD Systems' LECC DSP with multi-band limiter, equalizer, compressor and crossover. The integrated 4-channel mixer provides separate volume controls for the input channels, sum and subwoofer as well as a variable high-frequency boost to facilitate fast and balanced adjustment to the sound. LD Systems’ Quick-Swap Technology also facilitates immediate and simple battery replacement for practically unrestricted operating times for the MAUI 5 GO.

Specifications:

General

• Product type: PA Complete Systems
• Type: active
• Number of subwoofers: 1

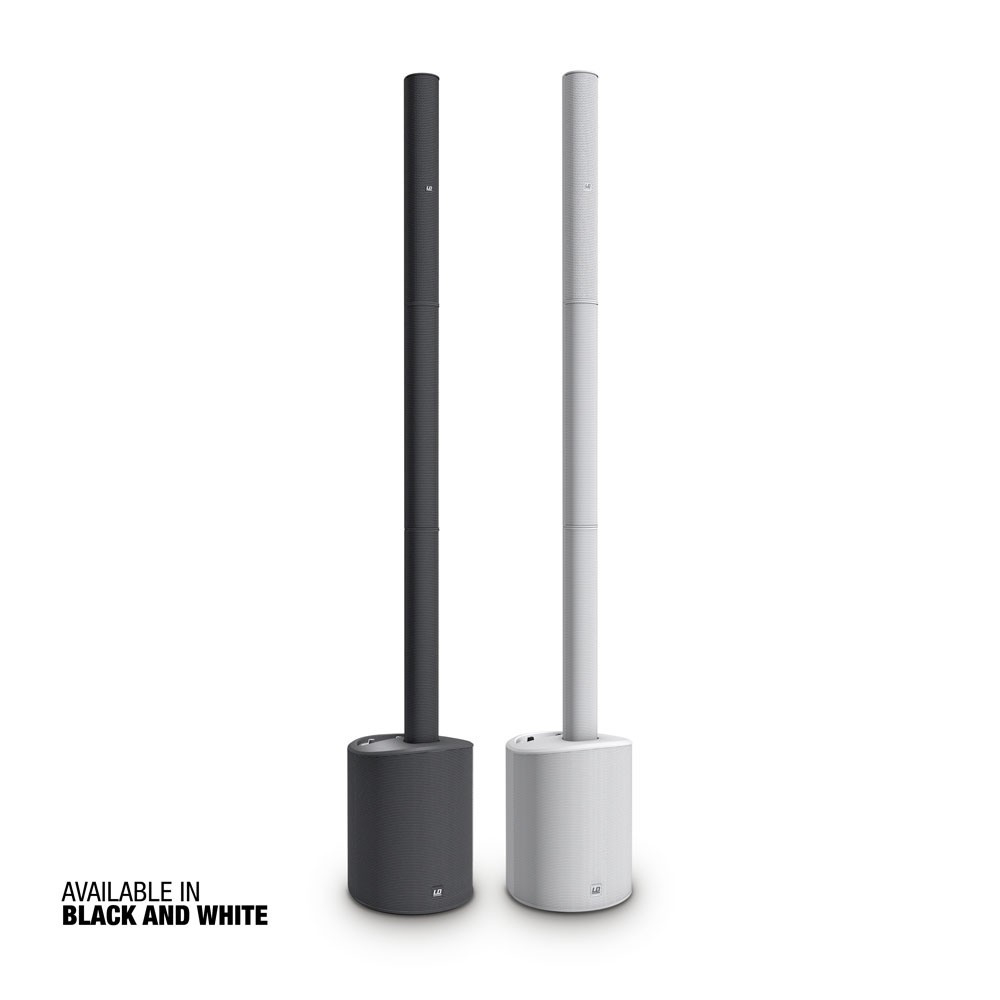

• Color : White
• Max. SPL (peak): 120 dB
• Frequency response: 50 - 20,000 Hz
• Dispersion (H x V): 120° x 20 °
• Overall height : 1985 mm
• Weight : 12,9 kg

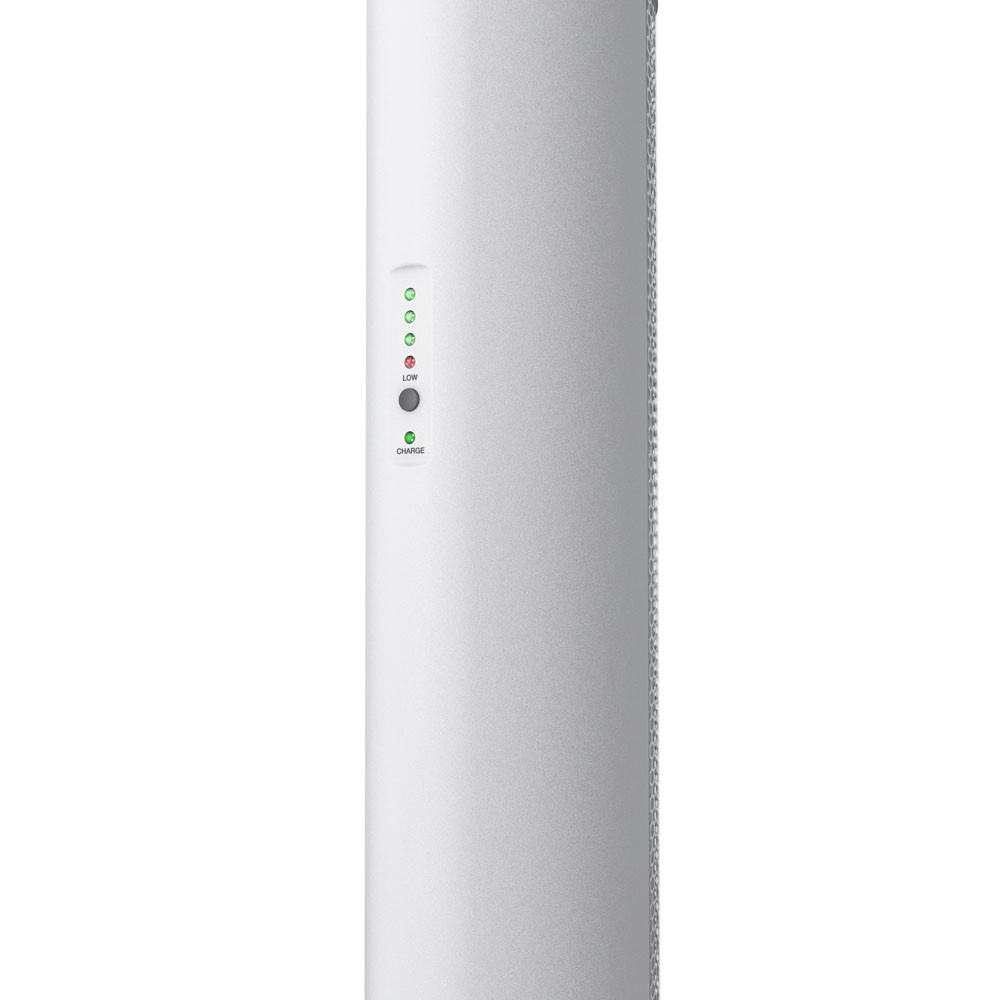

Battery

• Rechargeable batteries: 28.8 V / 5200 mAh
• Battery manufacturer: LG Chem
• Battery technology: Lithium-ion
• Battery operation time at maximum load: 10 h @ 104 dB (Live music), 20 hours @ 98 dB (Lounge), 6 hours at 120 dB (DJ mode)
• Charging time: 2 hours up to 80%, 3 hours up to 100%

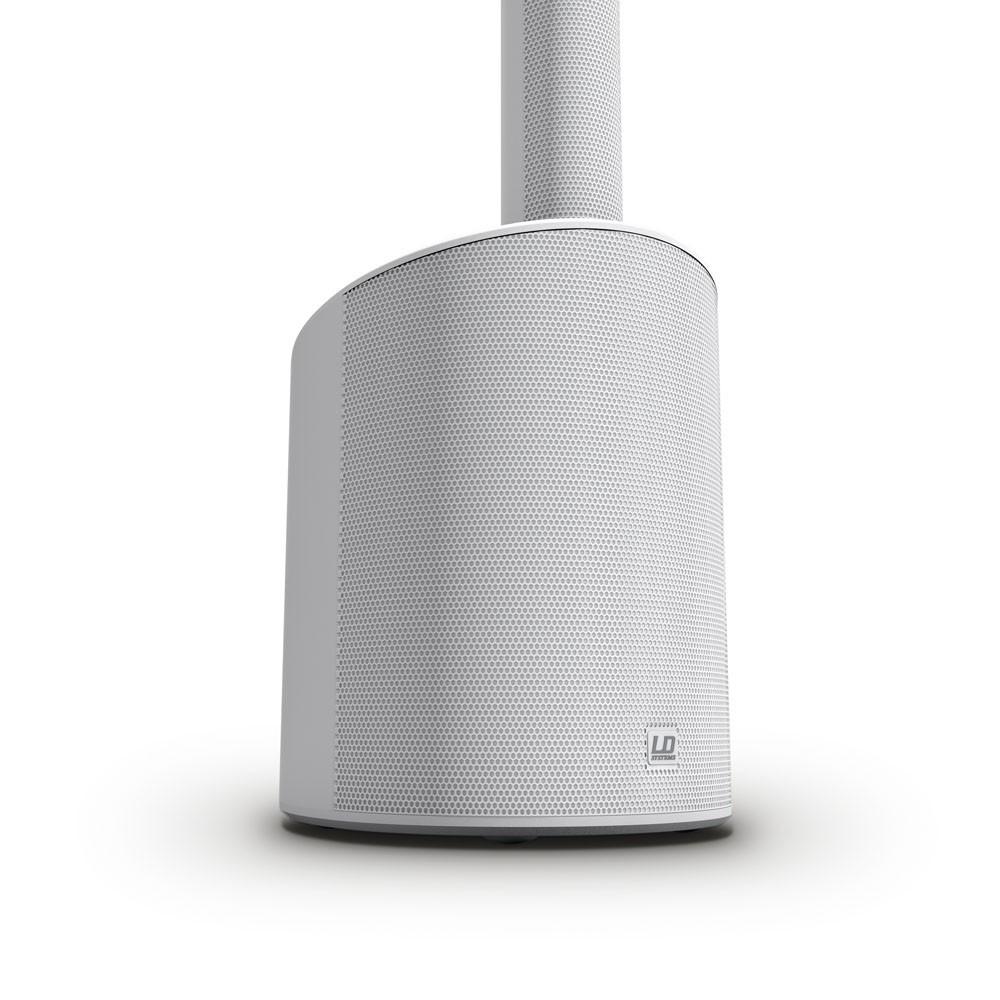

Woofer characteristics

• Low/mid driver dimensions: 8 "
• Woofer size: 203.2 mm
• Woofer magnet : Ferrite
• Woofer brand : Custom-made
• Woofer voice coil: 2 "
• Woofer voice coil (mm): 50.8 mm
• Cabinet construction: Bass Reflex
• Cabinet material: ABS plastic
• Subwoofer width : 305 mm
• Subwoofer height: 405 mm
• Subwoofer depth: 395 mm
• Subwoofer weight: 8.9 kg

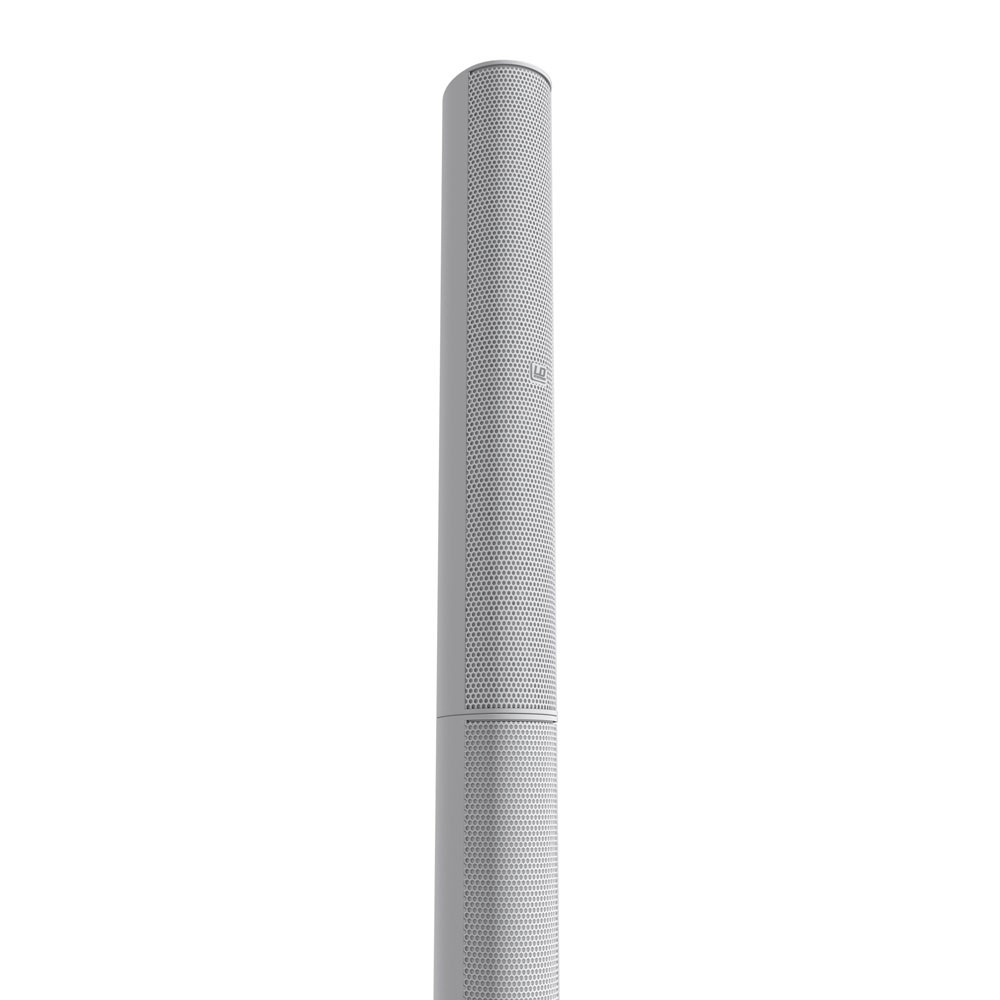

Mid/Hi System

• Midrange size: 4 x 3 "
• Midrange size: 4 x 76.2 mm
• Midrange magnet: Neodymium
• Midrange brand: Custom-made
• Midrange voice coil: 1 "
• Midrange voice coil: 25.4 mm
• Mid/Hi system impedance: 4 Ohm(s)
• Loudspeaker inputs: 1
• Speaker input connections : Custom-made multipin
• Cabinet construction mid/high: Closed
• Mid/Hi system cabinet material: ABS plastic
• Mid/Hi system width : 82 mm
• Mid/Hi system height: 535 mm
• Mid/Hi system depth: 105 mm
• Mid/Hi system weight: 3.5 (3ps) kg

Amplifier module (integrated in subwoofer)

• Amplifier: Class D
• Amplifier output system (RMS): 200 W
• Amplifier output system (peak): 800 W
• Protection circuits: DSP-based multiband limiter, over-current, short circuit, thermal overload
• Cooling: Convection
• Ambient temperature (operating): 0 - 40 °C

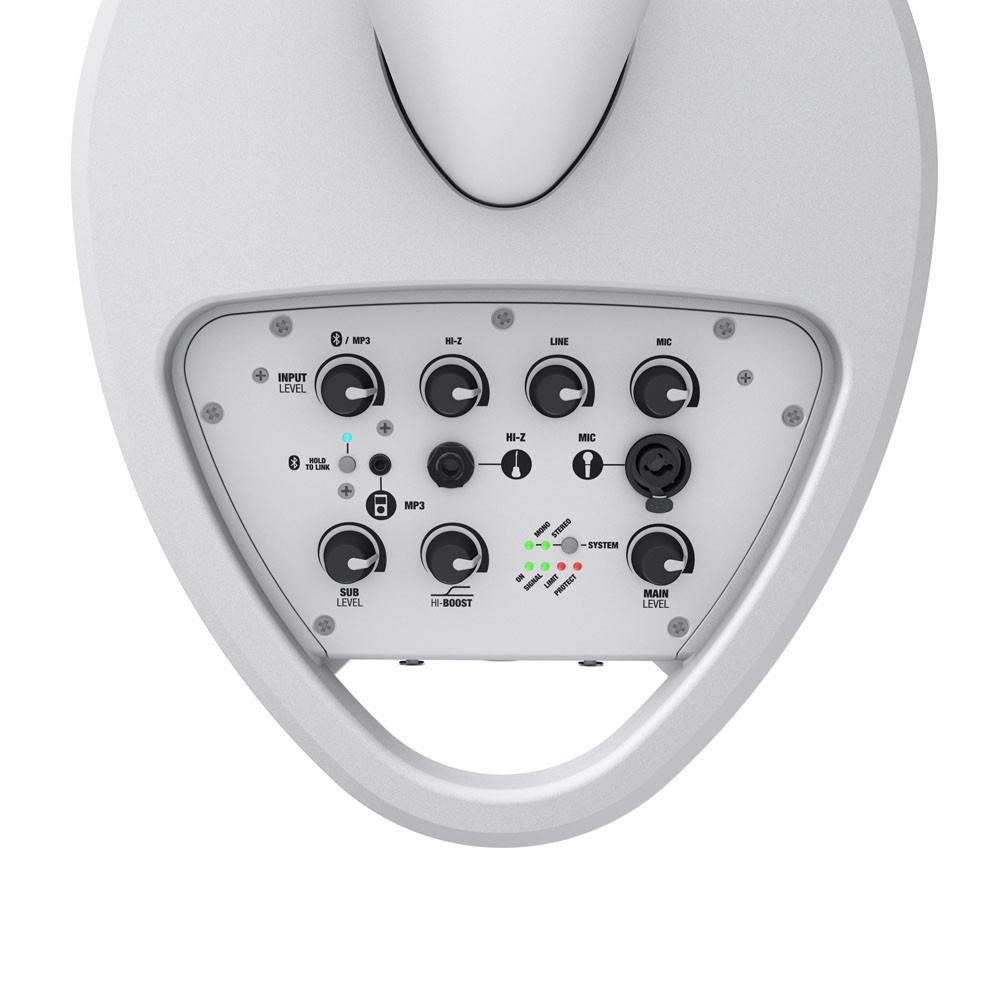

• Controls: BT level, BT pairing, Line level, Main level, Mic level, Mono/stereo mode, MP3 / Hi-Z level, On / Off, Sub level
• Indicators: Limit, On, Protect (protection circuit engaged), Signal
• Operating voltage: Switching power supply

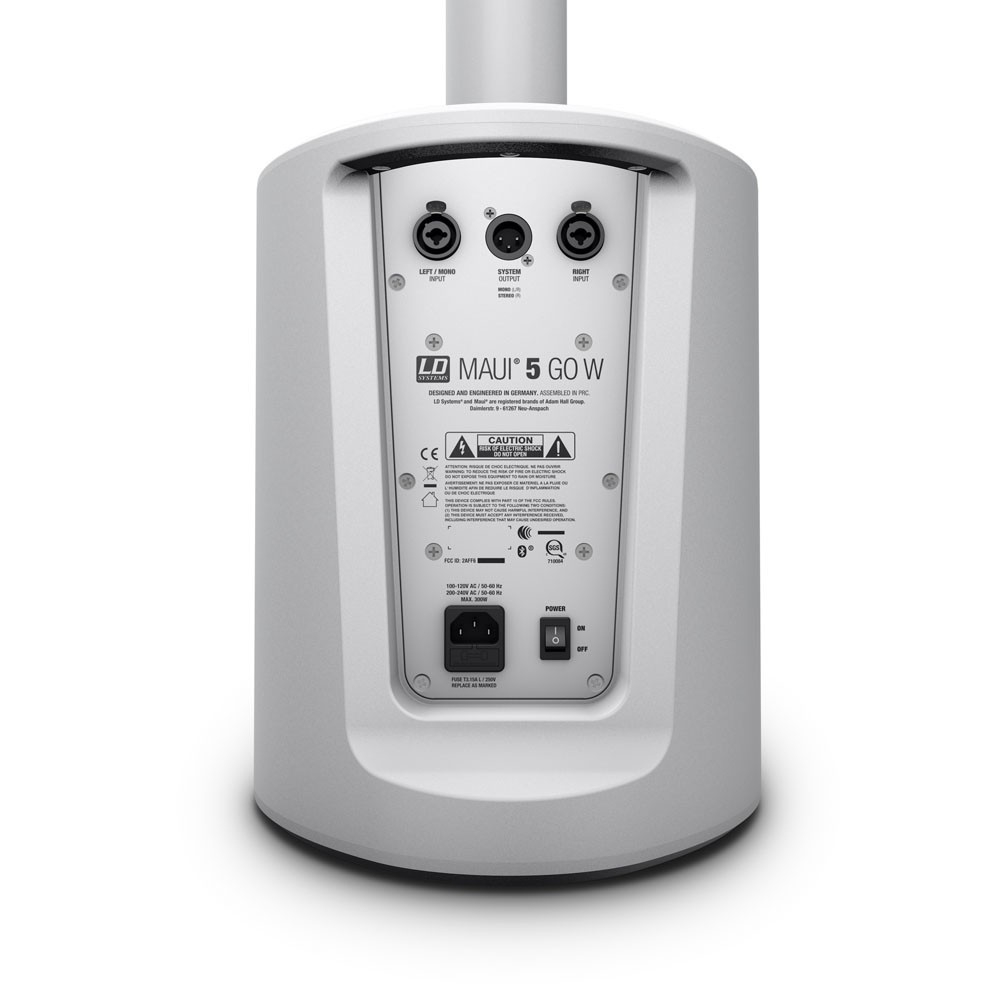

• Operating voltage: 100 V AC - 120 V AC, 50 - 60 Hz, 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion)
• Power consumption: 300 W
• Line inputs: 2 x stereo
• Line input connectors: 6.3 mm jack, XLR
• Mic inputs: 1
• Mic inputs: 6.3 mm jack, XLR
• MP3 inputs: 1
• MP3 input connectors: 3.5 mm jack
• Hi-Z inputs: 1
• Hi-Z input connectors: 6.3 mm jack
• Loudspeaker outputs: 1
• Speaker output connections: Custom-made multipin

DSP characteristics

• Bit depth AD/DA converter: 24 / 24 bit
• Internal sampling frequency: 48 kHz
