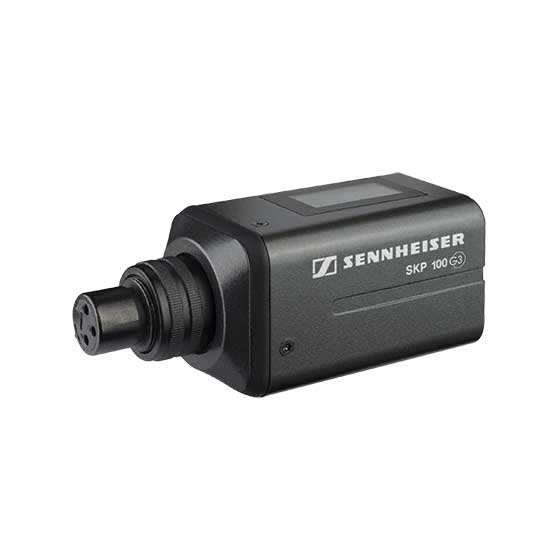

Sennheiser SKP 100 G3 plug-on transmitter

Sennheiser SKP 100 G3

The SKP 100 G3 adapts G3 wireless technology to a wired world. Imagine taking a wired microphone and turning it into a wireless simply by plugging in the SKP 100 G3 to it�s XLR port. Maybe you would like to send a signal from a mixing console to a Sennheiser evolution G3 receiver across the room? No problem. Featuring G3 upgrades such as wireless transmitter sync and easy-to-navigate menus, the SKP 100 G3 is ready to literally plug in and play.

Features:

• Sturdy metal housing
• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
• Enhanced frequency bank system with up to 12 compatible frequencies
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• Increased range for audio sensitivity
• Wireless synchronization of transmitters via infrared interface from receiver
• User-friendly menu operation with more control options
• Illuminated graphic display
• Auto-Lock function avoids accidental changing of settings
• HDX compander for crystal-clear sound
• Transmitter features battery indicatation in 4 steps, also shown on receiver display
• Programmable Mute function
• Wide range of accessories adapts the system to any requirement
• Frequency range 516 - 558 MHz

Specifications:

• Frequency range:
- 606...648 MHz
- 823...865 MHz / Germany
- 823...865 MHz
- 780...822 MHz / Germany
- 780...822 MHz
- 734...776 MHz
- 626...668 MHz
- 566...608 MHz
- 516...558 MHz
• Dimensions: 105 x 43 x 43 mm
• Frequency response (Microphone): 80 - 18000 Hz
• Compander: HDX
• Presets: 20
• THD, total harmonic distortion: < 0,9 %
• Weight: 195 g
• Signal-to-noise ratio: > 110 dB(A)
• RF frequency range: 516 - 865 MHz
• RF output power: 30 mW
• Transmission/receiving frequencies: 1680
• Switching bandwidth: 42 MHz
• Peak deviation: +/- 48 kHz
• In compliance with: ETS 300422 , ETS 300445 , CE , FCC
• Operating time: > 8 h
• Input voltage range max. :3,0V eff
