Roland GR-55 GK guitar synthesizer

Roland GR-55 GK

The Roland GR-55 is a revolution in guitar synthesis, with features never before available in any guitar processor. The GR-55’s powerful triple-core engine comprises two PCM synthesizers (with over 900 tones powered by the latest Roland synthesis technology) and COSM guitar modeling, featuring a virtual treasure trove of guitar, bass, amp, and synth models. Together, these combined technologies allow you to create unique, revolutionary sounds.
The GR-55 is far and away the fastest guitar synth ever. Furthermore, the COSM guitar-modeling engine needs zero detection time, allowing the GR-55 to respond instantly and exactly as you play.
The GR-55 is powerful yet extremely friendly. For customizing sounds, the EZ Edit feature (made famous in the GT-10) and large LCD takes the guesswork out of the process.
The GR-55 conveniently bridges the guitarist to the desktop music production world with its two USB ports. The rear-panel port can be used one for MIDI/Audio data communication; the side-panel port is dedicated to real-time playback of audio files from a USB memory device (sold separately).


Specification:

• A revolutionary fusion of guitar synthesis and powerful COSM guitar modeling
• Up to four sound sources at a time: two PCM synth tones, plus COSM guitar modeling and normal guitar input
• Easy to use and easy to play with hundreds of great, ready-to-use sounds for rock or pop guitarists
• Advanced Roland technology provides superb sound quality and lightning-fast processing
• Over 900 of Roland’s latest fully editable PCM sounds, including pianos, organs, strings, vintage synths, and much more
• COSM guitar and amp modeling
• Two types of multi-effects engines, plus global reverb, chorus, and delay effects, and an onboard looper
• Built-in USB audio player with foot control

• Sound Generator:
- PCM: 2 tones
- Modeling: 1 tone
• Tones:
- PCM: 910 types
- Modeling: 23 types (guitar mode)
- 17 types (bass mode)
• Effects:
- MFX (Multi-Effects): 20 types
- AMP (Preamp): 42 types
- MOD (Modulation): 14 types
- DELAY: 7 types
- REVERB: 5 types
- CHORUS: 4 types
- EQ: 1 type
• Patch Memory:
- Guitar mode
- Preset: 270 + User: 297
- Bass mode
- Preset: 90 + User: 297
• AD Conversion:
- 24-bit (GK Pickup)
- 24-bit + AF method (Normal Pickup)
• DA Conversion: 24-bit
• Sampling Frequency: 44.1 kHz
• Nominal Output Level:
- OUTPUT jacks: -10 dBu
- GUITAR OUT jack: -10 dBu
• Output Impedance:
- OUTPUT jacks: 2 k ohms
- GUITAR OUT jack: 2 k ohms
• USB Memory Audio Player: File Format: WAV, AIFF
• Display: Graphic LCD 240 x 64 dots

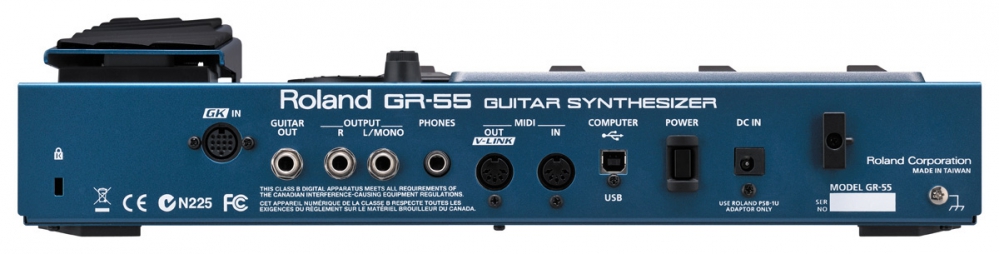

• Connectors:
- GK IN connector (13 pins DIN type)
- GUITAR OUT jack (1/4-inch phone type)
- OUTPUT L/MONO, R jacks (1/4-inch phone type)
- PHONES jack (Stereo 1/4-inch phone type)
- MIDI connectors (IN, OUT) (5-pin DIN type)
- USB COMPUTER connector (supports Hi-Speed USB, USB MIDI and USB Audio)
- USB MEMORY connector (supports Hi-Speed USB Flash Memory)
- DC IN jack
• Power Supply: DC 9 V
• Current Draw: 700 mA
• Accessories:
- AC adaptor
- Owner's manual
- Divided pickup (GK-3) (only for GK included model)
- GK cable (5 m) (only for GK included model)
• Options (sold separately):
- Divided pickup: GK-3 (for guitar), GK-3B (for bass guitar)
- GK cable: GKC-5 (5 m), GKC-10 (10 m)
- MIDI foot controller: FC-300
- Unit selector: US-20
