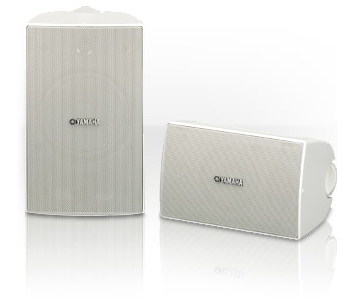

Yamaha VS4W Speakers for Commercial Installations (pair)

Yamaha VS4W

A superb blend of aesthetic simplicity and functional sophistication, the VS Series delivers high quality sounds in a variety of indoor and outdoor settings, particularly locations where interior design is a consideration. Let the VS Series be the perfect complement to your sonic needs.

• Compact surface mount speakers with superior sound quality and sleek, functional design.
• Waterproof construction meeting the IEC60529 IPX3 rating requirements for outdoor usage.
• Internally mounted transformers allowing operation in 70V or 100V distributed sound systems.
• Dedicated, color-matched steel U-bracket enclosed for horizontal or vertical installation.
• Paintable enclosure and grill to match any decor.
• Overload protection circuit provided to protect speaker components.
• 4" cone woofer with a 1" balanced dome tweeter.

SPECIFICATIONS

• Frequency range (-10dB): 100Hz - 20kHz
• Nominal coverage
- H: 110
- V: 110
• Components
- LF: 4"(100mm) cone driver
- HF: 1"(25mm) balanced dome tweeter
• Crossover: 15kHz
• Power rating NOISE: 15W
• PGM: 30W
• PEAK: 60W
• Nominal impedance: 8Ω
• Transformer taps:
- 100V: 15W, 7.5W, 3.8W
- 70V: 15W, 7.5W, 3.8W, 1.9W
• SPL: Sensitivity (1W; 1m on axis) 88dB SPL
• Peak (Calculated): 106dB SPL (60W)
• I/O connectors: 2 pairs of barrier strip (parallel-wired *Screw size: M3, Terminal Space: 6mm)
• Shape: Rectangular
• Cabinet material: HIPS, 94-HB
• Finish: White
• Flying and mounting hardware: U-bracket (4 x Φ5.5mm and 2 x Φ11mm holes)
• Waterproof: IEC60529 IPX3 splash proof rating
• Dimensions
- W: 152 mm (6")
- H: 243 mm (9 9/16")
- D: 172 mm (6 3/4")
- Net weight: 1.9kg (4.2lbs)
• Accessories: U-bracket, Owner's Manual, Retaining knob, Terminal cover, Terminal cover screw
