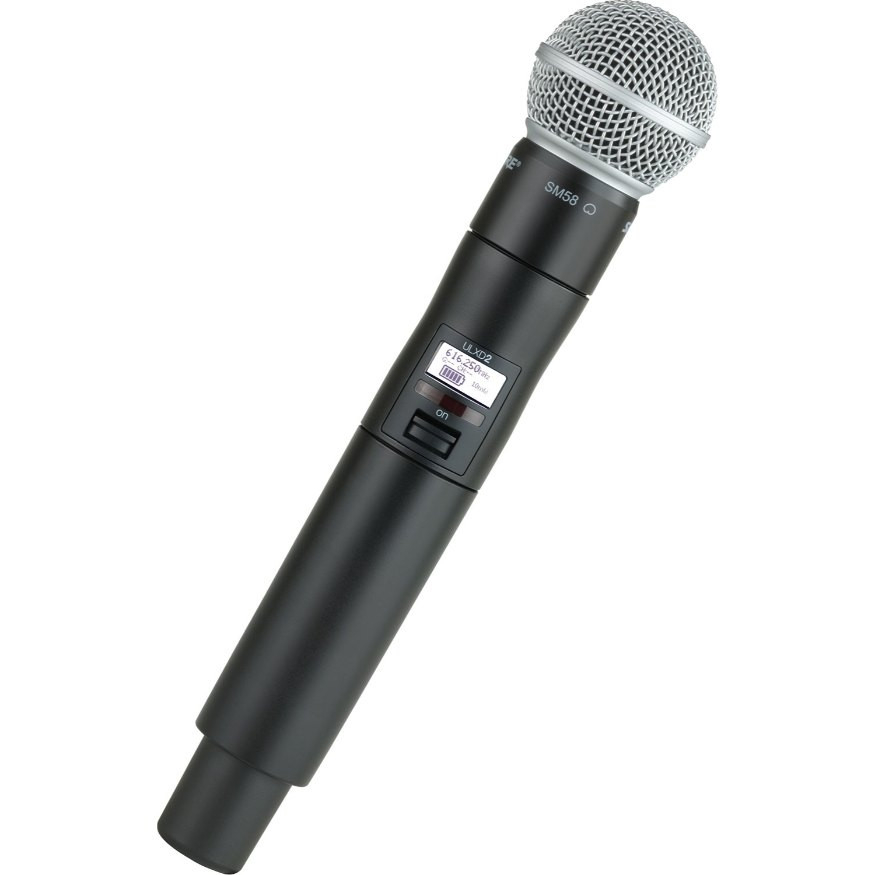

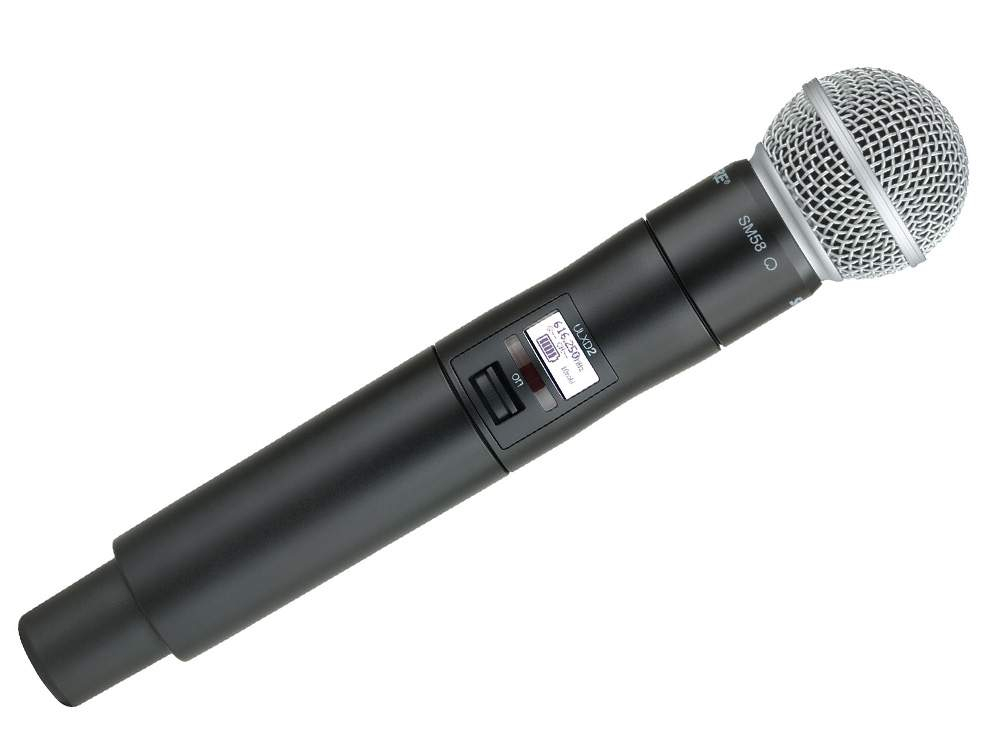

Shure ULXD2/SM58 Digital hand transmitter with microphone SM58

Shure ULXD2/SM58

The ULXD2/SM58 Handheld Wireless Microphone Transmitter works with ULX-D Wireless Systems.

Features:

• AES 256-bit encryption for applications for which secure transmission is needed
• Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
• Optional Shure SB900A lithium-ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect
• External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
• Transmitter Mute Mode repurposes the On/Off switch into a mute switch, enabling audio muting while preserving RF channel presence
• Backlit LCD with easy to navigate menu and controls
• Rugged metal construction
• Frequency and power lockout

Specifications:

System:
• Wireless Transmission: Digital UHF
• RF Frequency Band: G50: 470 to 534 MHz
• RF Bandwidth: 64 MHz
• Frequency Step Size: 25 kHz
• RF Channel Scanning: Auto-Scan
• Max Operating Range: 328.1' / 100 m
• Sample Rate/Resolution: 48 kHz / 24-Bit
• Encryption: AES 256
• Modulation: Proprietary

Transmitter:
• Form Factor: Handheld
• RF Output Power 1 / 10 / 20 mW (Switchable)
• Audio I/O: None
• Muting: Off/On Switch
• Gain Range 0 to 21 dB (3 dB Steps)
• Sync Method: IR
• Antenna: 1 x Internal Single-Band Helical
• Power Requirements: Battery
• Battery Type: 2 x AA (Included), 1 x Shure SB900A (Not Included, Replaceable)
• Approx. Battery Life: Med.:
- 11 Hours (Alkaline)
- 12 Hours (Lithium Shure SB900A)
• Display & Indicators: 1 x Backlit LCD (Channel, Group, Mute, RF Output Power, Sync)
• Housing: Aluminum
• Operating Temperature: 0 to 122°F / -17 to 50°C
• Storage Temperature: -20 to 165°F / -28 to 73°C
• Dimensions: 10.1 x 2" / 256 x 51 mm
• Weigh: 12 oz / 340 g

Microphone:
• Form Factor: Handheld Capsule
• Sound Field: Mono
• Capsule: Dynamic
• Polar Pattern: Cardioid
• Frequency Range: 50 Hz to 15 kHz
• Sensitivit: -56 dBV/Pa
