Seymour Duncan Vapor Trail analag delay guitar effect pedal

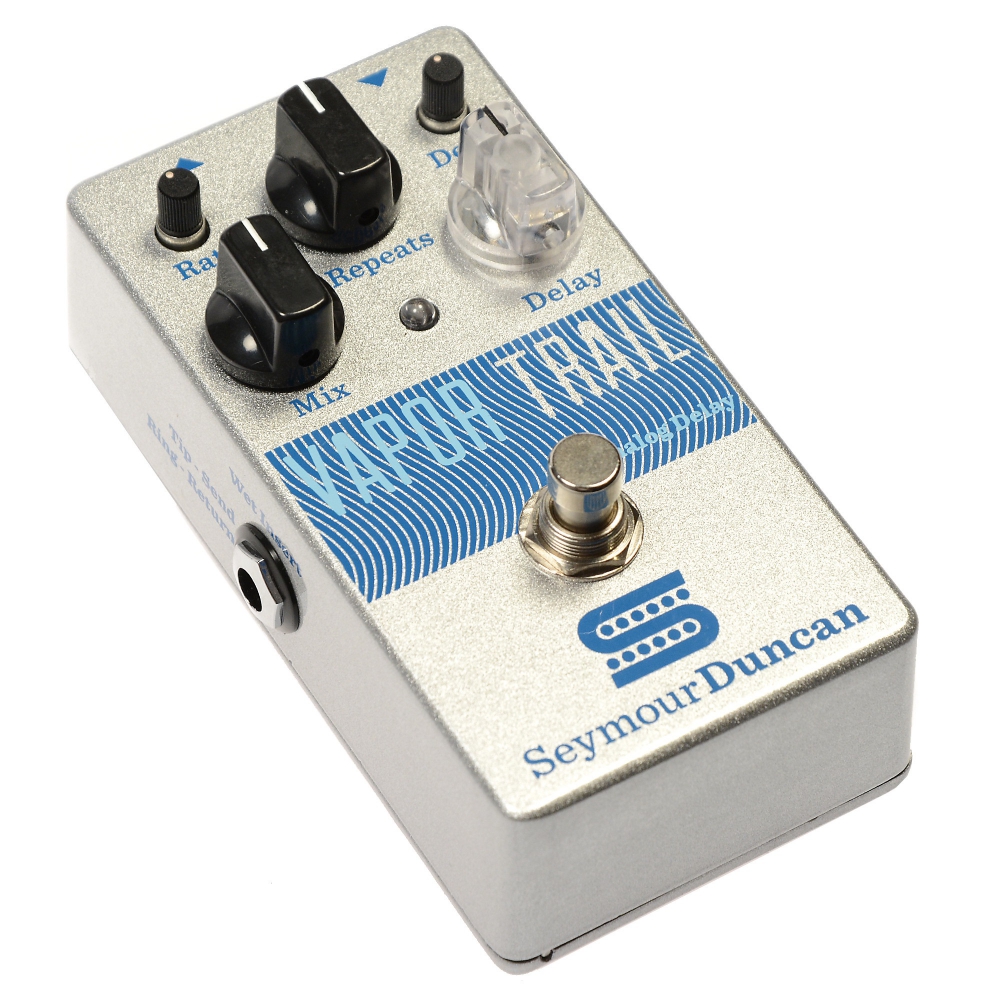

Seymour Duncan Vapor Trail

Vapor trail is a true analog delay pedal designed using the famed Bucket Brigade circuitry to provide authentic vintage tone with clarity, warmth and presence. Responsive modulation controls add shimmer and movement to your tone – with the Rate and Depth controls located on the top panel for easy access in live settings. From slap-back echo, ambient and long liquid delays to rotating speaker and long and liquid delays, Vapor Trail delivers a multitude of brilliant sounds. Vapor Trail also features a TRS insert that can send wet signal to any other pedal or effect, such as a flanger or chorus.

Specifications:

• Type of Circuitry: Analog Bucket Brigade Devices (BBDs) supported by modern low-noise analog electronics. No microprocessors or digital signal processors.
• Bypass: True bypass
• Delay Range: 15ms to 600ms. Actual delay time indicated by flash rate of illuminated delay time knob.
• Dry Gain: 1dB fixed
• Wet Gain: Adjustable from muted to +3dB. At the highest blend settings, the first echo is actually louder than the dry signal.
• Repeat Control Range: One repeat to runaway repeats
• Modulation Rate Range: 0.2Hz to 4 Hz
• Modulation Depth Range: Zero to "over the top"

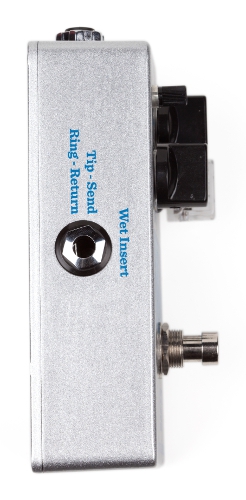

• Auxiliary Functions: Wet channel insert loop, allows external effects to be applied to only the wet signal. Also serves as a wet-only output for wet/dry stereo or studio use.
• Dry Frequency Response: <-1dB @ 10 Hz and 100 kHz
• Dry Distortion: 0.002% at 250 Hz, 1V RMS output
• Dry Noise Floor: -100dBv at output, 400Hz to 20kHz with input unplugged
• Wet Noise Floor: -90dBV at output, 400Hz to 20kHz
• Input Impedance: 1 Meg (active); open (bypassed)
• Output Impedance: 1K ohm

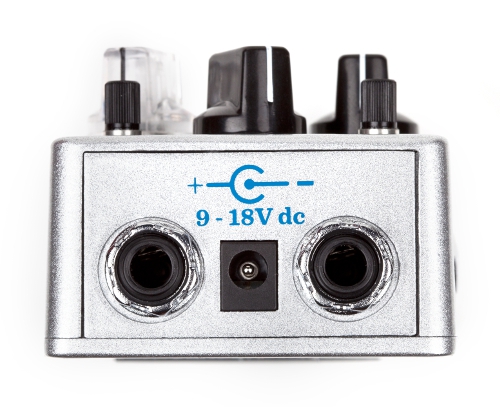

• Power supply: 9V (AC or battery)
• Dimensions: 36.8 x 66.29 x 124.46 mm
• Weight: 0.360 kg
